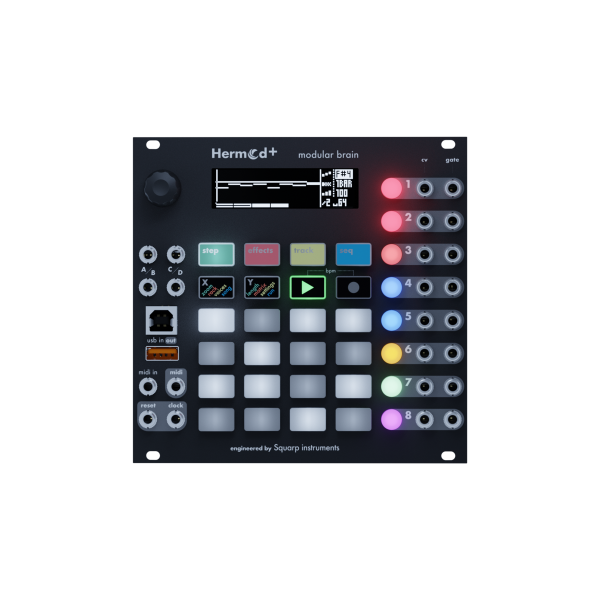

Squarp instruments HERMOD+
ABOUT THE PRODUCT
Hermod+ is an advanced sequencer for electronic music that maintains the format of its predecessor, Hermod, while introducing numerous improvements.
It allows the recording of CV/Gate, MIDI notes, and modulations on 16 polyphonic tracks.
FEATURES
Sequencer
Tracks: 8 CV/Gate + 8 MIDI
Patterns: 16 per track
Recording resolution: 96ppqn (5.2ms at 120 BPM)
Effects resolution: 384ppqn (1.3ms at 120 BPM)
Track length: from 1/16 of a note to 16 bars
Automations per pattern: CC modulation + pitchbend + aftertouch + sustain
Projects
Number of projects: unlimited
Tempo: from 10 to 280 BPM
Global transpose track: yes
Dual-project architecture: yes
Song length: 64 sequences
Piano roll
Minimum zoom: /4 (1 step = 1/4 of a note = 1 beat)
Maximum zoom: X8 (1 step = 1/128 of a note)
Note/Gate duration: from 1/32 (1/512 of a note) 8-bar
Maximum polyphony per step: 24 notes
Polyphonic editing: Yes
Timbre: C0 to C10
Velocity: 0 to 127
Sync rate
Maximum input rate: 1/96 = 24ppqn
Maximum output rate: 1/96 = 24ppqn
Audio sync from a DAW (sample-accurate)
Inputs
MIDI: TRS type A + USB host + USB device
CV: 4x [from -5V to +5V]
Outputs
MIDI: TRS (type A) + USB host + USB device
CV: 8x [from -5V to +5V]
GATE: 8x [0V / +5V]
Output standards: V/octave (Eurorack), 1.2V/octave (Buchla), Hz/V (old synths)
Clock port Dedicated
Dedicated clock reset port
Power supply
Note: Use of your Eurorack +5V rail is configurable with a switch on the back of the Hermod+.
Consumption (using the +5V rail): -12V 20mA, +12V 20mA, +5V 600mA (add up to +500mA when connecting a controller to the USB host).
Consumption (not using the +5V rail): -12V 20mA, +12V 300mA (add up to +220mA when connecting a controller to the USB host), +5V 0mA. Dimensions
Width: 26 HP
Depth: 20 mm
Weight: 285 g (0.63 lbs)
CV Input Resolution: 16-bit
CV Output Resolution: 16-bit
Display: 58 x 16 mm OLED
SD Card: High-speed microSD (included)
Processor: ARM 480 MHz
Euroguitar Reference : 116819
