Audio technica ATW-3255DF2
Audio-Technica's 3000 Series IEM system offers a professional wireless in-ear monitoring solution for musicians, technicians, and venues seeking a balance between cost, durability, and audio quality.

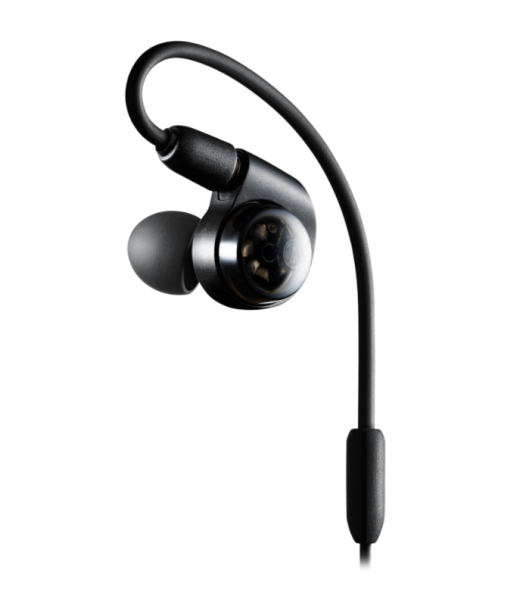

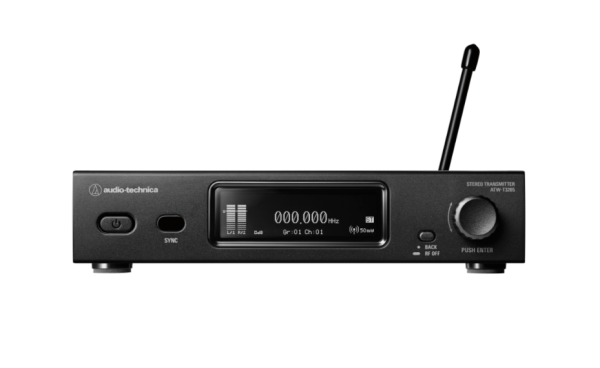

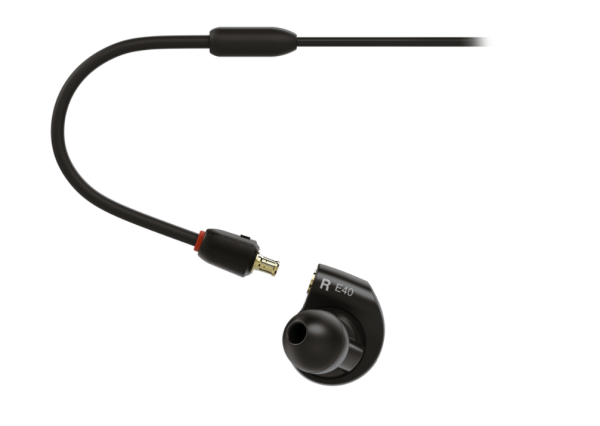

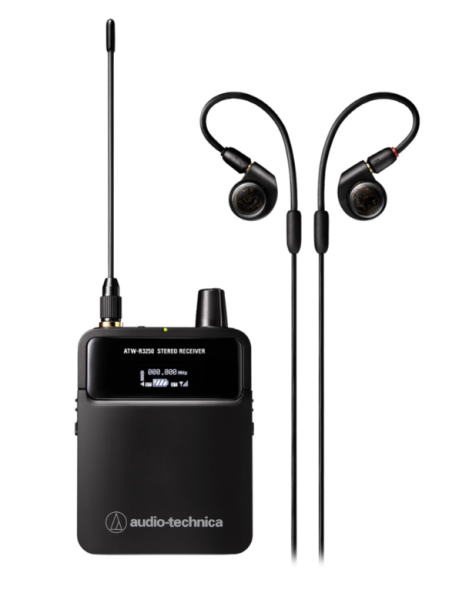

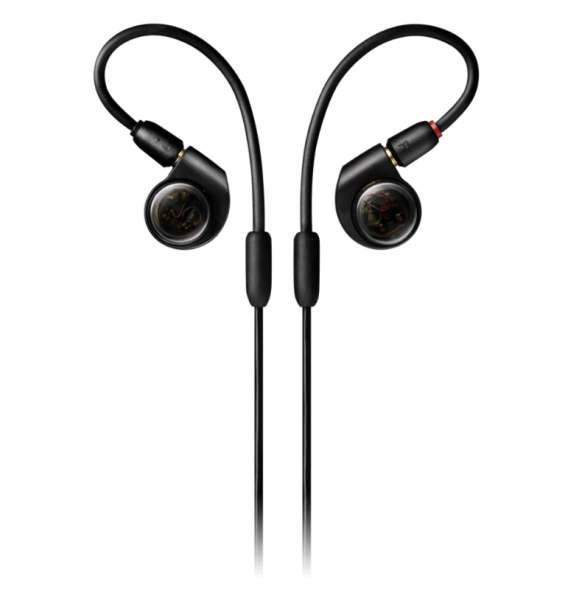

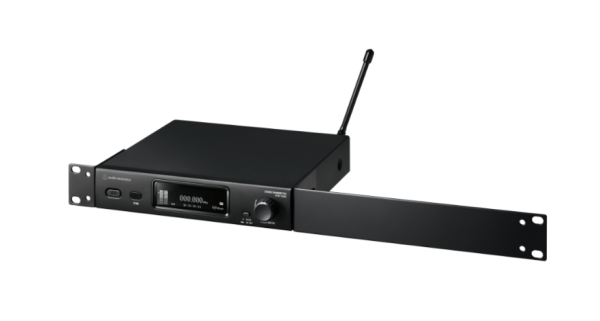

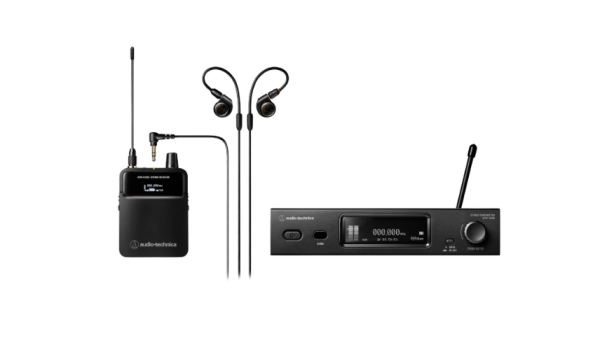

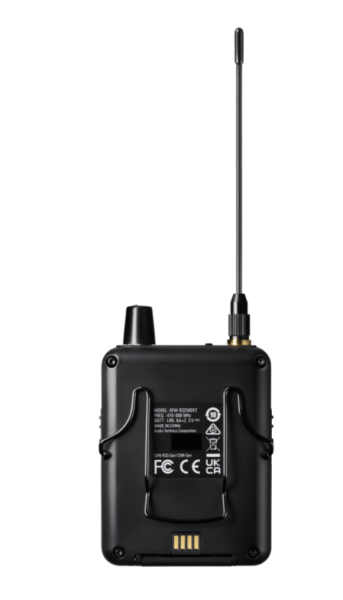

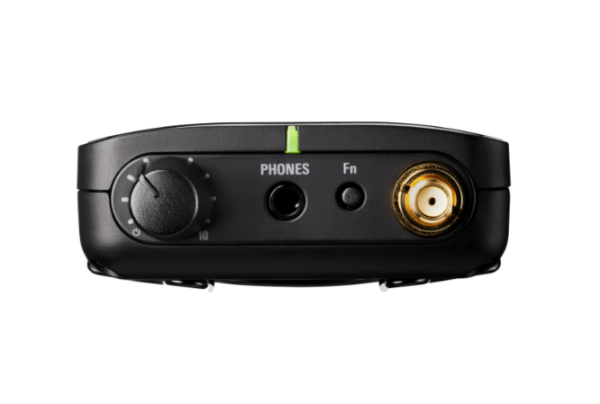

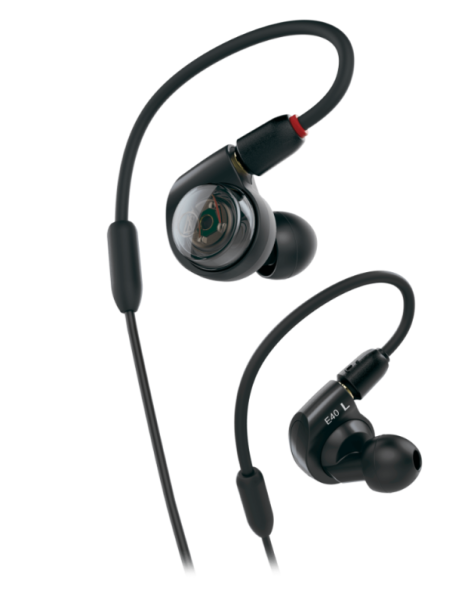

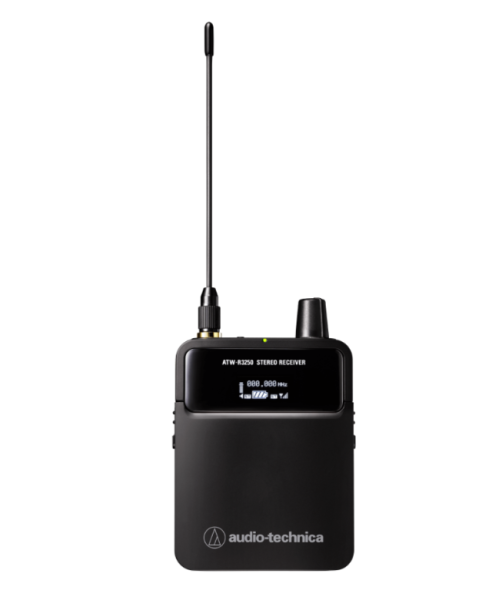

This system includes a rack-mount transmitter with an OLED display and front-panel controls, a portable bodypack receiver with an integrated headphone amplifier, and ATH-E40 in-ear monitors with dual-phase push-pull technology.
Highlights include:
Wide UHF tuning bandwidth (138 MHz) for greater frequency flexibility in dense RF environments.
Antenna diversity reception (with an audio cable serving as a secondary antenna) to ensure radio signal stability.
Network capabilities via Wireless Manager software to monitor, configure, and coordinate system frequencies.
CUE mode allows a sound engineer to monitor multiple IEM channels from a single receiver.
3000 Link mode ensures the monitoring system's compatibility with other 3000 Series wireless devices.
Onboard audio controls: equalization (bass/treble), limiter, gain, balance.
Ability to operate in stereo or mono mode with pan/mix control customized for each user.

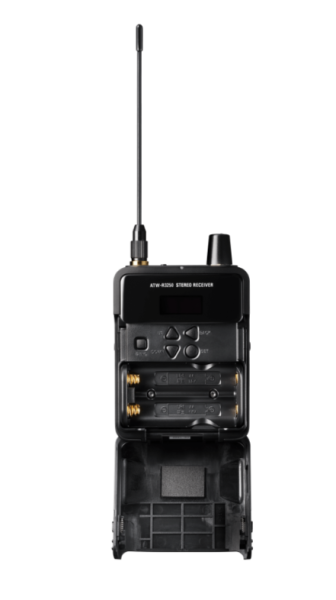

Up to 7 hours of battery life for the receiver with NiMH batteries, charging via ATW-CHG3/CHG3N docks (sold separately).
In practical use, user tests report that the system is reliable, stable, with dropout-free transmissions, and provides excellent audio clarity for stage monitors.
DF2: 470.125 to 607.875 MHz
EG2: 580.000 to 713.850 MHz
Number of channels per band:
49 channels per band
Transmitter power:
High: 50 mW
Low: 10 mW (switchable)
Audio inputs (transmitter):
2 x 6.3 mm TRS (Tip = hot, Ring = cold, Sleeve = ground)
Power supply (transmitter):
100–240 V AC ? 12 V DC / 1 A (mains power)
Antennas:
Flexible UHF antennas + audio cable as secondary antenna
EQ range (receiver / transmitter):
Bass: 80 Hz / 160 Hz / 320 Hz ±9 dB (steps of 3 dB)
Treble: 6 kHz / 8 kHz / 10 kHz ±9 dB (3 dB steps)
Limiter:
Switchable from –30 dB to OFF (0 dB), in 6 dB increments
Operating Temperature:
–5°C to +45°C (battery performance may be reduced at extreme temperatures)
Receiver Battery Life:
Alkaline: 4 to 6 hours
NiMH (1900 mAh): 5 to 7 hours
Lithium: 11 to 13 hours (varies depending on volume, usage, and conditions)
Charging Compatibility:
ATW-CHG3 / CHG3N stations (sold separately)
Weight and Dimensions:
Not specified in the public documentation
Note:
The audio output cable can be used as a secondary antenna to improve RF stability
