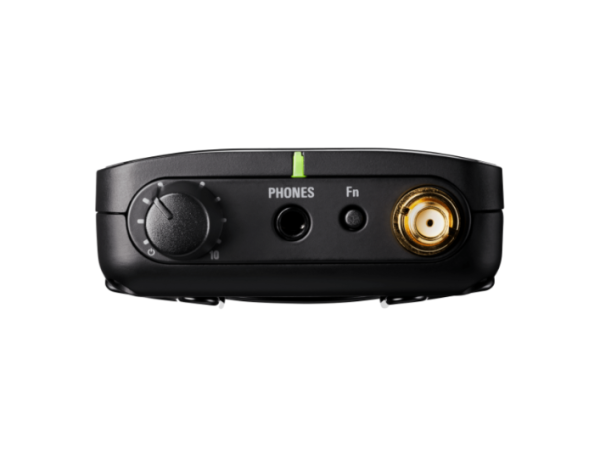

Audio technica ATW-R3250DF2

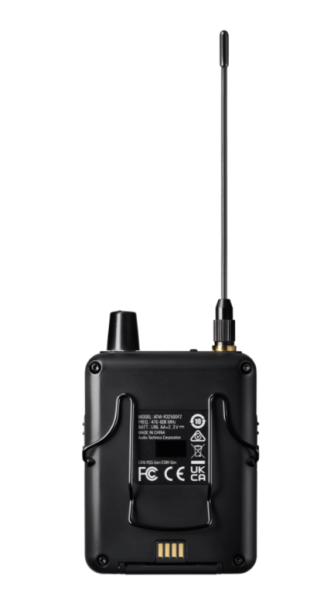

The Audio-Technica ATW-R3250 is a professional bodypack receiver designed for the 3000 Series wireless in-ear monitoring systems. Ideal for musicians, vocalists, and sound engineers, it offers clear, stable, and flexible audio transmission, even in the most congested RF environments.
The receiver features a wide UHF tuning bandwidth (138 MHz), ensuring maximum compatibility with various environments and regulations. Its internal electronics incorporate a powerful DSP to ensure natural and accurate sound reproduction with clear stereo separation.
The ATW-R3250 operates in stereo, mono, or mono mix mode, allowing for personalized panning and personal mix control. Its antenna diversity system maintains reliable reception, with the headphone cable also serving as a second antenna for improved signal stability.
The device incorporates an equalizer, limiter, level lock, and other advanced audio management features. The Cue Mode feature allows a sound engineer to monitor multiple mixing channels from a single receiver, a major advantage for professional applications.

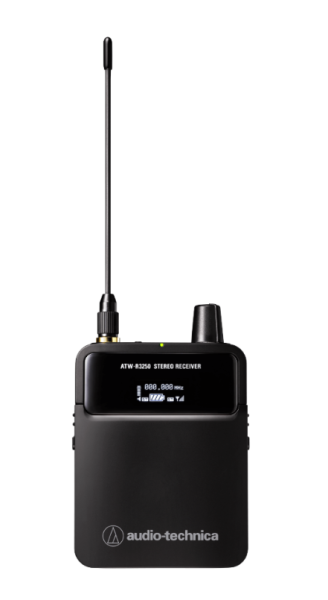

A clear OLED display shows essential information and facilitates on-stage adjustments. The receiver operates on batteries or rechargeable batteries, with a battery life of up to 7 hours depending on the power supply. It comes with ATH-E40 in-ear headphones, ensuring high-quality listening.
Designed for stage environments, studios, or houses of worship, the ATW-R3250 combines robustness, ergonomics, and high-level sound performance.
Frequency Range: 470.125 to 607.875 MHz
Tuning Bandwidth: 138 MHz
Frequency Steps: 25 kHz
Modulation: FM
Deviation: ±34 kHz nominal / ±45 kHz peak
Image Rejection: > 80 dB
RF Sensitivity: 20 dBµV at 60 dB(A) S/N (50 Ω)
Stereo Separation: 75 dB
Torque Harmonic Distortion (THD): < 0.2% (1 kHz, +4 dBu)
Audio Frequency Response: 40 Hz – 14,100 Hz
RFI Power of Associated Transmitter: 10 mW / 50 mW (switchable)
Audio Modes: Stereo, Mono, Mixed Mono, Dual Mono
Audio Output: 3.5 mm TRS mini-jack (stereo)
Headphone Output Power: 40 mW (12 Ω)
Antenna: Antenna Diversity (the audio cable acts as a secondary antenna)
Built-in Equalizer:
Bass: 80 / 160 / 320 Hz
Treble: 6 / 8 / 10 kHz
Adjustment: ±9 dB
Limiter: Adjustable (–30 dB to OFF)
Lock: Automatic Lock (Lock)
Special Function: Cue Mode (multiple channel monitoring)

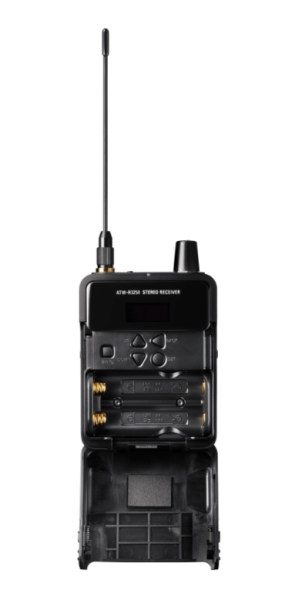

Battery Life:
4 to 6 hours with alkaline batteries
5 to 7 hours with NiMH batteries (1900 mAh)
11 to 13 hours with lithium batteries
Operating Temperature: –5 °C to +45 °C
Dimensions (L × W × H): 64 × 23 × 82 mm
Weight (without battery): 102 g

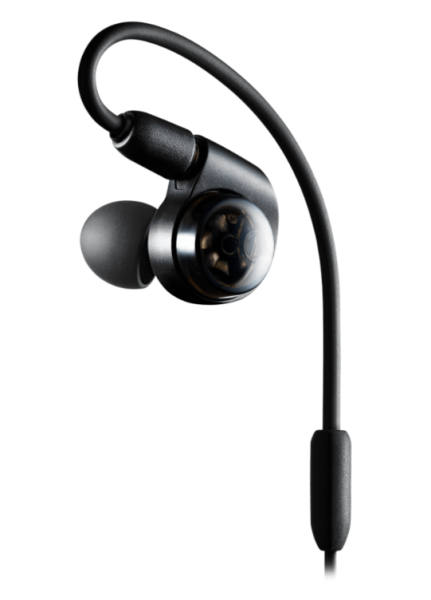

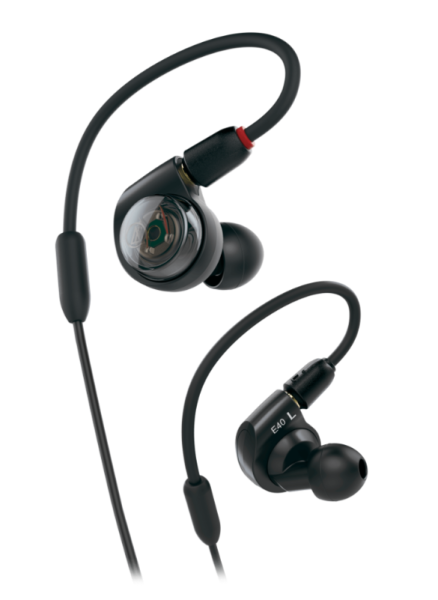

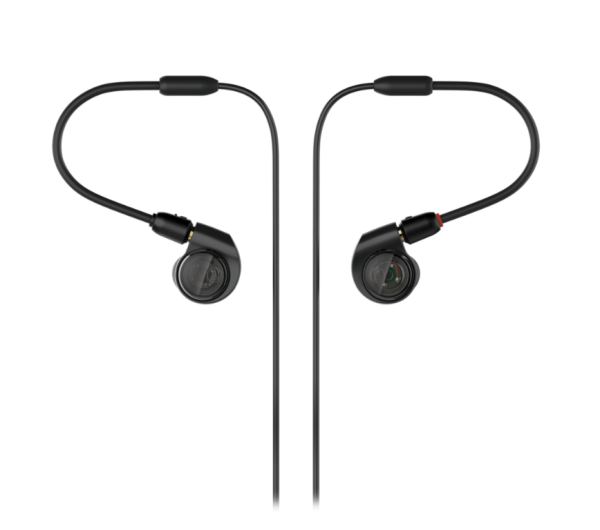

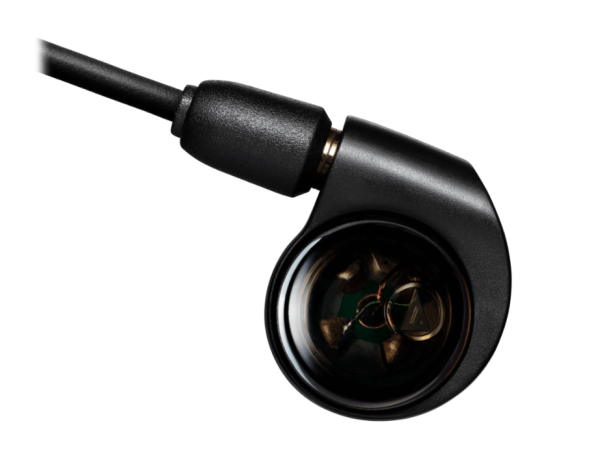

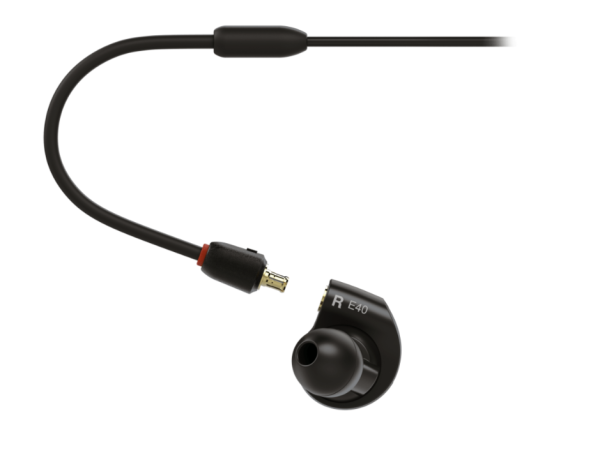

Headphones included: ATH-E40 (professional in-ear headphones)
Operating range: Approx. 90 m (line of sight)
Simultaneous channels possible: Up to 49 depending on RF conditions
