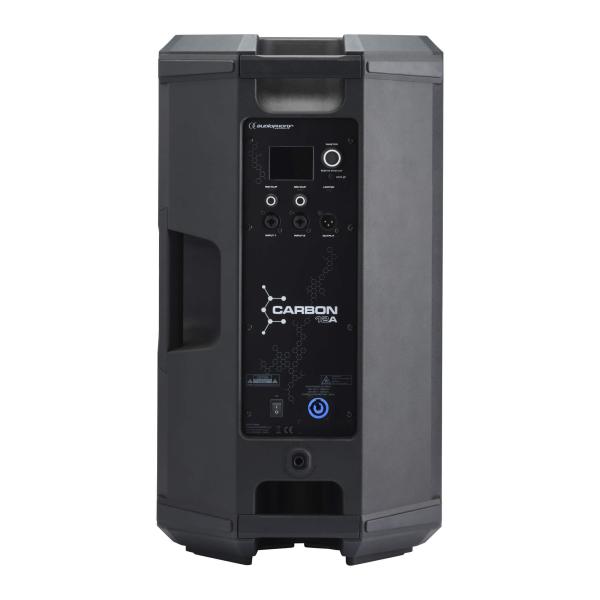

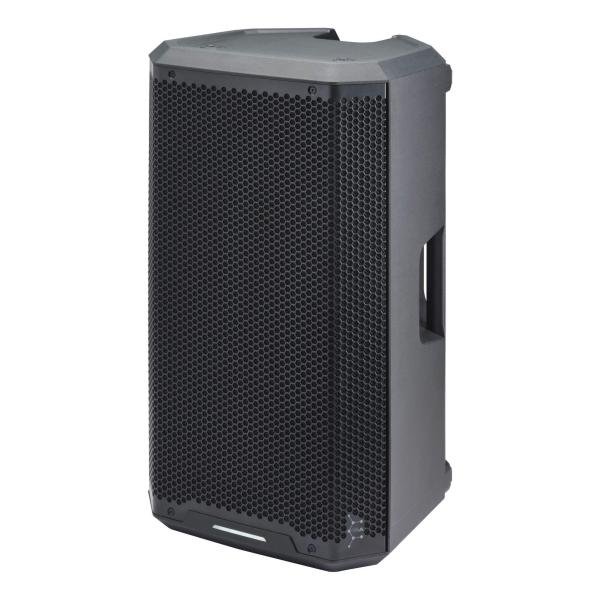

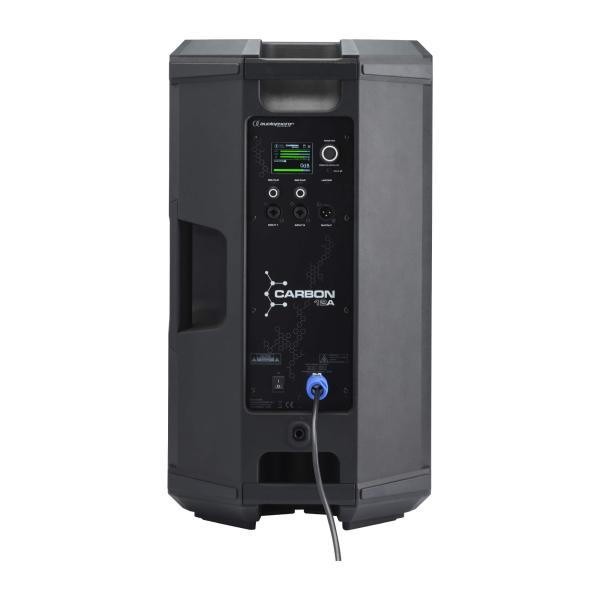

Audiophony CARBON12A
The Audiophony CARBON12A is a 12-inch, 2-way active speaker designed for live performances, DJs, fixed installations, and event production. Its 1500 W RMS Class D amplification provides significant headroom while maintaining a compact, lightweight form factor.
Equipped with a 12" woofer and a 1.35" compression driver featuring a polymer diaphragm, it delivers punchy bass and precise highs that are clearer and more transparent than those produced by traditional titanium-diaphragm drivers.
Its built-in DSP, featuring a 2.4" color screen, offers quick access to playback modes (Normal, Live, Club, Speech) as well as settings for EQ, delay, high-pass filtering (HPF), and ducking. System management can also be handled remotely via the CARBONcontrol app (iOS/Android), making it ideal for controlling multiple speakers simultaneously.
Connectivity options include two XLR/Jack combo inputs with automatic Line/Mic switching, Bluetooth connectivity with True Wireless Stereo (TWS) functionality, and an XLR output configurable for Mix or Link modes.
Its nitrogen-assisted injection-molded plastic cabinet enhances rigidity and durability while keeping weight low. The asymmetrical design also allows for use as a stage monitor.
Configuration: 2-way active bass-reflex speaker
Woofer: 12"
Voice coil: 2.5"
Impedance: 2 Ω
AES power: 500 W
Program power: 1000 W
HF driver: 1.35" with polymer diaphragm
Impedance: 4 Ω
AES power: 50 W
Amplification
Class D
Low frequencies: 1000 W RMS
High frequencies: 500 W RMS
Total power: 1500 W RMS / 3000 W peak
Audio performance
Frequency response: 50 Hz – 20 kHz
Max SPL: 130 dB
Dispersion: 90° × 70°
DSP
2.4" color display
Modes:
Normal
Live
Club
Speech
Positions:
Stand
Monitor
Bracket
Settings:
EQ
Bass
Treble
Delay
HPF
Ducking
Live / Vocal / Custom presets
Front LED control
Factory reset
Connectivity
Inputs
2 x XLR/Jack Combo Line/Mic (automatic switching)
Bluetooth
Outputs
1 x XLR Link / Mix
Bluetooth TWS
Control
CARBONcontrol app (iOS / Android)
Control up to 4 speakers
Scene management, PEQ, delay, position, and configuration
Construction
Nitrogen-assisted injection-molded plastic cabinet
Full metal grille
Asymmetrical shape for stage monitor use
3 carrying handles
3 x M10 rigging points
36 mm pole mount
Front Power / Limit LED
Protections
Limiter
Thermal protection
Short-circuit protection
Power supply
220–240 V AC – 50 Hz
Switching Mode Power Supply (SMPS)
1.80 m Seetronic power cord
Dimensions & weight
Dimensions: 360 × 353 × 628 mm
Weight: 17 kg
Euroguitar Reference : 117098
