Audiophony Myos08A
The Audiophony MYOS08A is an 8-inch active PA speaker, delivering 700 W RMS thanks to a bi-amplified power module (350 W for the lows, 350 W for the highs). Constructed from 15 mm plywood and coated with a scratch-resistant Polyurea paint, it is designed for demanding applications: DJs, events, concerts, and fixed installations.
Its advanced DSP allows for easy adaptation of the sound reproduction to each configuration (monitor, front-of-house, on a stand, with or without a subwoofer). Its high power, controlled directivity, and numerous mounting points make it a compact yet professional speaker, ideal for sound engineers and demanding small venues.
8? active speaker with integrated 700 W RMS / 1400 W max amplification
Bi-amplification:
Class D: 350 W RMS for the lows
Class AB: 350 W RMS for the highs
Integrated DSP with presets and advanced settings (position, mode, equalizer, LED management, reset, info)
Wood finish: reinforced 15 mm plywood cabinet, band-pass system
Textured anti-scratch Polyurea paint for high resistance to intensive use
Full metal grille and Power/Clip LED on the front panel
Double 36 mm pole mount socket (0° and 7.5°) for stand mounting
10 M8 inserts and possibility of suspension bracket (MYOS08sup accessory)

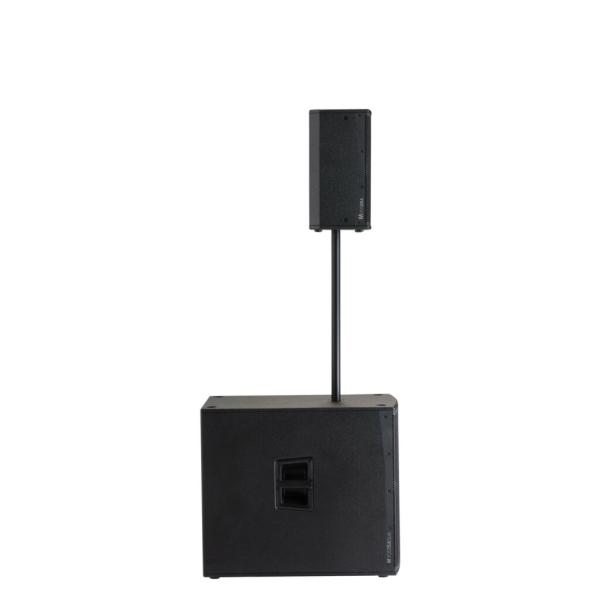

Compatible with COV-Myos8 cover and Myos15ASub subwoofer
Total amplifier power: 700 W RMS / 1400 W max
Frequency response: 70 Hz – 20 kHz
Max SPL (@1 m): 124 dB
Dispersion (H x V): 54° x 71°
Crossover frequency: 1600 Hz

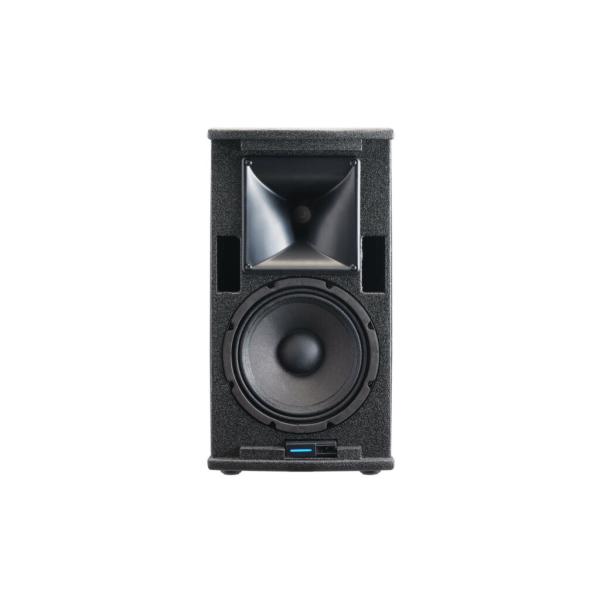

Speakers
Woofer:
Diameter: 8 inches
Voice coil: 1.5 inches
Magnet: 33 Oz
Impedance: 4 Ω
Power: 250 W AES
Tweeter:
Driver: 1.35 inches
Impedance: 8 Ω
Power: 50 W AES
Amplification and Power Supply
Type: Bi-amplification (Class D + Class AB)
Power supply: 220–240 V AC, 50 Hz, SMPS switching power supply
DSP and Settings
Input volume
DSP with multiple setting menus:
Position
Mode
Equalizer
LED
Reset
Info

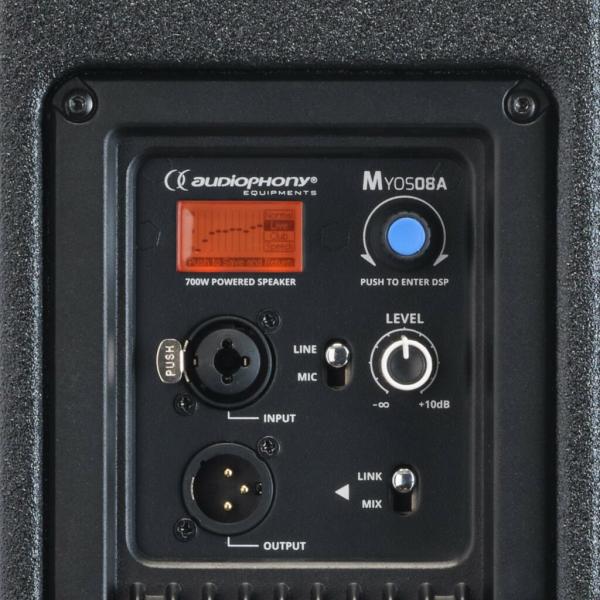

Connectivity
Input:
1 MIC/LINE input on XLR/Jack combo connector
MIC/LINE selector
Output:
1 line output on XLR
Link/Mix selector
Protections
Short-circuit protection
Thermal protection
Integrated limiter
Construction, Mounting and Ergonomics
Cabinet: 15 mm plywood, reinforced bandpass system
Finish: Textured anti-scratch Polyurea paint
Grille: Full metal grille
Front panel Power/Clip LED
1 wooden handle on top
10 M8 inserts for mounting/suspension
Dual 36 mm pole mount (0° and 7.5°)
4 rubber feet on the bottom
Dimensions and Weight
Dimensions (H x W x D): 465 x 249 x 240 mm
Net weight: 11 kg
