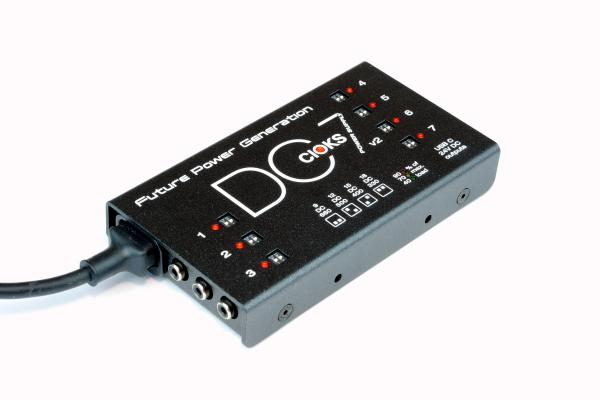

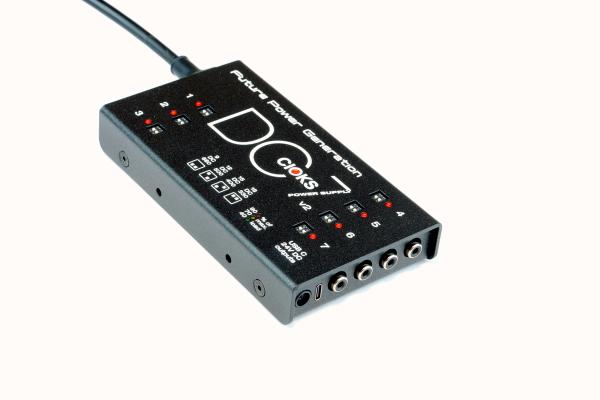

Cioks DC7 V2
The DC7 v2 is the latest version of the famous DC7, which quickly became the new industry standard for powering effects pedals after its launch in 2018. It remains the slimmest and most flexible power supply on the market. It has now been updated with a USB-C output that delivers three times more power than the previous USB-A output (15 watts instead of 5 watts). The DC7 v2 has also been optimized to operate more efficiently—and therefore run cooler—than the original DC7, while still delivering enough power to light up a small sun!
Just 2.54 cm thick and weighing 500 grams, the DC7 v2 uses advanced two-stage switching power supply technology to deliver up to 48 watts across 9 outputs. It features 7 isolated DC outputs, each offering 4 selectable voltages and up to 6 watts of power at 660 mA at 9 volts per output, as well as a 24-volt auxiliary output. This allows the DC7 v2 to effortlessly power multiple high-draw pedals and devices, such as the Line 6 HX series or the Neural DSP Quad Cortex lineup, without noise or operational issues.
The DC7 v2 can be expanded with the CIOKS 4, CIOKS 8, and Crux power supplies (as well as other compatible 24-volt-powered products) to provide additional isolated outputs and even greater flexibility.
- Two-stage switching power supply architecture
- Ultra-low noise thanks to multi-stage filtering
- 7 isolated DC outputs, 6 Watts each
- 660 mA at 9 Volts DC on each output
- 4 selectable voltages per output: 9, 12, 15, and 18 V
- 5-volt USB-C output up to 3 A
- 24-volt DC auxiliary output up to 2 A
- Individual power limit LED indicator on each output
- Built-in true wattmeter displaying total load
- General overload indicator LED
- Universal AC input: 100 to 240 Volts AC
- Maximum total output power: 48 Watts
- Mounting hardware included for Pedaltrain and Temple Audio pedalboards
- Compatible with the CIOKS GRIP system for drill-free mounting on Pedaltrain pedalboards
- 12 Flex adapters included
- Expandable with the CIOKS 4 Expander, CIOKS 8 Expander, CIOKS Crux, and other compatible 24-volt products to add isolated outputs
- Weight: 500 g
- Designed in Denmark, assembled in Poland
- 5-year worldwide warranty
- Euroguitar Reference : 123886
