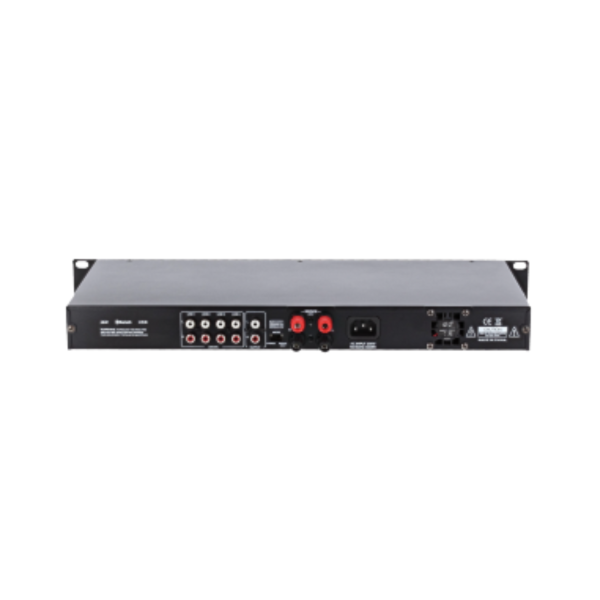

Definitive audio Media Amp One
ABOUT THE PRODUCT
The Definitive Audio is a Bluetooth MP3 multimedia player.
Ideal MP3/Bluetooth multimedia player for quick and easy installation.
It can be used in places such as fitness centres, restaurants, shops.
It allows you to connect Sd cards, USB sticks, Bluetooth reception and has a 2 x 200W amplification under 8 Ohms to power several speakers.
FEATURES
- Amplified MP3 Multimedia Player
- Amplification: 2x200W/8Ohm - 2x300W/4Ohm - 1x600W/8Ohm
- Can be used in line 100V on Bridge position (See operating instructions)
- Output impedance: 4 - 16 Ohms
- Input impedance: 10kHz (unbalanced)
- Frequency response: 20 - 20 KHz (+/- 0.5 dB)
- Distortion: (THD) <0.1% (1KHz)
- Signal-to-noise ratio: Ratio <100 dB
- Protections: soft start protection, DC, VHF, AC, short circuit, limiter and overheating
- Connectivity: SD/SDHC cards up to 32 GB (not included and in FAT32 format), USB 2.0 keys, Bluetooth
- Memory capacity: 1000 MP3 tracks on a 1GB SD card (128 bit)
- LCD display screen
- Searching for audio tracks
- Displaying the duration of audio tracks
- 4 RCA line inputs
- 1 mini jack 3.5 cm phone input on the front panel
- 1 Combo microphone input on the front panel
- RCA outputs x 2
- Unbalanced 6.35 mm jack outputs x 2
- Balanced XLR outputs x 2
- Overall volume
- Bass and treble correction
- Microphone bass and treble corrections
- Voltage: 115V or 230V, 50/60Hz
- Dimensions (W x D x H): 245 x 45 x 250 mm
- Weight: 2,1Kg
- Euroguitar Reference : 86538
- Amplification: 2x200W/8Ohm - 2x300W/4Ohm - 1x600W/8Ohm
- Can be used in line 100V on Bridge position (See operating instructions)
- Output impedance: 4 - 16 Ohms
- Input impedance: 10kHz (unbalanced)
- Frequency response: 20 - 20 KHz (+/- 0.5 dB)
- Distortion: (THD) <0.1% (1KHz)
- Signal-to-noise ratio: Ratio <100 dB
- Protections: soft start protection, DC, VHF, AC, short circuit, limiter and overheating
- Connectivity: SD/SDHC cards up to 32 GB (not included and in FAT32 format), USB 2.0 keys, Bluetooth
- Memory capacity: 1000 MP3 tracks on a 1GB SD card (128 bit)
- LCD display screen
- Searching for audio tracks
- Displaying the duration of audio tracks
- 4 RCA line inputs
- 1 mini jack 3.5 cm phone input on the front panel
- 1 Combo microphone input on the front panel
- RCA outputs x 2
- Unbalanced 6.35 mm jack outputs x 2
- Balanced XLR outputs x 2
- Overall volume
- Bass and treble correction
- Microphone bass and treble corrections
- Voltage: 115V or 230V, 50/60Hz
- Dimensions (W x D x H): 245 x 45 x 250 mm
- Weight: 2,1Kg
- Euroguitar Reference : 86538
