Hk audio ELEMENTS MK2 SMART BASE
The HK AUDIO ELEMENTS MK2 SMART BASE is a complete modular sound system from the ELEMENTS MK2 line, designed for conferences, presentations, corporate events, DJ performances, small bands, and traditional or modern religious events.

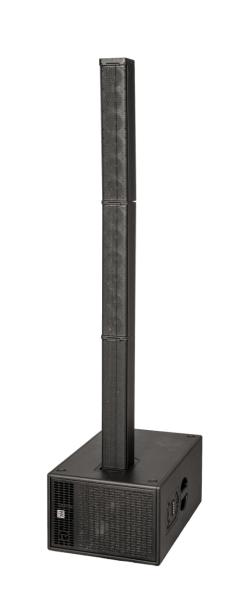

The system consists of two ELEMENTS MK2 635 column modules, one ELEMENTS MK2 SPACER, and one ELEMENTS MK2 110 Sub A active subwoofer. This configuration leverages the ELEMENTS MK2 modular line array principle, delivering uniform coverage and excellent intelligibility throughout the entire listening area.
Each of the two ELEMENTS MK2 635 modules features six 3.25" drivers paired with Phase Plug waveguides. Their 90° x 5° dispersion pattern ensures precise and uniform sound distribution, while the system’s DSP automatically detects the number of midrange/tweeter modules connected and applies the appropriate filters.
The ELEMENTS MK2 110 Sub A subwoofer is equipped with a 10" driver and a Class D amplifier delivering 900 W RMS and 1,800 W peak power. Compact in size, it delivers powerful low-midrange and natural sound reproduction that is particularly well-suited for vocals, while offering sufficient headroom for musical applications.

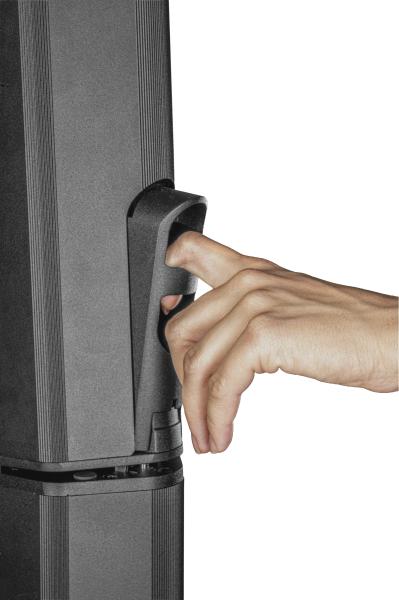

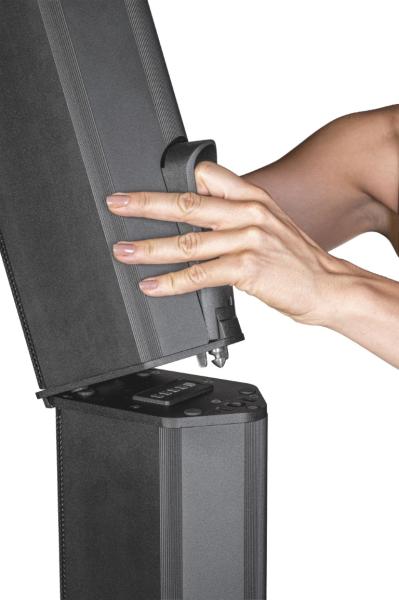

The HK Audio SnapLock system allows for quick, tool-free assembly of the subwoofer, spacer, and column modules. The mechanical connection and signal transmission are integrated directly between the various components, thereby eliminating visible cables on the column.
The SMART BASE also features the HK Audio DSP CONTROL platform with Flat, Contour, Voice, and Remote presets. Its Ethernet network connectivity enables system control as well as Milan AVB digital audio transmission.
According to HK Audio, this configuration is suitable for audiences of up to 250 people, depending on the program being presented, the venue, and the desired maximum sound level.
SYSTEM CONFIGURATION
2 x HK AUDIO ELEMENTS MK2 635
1 x HK AUDIO ELEMENTS MK2 SPACER
1 x HK AUDIO ELEMENTS MK2 110 Sub A
APPLICATIONS
Conferences and presentations
DJs and small bands
Traditional and modern religious events
Corporate events
Estimated audience: up to 250 people
Type: Passive full-range column speaker
Quantity: 2
Enclosure type: Sealed
Drivers per module: 6 x 3.25"
Waveguides per module: 6 x Phase plug
Peak power handling per module: 250 W
Nominal impedance per module: 12 ohms
Max. peak SPL per module: 132 dB
Crossover frequency: 175 Hz
Frequency response (-6 dB): 170 Hz - 18 kHz
Frequency response (-10 dB): 145 Hz - 20 kHz
Horizontal x vertical dispersion (-9 dB): 90° x 5°
Input: 1 x E-Connect MK2
Output / parallel output: 1 x E-Connect MK2
Enclosure material: Aluminum
Finish: Powder coating
Color: Black
Grille: Steel with anti-corrosion treatment
Dimensions per module (W x H x D): 11.2 x 56 x 15.1 cm
Weight per module: 7.3 kg
ELEMENTS MK2 SPACER SPECIFICATIONS
Type: Spacer
Material: Aluminum
Finish: Powder coating
Color: Black
Input: 1 x E-Connect
Output / parallel output: 1 x E-Connect
Dimensions (W x H x D): 11.2 x 56 x 15.1 cm
Weight: 3.85 kg
ELEMENTS MK2 110 Sub A SPECIFICATIONS
Type: Active subwoofer
Enclosure type: Bass-reflex
Woofer: 1 x 10" with 2.5" voice coil
Max. peak SPL: 123 dB
Crossover frequency: 175 Hz
Frequency response (-6 dB): 52 Hz – crossover frequency
Frequency response (-10 dB): 49 Hz – crossover frequency
Preamp type: DSP preamp
Amplification type: Class D bi-amplified
RMS output power: 900 W
Peak output power: 1800 W
Power consumption: 1.0 A / 100–240 V nominal per EN 62368-1
Max. input level: 20 dBu
Speaker protection: RMS/peak limiter
Sampling frequency: 48 kHz
DSP functions: 10-band parametric EQ with variable filter characteristics, high-pass filter, low-pass filter, polarity, DSP-Out delay (up to 50 ms), limiter, mute
Remote control software: HK Audio DSP CONTROL
Presets: Flat, Contour, Voice, Remote
Digital audio transmission: Milan AVB
Analog input: 1 x balanced XLR
Analog output: 1 x balanced XLR
DSP output: 1 x balanced XLR
Satellite outputs: 2 x E-Connect MK2
Network input: 1 x EtherCON RJ45
Network output: 1 x EtherCON RJ45
Mains power: 1 x IEC connector
Enclosure material: Hybrid construction
Enclosure finish: Water-based acrylic paint
Color: Jet Black (RAL 9005)
Handles: 2 x Gripshells with crossbar
Grille: Steel grille with anti-corrosion treatment and acoustic foam
Dimensions (W x H x W): 32.8 x 48.6 x 67.3 cm
Weight: 28.5 kg
Euroguitar Reference : 126019
