Hk audio L5MKII-308LTA
The new LINEAR 5 MKII series is a completely redesigned version of the renowned LINEAR 5 series. Manufactured in Germany and featuring the latest technological innovations, it is designed for professional bands and sound engineers seeking sophisticated, versatile, flexible, and cost-effective tools for their daily work. One of the major enhancements in the MKII version is the addition of a powerful DSP, which can be remotely controlled via dedicated software over an Ethernet connection. This allows the LINEAR 5 MKII speakers to be managed as part of a network. Furthermore, HK Audio has also provided the option to integrate speakers that do not have their own DSP into the network.
Active point-source loudspeaker for medium-range applications.
The mid-range frequencies are reproduced by three 8" drivers, coupled with a 1" compression driver for the high frequencies.
MCT (Multi-Cellular Transformer) waveguide with a dispersion pattern of 60° x +5°/-25° (asymmetrical).
- Application: Front of House
- Auto-standby: No
- Bluetooth: No
- Category: PA system

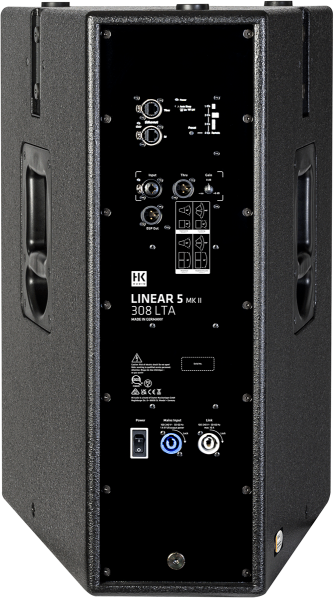

- Connectivity: XLR link, RJ45, XLR
- Controls: Volume, input gain, delay, equalization
- Color: Black
- DSP: Yes
- Speaker diameter: 3 x 8"
- Dimensions (mm): 440 x 680 x 460
- Horizontal dispersion (degrees): 60
- Vertical dispersion (degrees): 5.25
- Inputs: XLR/jack combo, RJ45
- Finish: Lacquered black
- Crossover frequency: 1.7 kHz
- Mounting flange width: 35 mm

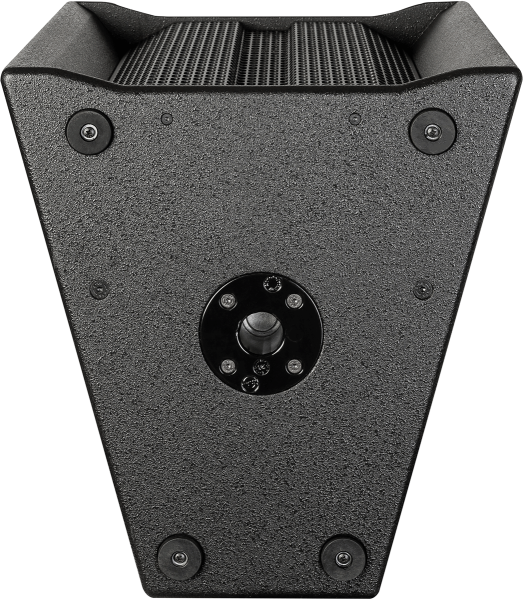

- Mounting: Stand or wall/ceiling mount
- Number of channels: 2-way
- Weight: 25 kg
- Max/Peak SPL: 138 dB
- Power (W): 600 W
- Power rating type: RMS
- Peak power (W): 1200 W
- Frequency response: 105 Hz - 17 kHz
- Max SPL: 133 dB
- Outputs: XLR link, XLR DSP
- Cabinet material: Multi-ply birch

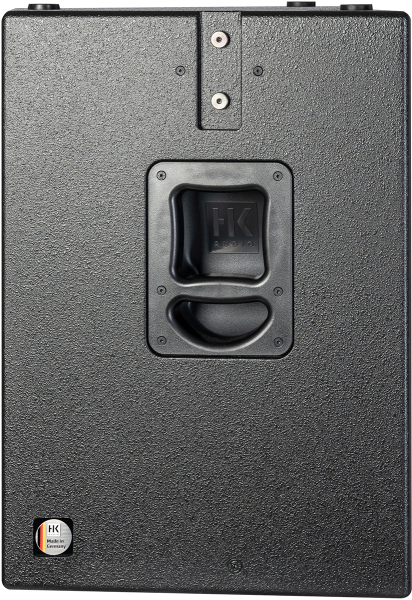

- Handles: 2
- Tweeter: 1"
- Type: Active speaker
- Speaker protection type: Power limiter
- Mounting insert type: M8
- Euroguitar Reference : 116945
