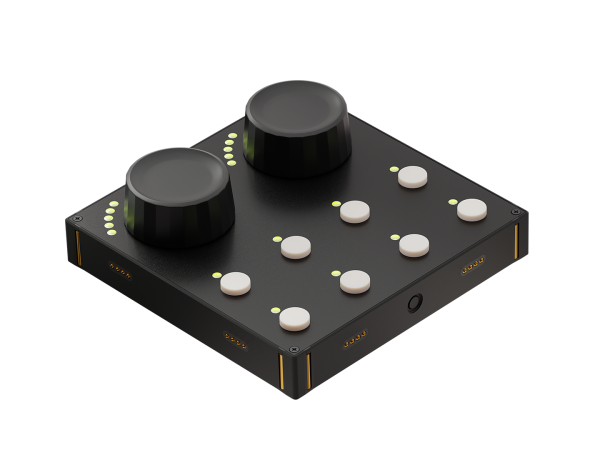

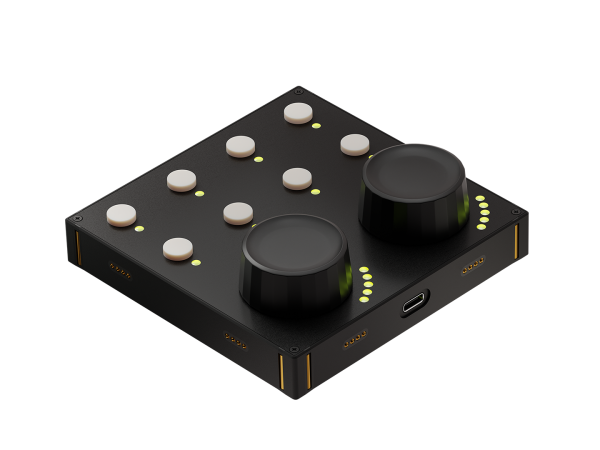

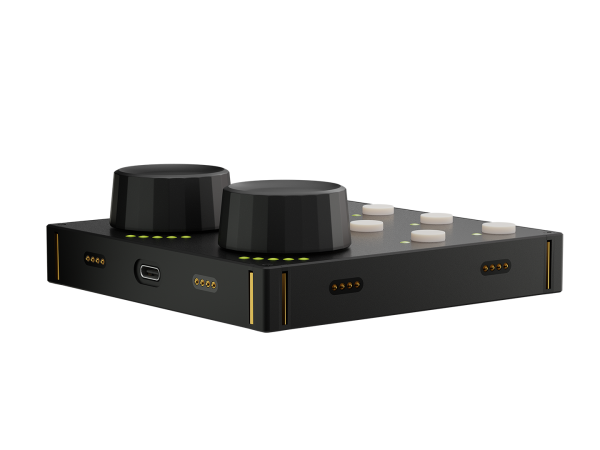

Intech studio Grid Series 2 - TEK2

The Intech Studio Grid Series 2 – TEK2 is a compact, modular USB MIDI controller designed to provide precise tactile control across a wide range of creative applications. It is suitable for music production, DJing, and live performance, as well as video editing, photography, and other creative software.

The TEK2 features two endless rotary jog wheels with a push function, enabling precise parameter control, timeline navigation, and fine-tuning adjustments. Their resolution, value range, and operating mode can be customized to suit the specific software being used.

The jog wheels also feature multi-colored 5-point LED visual feedback, allowing for quick identification of a parameter's position or status.

The controller includes 8 programmable tactile buttons capable of operating in various modes: momentary, toggle, or step selection. Using the free Grid Editor software, each control can be deeply configured, and advanced users can create custom functions via Lua scripting.

The fully modular Grid system allows multiple controllers to be connected together using spring-loaded connectors and N52 neodymium magnets. A single USB-C cable can handle both power and data transmission for a setup comprising up to 8 Grid modules.

Class-compliant and Plug & Play, the TEK2 requires no specific drivers and is compatible with macOS, Windows, Linux, and supported mobile platforms. Key Features
Compact and modular USB MIDI controller
2 jog wheels / endless rotary encoders
Push function on each jog wheel
Smooth, continuous rotation
Adjustable controller resolution
Relative and absolute operating modes
Configurable value range
5-point multi-color LED visual feedback
8 programmable touch buttons
Advanced configuration via Grid Editor
Custom programming via Lua scripts
USB MIDI class-compliant, Plug & Play
USB HID keyboard function
USB-C connection
Compatible with the Intech Studio Grid modular system
Up to 8 modules powered and connected via a single USB cable
High-speed USB 2.0 connection
Spring-loaded gold-plated pin connectors
N52 neodymium magnets for module assembly
Compatible with macOS (Intel & Apple Silicon), Windows, and Linux
Compatible with supported mobile platforms
Button Modes

The 8 touch buttons can be configured in the following modes, among others:

Momentary: sends value 127 when pressed and 0 when released
Toggle: alternates between values ??127 and 0 with each press
Step Toggle: cycles through multiple preset values ??with each press
