Intech studio Grid Series 3 - BU16 Mechanical

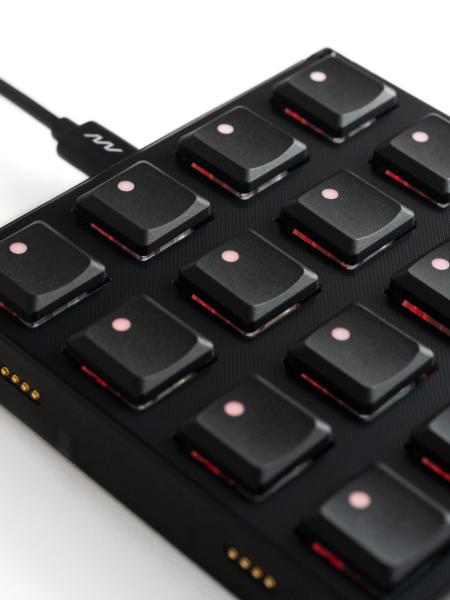

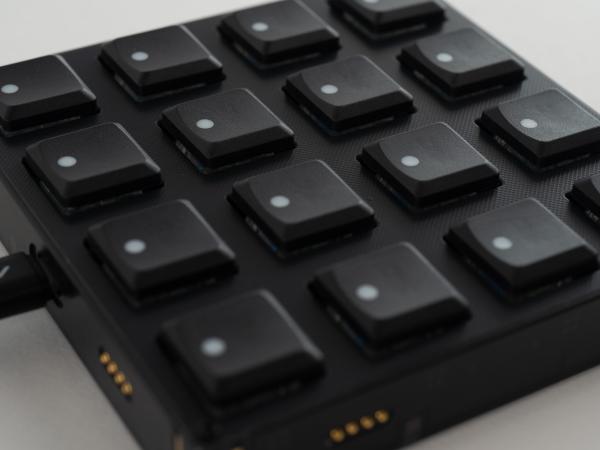

The Intech Studio Grid Series 3 – BU16 Mechanical is a compact, modular USB MIDI controller featuring 16 dynamic buttons arranged in a 4x4 matrix. Powered by Gateron Hall-effect switches, each button is velocity- and pressure-sensitive, offering expressive control ideal for triggering samples, launching clips, finger drumming, and live performances.

Hall-effect technology enables precise detection of key movement, offering capabilities far beyond a simple on/off switch. Consequently, the BU16 can be used to trigger commands or to create expressive interactions based on playing force or dynamics.

Each button features its own customizable RGB LED lighting. The stock keycaps include cutouts that ensure excellent LED visibility during use. Colors, brightness, and light animations can be individually customized via the Grid Editor software.

The keycaps are also interchangeable, making it easy to tailor the appearance, feel, or control layout to your specific workflow.

The 16 buttons support various operating modes, including momentary, two-state toggle, and multi-step sequencing. This allows the BU16 to function as a traditional MIDI controller, a performance pad, or even an HID macro pad for triggering keyboard shortcuts and software functions.

Thanks to its modular architecture, the BU16 connects to other controllers in the Intech Studio Grid series using an integrated magnetic system. Multiple modules can be combined to create a fully customized control surface. Key Features
Compact, modular USB MIDI controller
16 buttons arranged in a 4x4 matrix
Gateron Hall-effect switches
Velocity-sensitive
Pressure-sensitive
Ideal for triggering samples and clips
Suitable for finger drumming and live performances

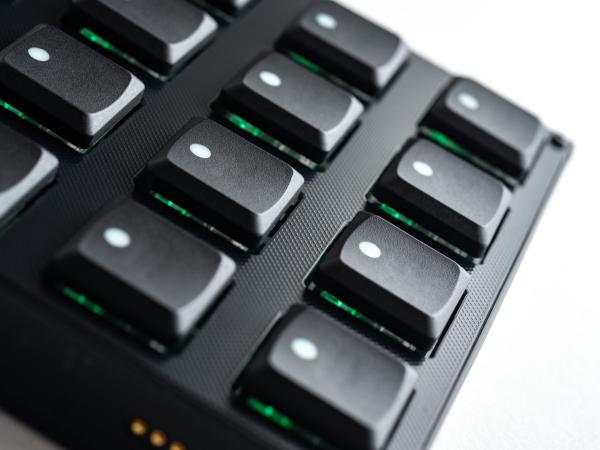

Individual RGB LED for each button
Customizable LED colors
Individually adjustable brightness
Programmable LED animations

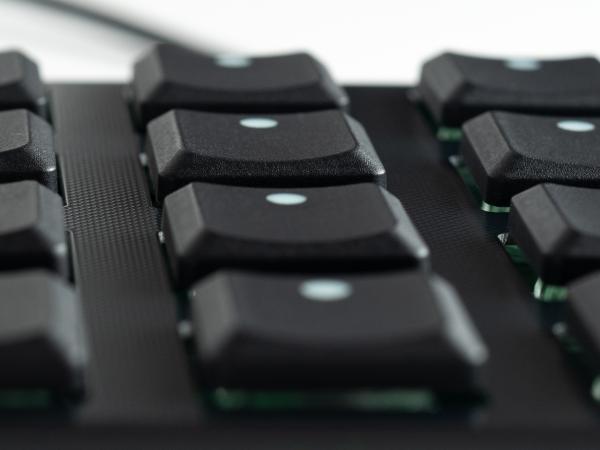

Swappable keycaps
Multiple button operating modes
Side function button for page switching
Advanced configuration via Grid Editor
Custom programming via Lua scripts
Use as a MIDI controller or HID macro pad
Class-compliant MIDI, Plug & Play
USB-C connection
High-speed USB 2.0 interface

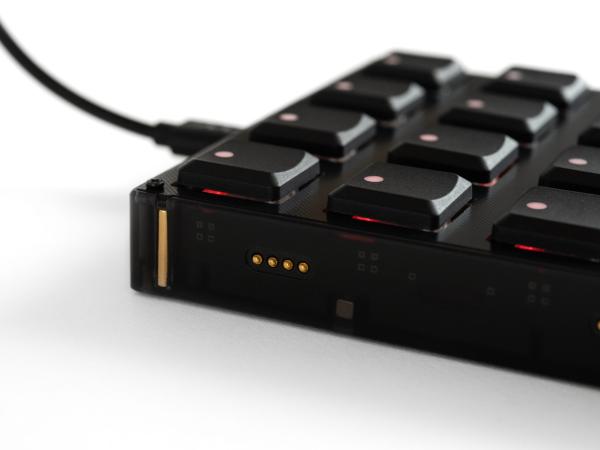

Magnetic system for connecting multiple Grid modules
Modular connection in various directions
Up to 8 modules powered and connected via a single USB cable
Spring-loaded gold-plated pin connectors
N52 neodymium magnets
Rugged construction
Compatible with macOS, Windows, Linux, and compatible mobile platforms
Button Modes

The 16 buttons can be configured in several modes:

Momentary: sends a value of 127 when pressed and 0 when released
Toggle: alternates between values ??127 and 0 with each press
Step: cycles through multiple preset values ??with each press; in a three-step configuration, values ??can, for example, progress in successive increments

This flexibility allows the same module to be used for both simple commands and functions requiring multiple states. Customization and Control

The Grid Editor software allows for in-depth customization of the BU16's operation:

Individual assignment of the 16 buttons
MIDI message configuration
Creation of HID shortcuts and macros
Customization of LED colors
Individual brightness adjustment
Creation of lighting animations
Configuration of multiple control pages
Modification of button behavior
Advanced programming via Lua scripts
Creation of fully customized workflows

This makes the BU16 suitable for use in musical environments as well as for controlling visual creation, editing, or productivity software.
