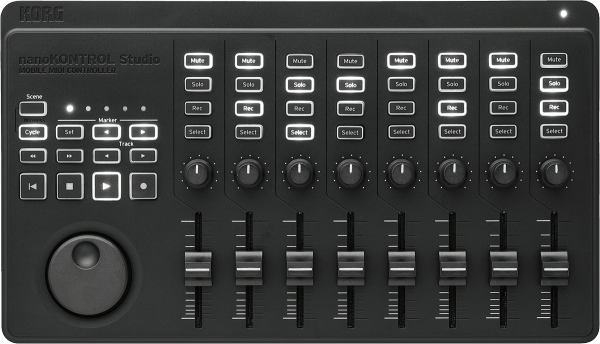

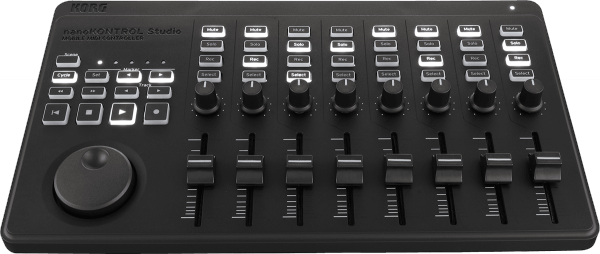

Korg Nanokontrol Studio

Controller
- 8 knobs, 8 siders, 32 buttons ([Mute/Solo/Rec/Select] x 8)
- Transport buttons (Beginning / Stop / Play / Rec / Rew / FF), Track (< / >), Cycle, Marker (Set / < / >), Scene
- Scene Memory: 5
- Connections: USB jack (micro B type)
- Wireless Type: Bluetooth Low Energy (Apple Bluetooth Low Energy MIDI specification compliant)

Power Supply
- USB bus power (when connected via USB)
- Two AAA batteries (when connected wirelessly; use alkaline or nickel-metal hydride batteries)

Battery Life
Approximately 10 hours (with the factory settings, when using alkaline batteries)
* Battery life will vary depending on the batteries used and on the conditions of use.
- Power Consumption: Less than 500mA

- Dimensions (W x D x H): 278 mm x 160 mm x 33 mm / 10.94" x 6.30" x 1.30"
- Weight: 459 g / 1.01 lbs. (without batteries)
- Included Items: USB cable, KORG Software Bundle code, two AAA Batteries for checking operation

Operating requirements

iOS
Wireless Connection
- OS: iPad/iPhone that Supports Bluetooth 4.0, and has iOS8 or later installed

Models
- iPhone 6s, iPhone 6s Plus, iPhone 6, iPhone 6 Plus, iPhone 5s, iPhone 5c, iPhone 5, iPhone 4S,
- iPad Pro, iPad Air 2, iPad Air, iPad fourth generation, iPad Third generation, iPad mini 4?iPad mini 3, iPad mini 2, iPad mini,
- iPod touch sixth generation, iPod touch fifth generation

Mac
Wireless Connection
- OS: Mac that supports Bluetooth 4.0 or later, and has OS X10.10 Yosemite or later installed

Models
- MacBook (Early 2015 or later)
- MacBook Air (Mid 2011 or later)
- MacBook Pro (Mid 2012 or later)
- Mac mini (Mid 2011 or later)
- iMac (Late 2012 or later)
- Mac Pro (Late 2013 or later)

Mac
USB Connection
- OS: MacOS 10.8 10.9 Mavericks or later

Windows
Wireless Connection
- OS: Operating system: Windows 8.1 or later (32-bit/64-bit) [KORG BLE-MIDI Driver is required]
- Models: A computer that is running Windows 8.1 or later, and is equipped with Bluetooth 4.0
