Ld systems ICOA PRO 15 A

The ICOA PRO 15 A combines the sonic precision of a true coaxial system with the impact of a 15" driver. Its professional performance, extended bandwidth, and robust design give it exceptional versatility; this loudspeaker is ideal for a wide variety of applications, from club concerts to live performances to permanent installations.

The custom-made 15" woofer with a 3" voice coil and the 3" titanium-diaphragm tweeter are mounted in a coaxial configuration to create a true point sound source. The common magnetic circuit design also optimizes the temporal coherence and phase of the audio signal. The result is a particularly natural and detailed sound.

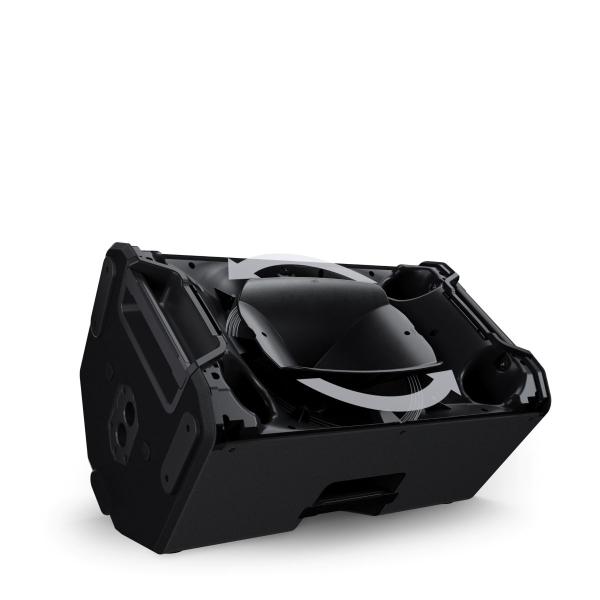

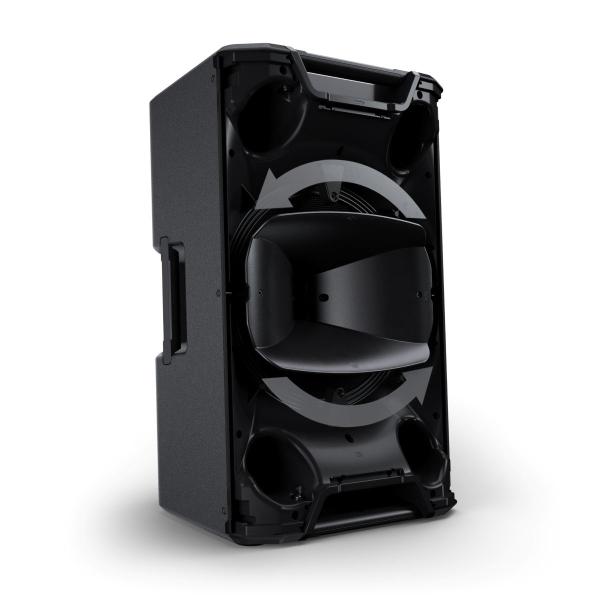

The BEM-optimized pivoting horn ensures precise diffusion while ensuring the horn loading of the woofer and tweeter. This dual horn-loading system precisely focuses sound waves down to the midrange (approximately 600 Hz), providing a decisive advantage in acoustically demanding environments, as the sound energy reaches exactly where it's needed.

Thanks to its optimized bass-reflex ports, the ICOA PRO 15 A delivers solid bass down to 50 Hz, for an impressive full-range experience. Its powerful Class D amplifier delivers up to 1500 W RMS (3000 W peak), or a maximum sound level of 135 dB SPL, ensuring sufficient headroom for powerful, distortion-free sound.

The advanced SysCore® DSP, with FIR/IIR filters and sophisticated limiters, guarantees distortion-free sound and optimal operational reliability, with maximum clarity and impact, even when pushing the speaker to its limits.

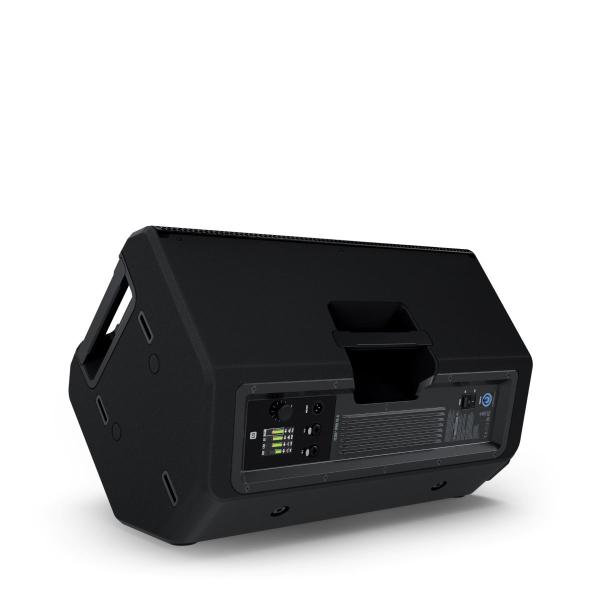

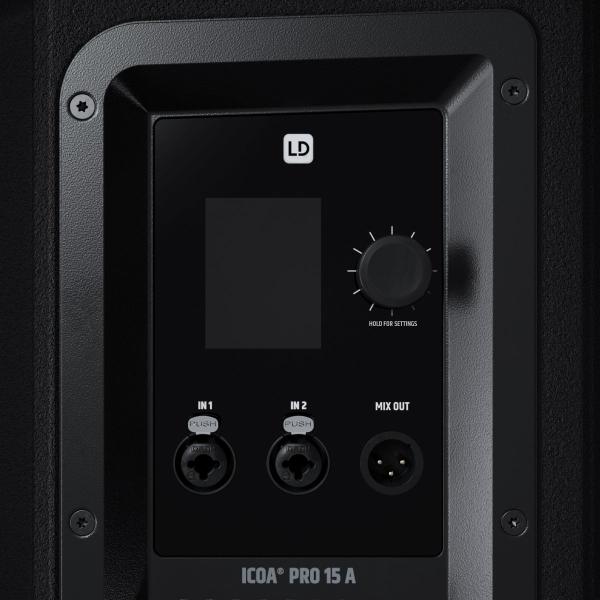

The two Line/Mic input channels and the XLR Mix output allow for easy management of different signal sources.

Four user presets (including a low-latency one for use as a stage monitor), a delay function, and 4-band parametric EQs on the input and output channels allow for precise adjustments.

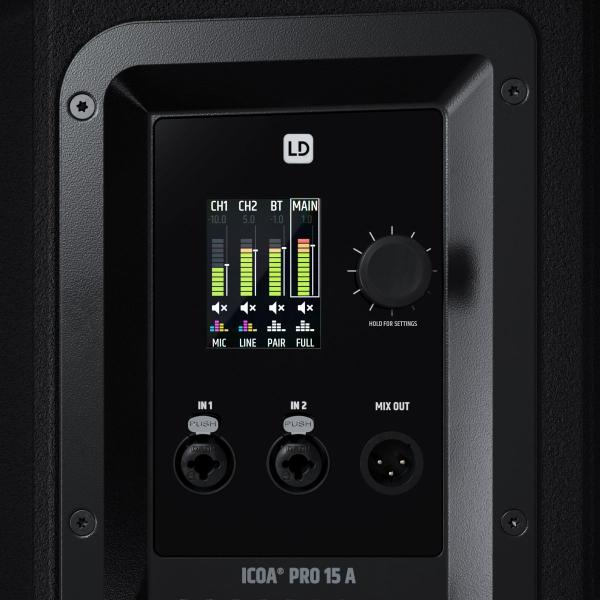

Not to mention an intuitive menu-driven user interface on the color display, with single-encoder control and the free "ICOA PRO" app.

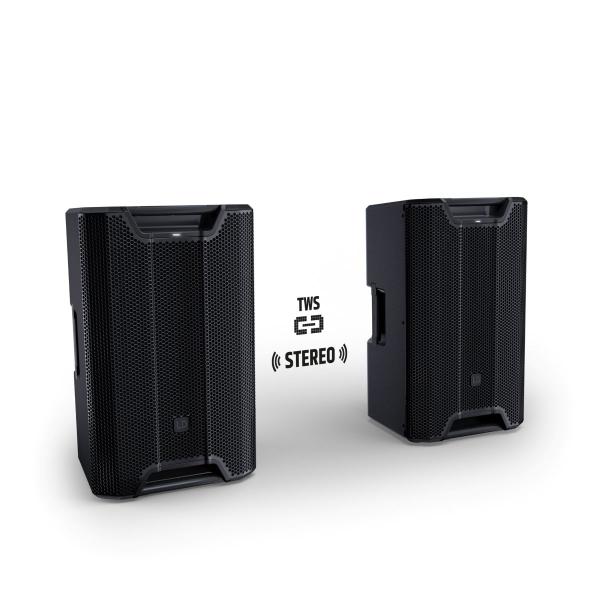

This app allows you to quickly and wirelessly adjust all parameters and pair multiple speakers together. It allows you to create and use a stereo setup with up to two speakers and four subwoofers in seconds, and supports music streaming via Bluetooth 5.1 and TWS. A status LED on the front of the subwoofer makes it easy to identify and determine whether the limiter is active or not.

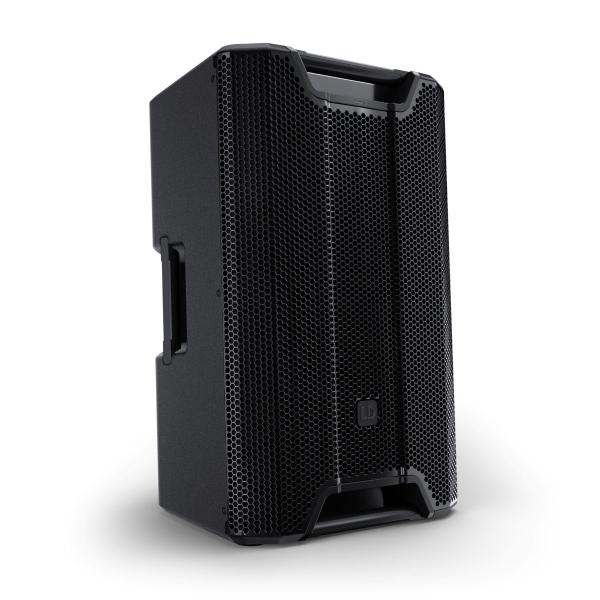

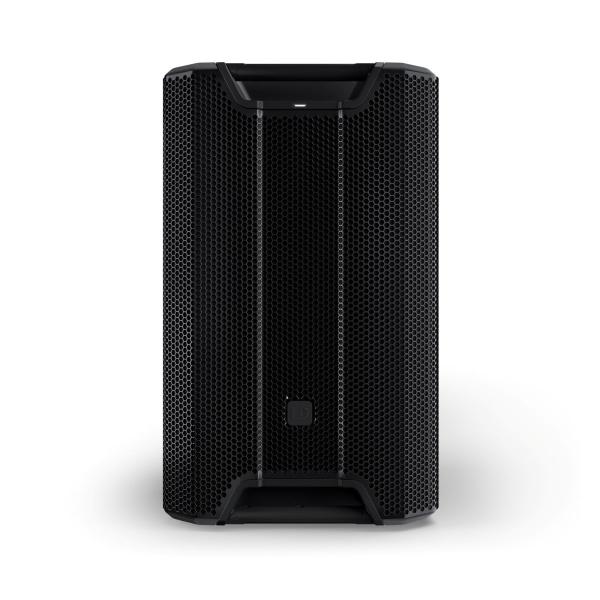

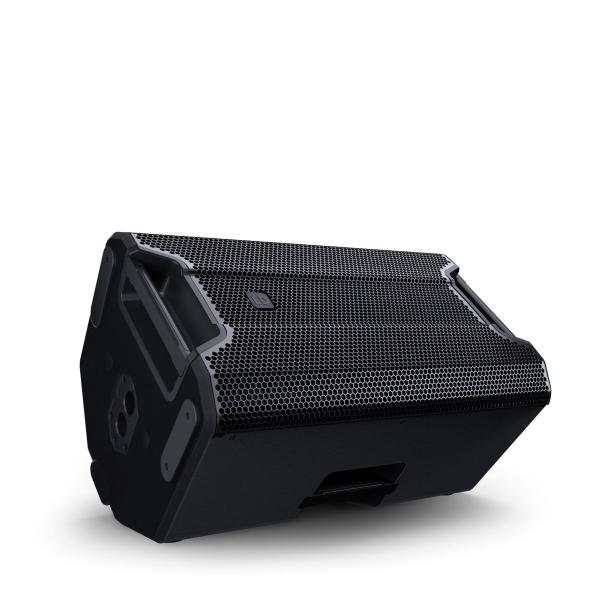

The robust ABS housing with steel reinforcements, the solid front grille, and the 50° tilt angle make the ICOA PRO 15 A an excellent stage monitor.

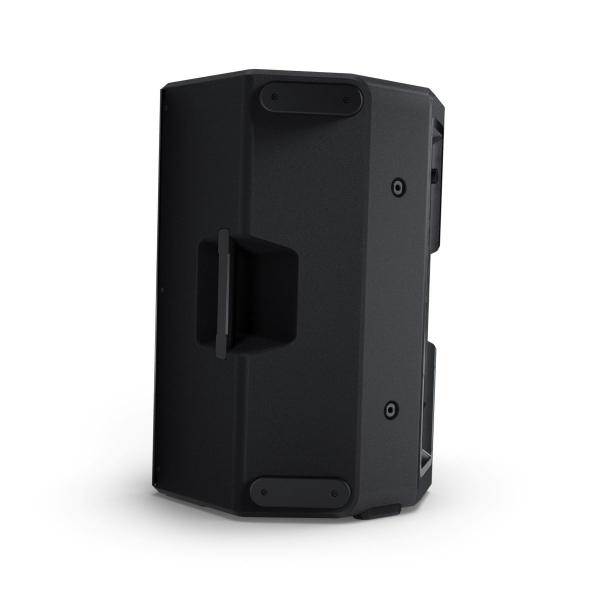

Four ergonomic handles also ensure optimal handling during assembly and disassembly.

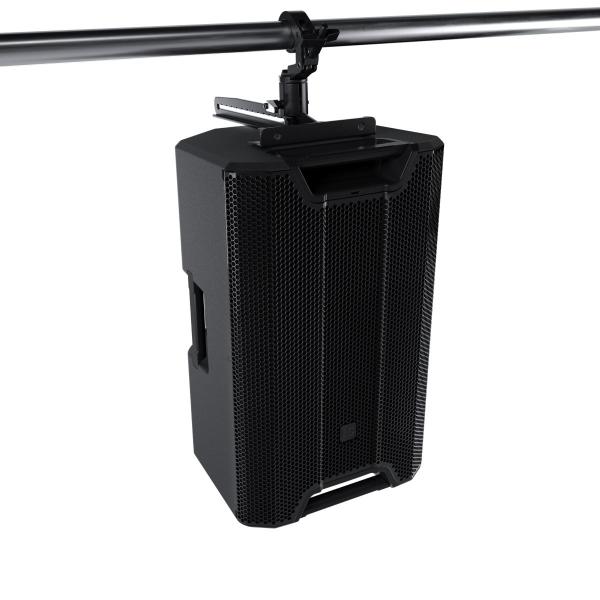

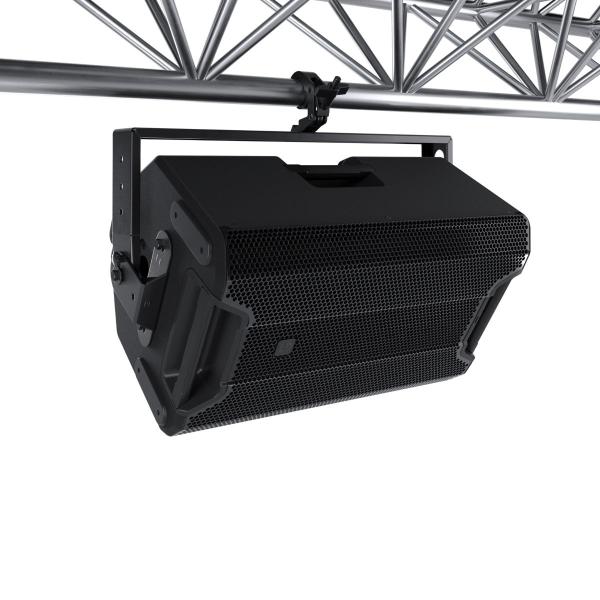

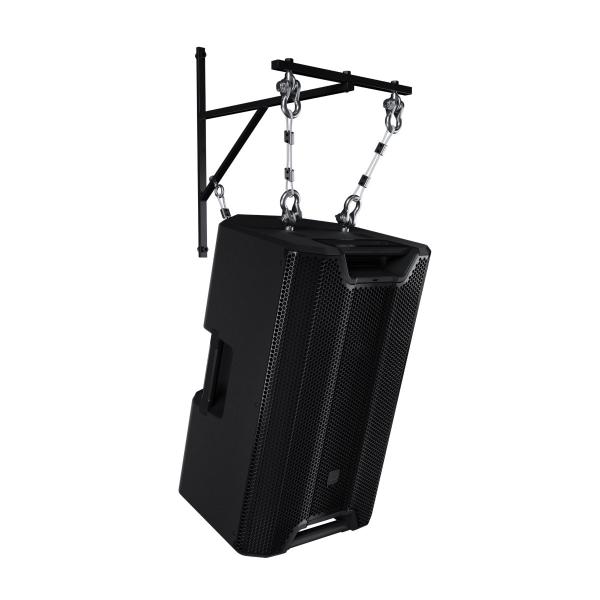

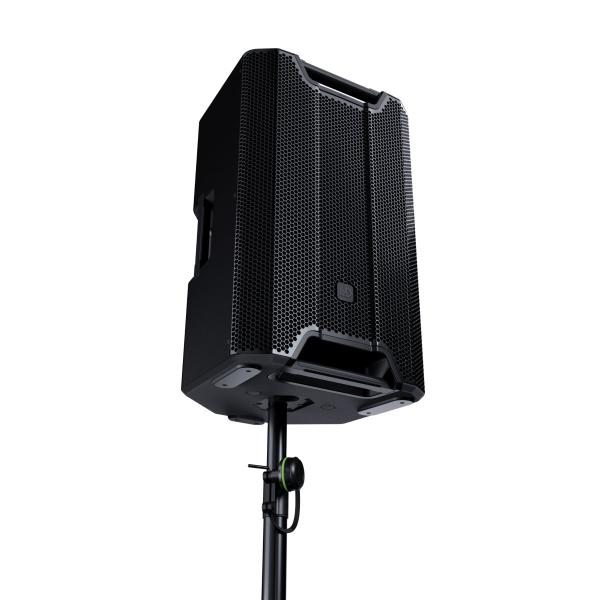

When used on a stand, the tilt angle can be set between 0° and 5°. The rotating canopy and numerous mounting options, such as the six M10 mounting points and the EasyMount® steel frame clamp, allow flexible use in a wide variety of environments, both horizontally and vertically.

The ICOA PRO 15 A is therefore the perfect companion, a versatile tool for all event and installation applications.

For safe operation and transport, perfectly tailored, padded, waterproof protective covers with additional storage space are available as accessories.
