Medeli UP 605

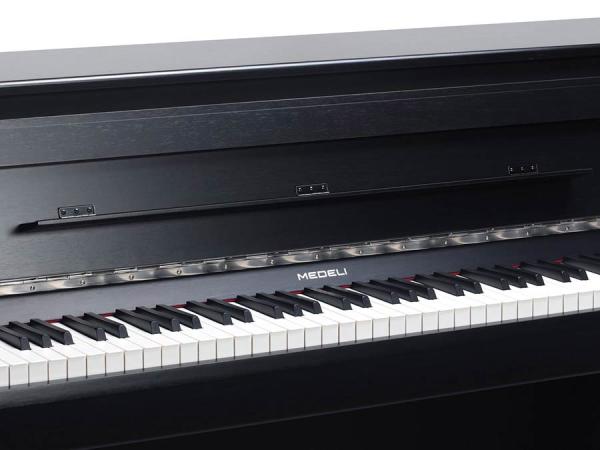

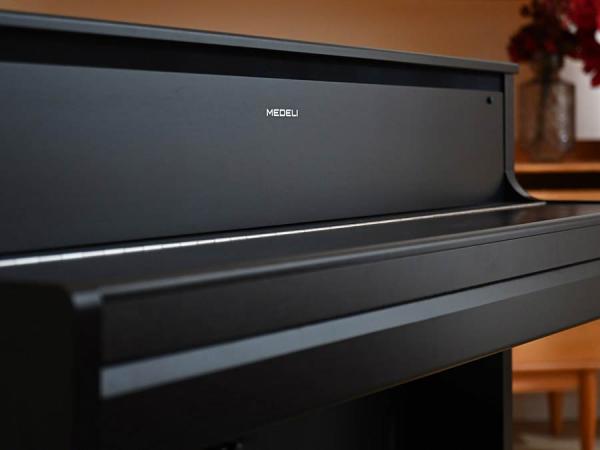

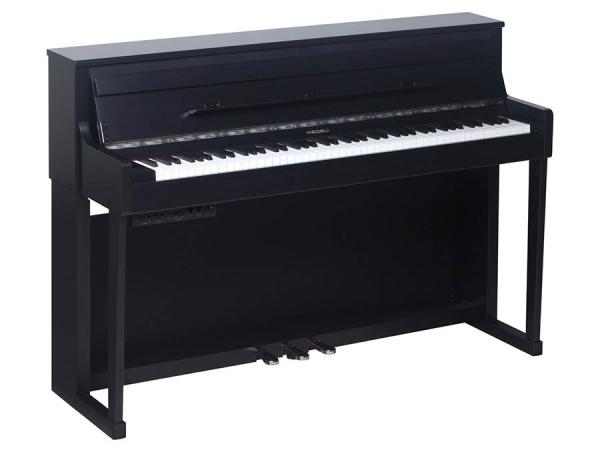

The Medeli UP605/BK is an upright digital piano designed to deliver the feel and precision of an acoustic instrument in an elegant cabinet with a satin black finish. Its Grand Action G3PW keyboard features 88 progressively weighted wooden keys, each equipped with three sensors and an escapement mechanism. This allows for the precise reproduction of nuances, rapid repetitions, and the various dynamic levels of piano playing.
The PurePiano II sound engine, combined with 256-note polyphony, offers 40 tones and detailed modeling of an acoustic piano’s behavior: string and damper resonance, pedal noise, cabinet resonance, lid position, and key release effect. The Dynamic Acoustic System also adjusts the sound reproduction to maintain a balanced tone at both low and high volumes.
The UP605 features an OLED display and a touchscreen control panel that blend discreetly into the cabinet. Its Layer, Split, and Twinova modes allow you to layer sounds, split the keyboard, or create two identical zones for working with a teacher. Its library includes 100 classical pieces and 320 educational songs, complemented by the intelligent Play to Search feature, which can identify a built-in song based on just a few notes played.
Thanks to Bluetooth 5.0 Audio and MIDI, a bidirectional USB audio interface, and a USB flash drive port, the piano easily connects to a computer, tablet, or smartphone. It allows you to play music through its speakers, use MIDI apps, and record your performances in MIDI, WAV, or MP3 formats.

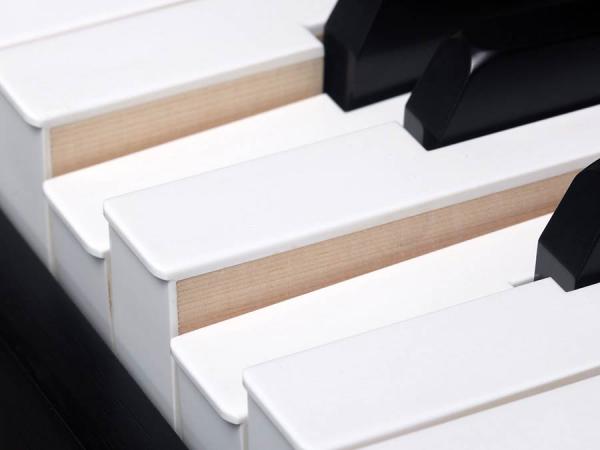

Keyboard: 88 wooden keys, Grand Action G3PW
Action: Progressive weighting, three sensors, and escapement
Sensitivity: Off or 5 touch curves

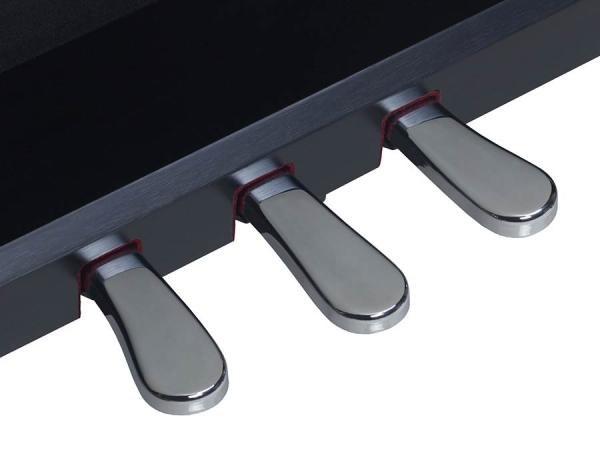

Pedal unit: 3 pedals with progressive response
Pedal functions: Soft, Sostenuto, and Sustain/Damper
Sounds and Playing
Sound engine: PurePiano II
Maximum polyphony: 256 notes
Sounds: 40
Sound demos: 26
Keyboard modes: Piano, Layer, Split, and Twinova
Parts: Left, Right 1, and Right 2
Brightness adjustment: Yes
Modeling and Effects
Damper resonance
Damper and pedal noise
String and open-string resonance
Lid position simulation
Key-off effect
Cabinet resonance
Ambience: 6 types
Reverb: 6 types, depth adjustable across 128 levels
Chorus: 6 types, depth adjustable across 128 levels
Dynamic Acoustic System: On/Off
Speaker EQ: 6 types
Songs and Educational Functions
Classical pieces: 100
Learning pieces: 320
Play to Search: Smart song search based on played notes
Part mute: Left hand or right hand
Metronome: 14 time signatures
Tempo: 5 to 320 BPM
Transpose: -12 to +12 semitones
Temperaments: 9 classical temperaments
Recording and Playback
Internal MIDI recording: 1 user song
MIDI recording to USB drive: Yes
Audio recording: WAV 44.1 kHz/16-bit or MP3 320 kbps
Audio playback: WAV, MP3, and M4A
Maximum recording duration Audio: 90 minutes per file
Maximum USB flash drive capacity: 128 GB, FAT32 format

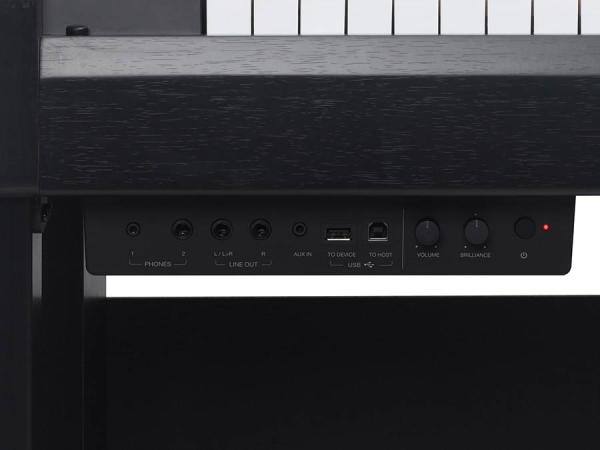

Connectivity
Bluetooth 5.0 Audio
Bluetooth 5.0 MIDI
USB-to-Host with MIDI and bidirectional audio
USB-to-Device for USB flash drive
1 x 3.5 mm mini-jack aux input
2 x 6.35 mm jack line outputs (L/L+R and R)
1 x 3.5 mm mini-jack headphone output
1 x 6.35 mm jack headphone output
Interface and cabinet

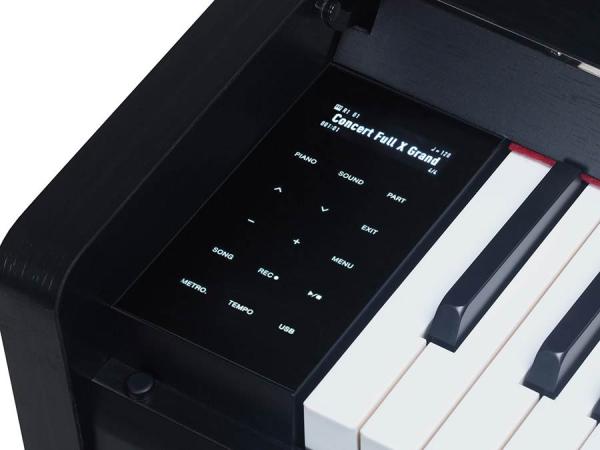

Display: 256 × 64 pixel OLED
Controls: Backlit capacitive touch panel
Key cover: Soft-close system
Auto-power on: Upon opening the key cover (function can be disabled)
Finish: Satin black
Amplification and speakers
Amplification: 2 × 25 W + 2 × 25 W
Speakers: 2 × 14 cm + 2 × 2.5 cm
Dynamic Acoustic System: Dynamic sound reproduction optimization

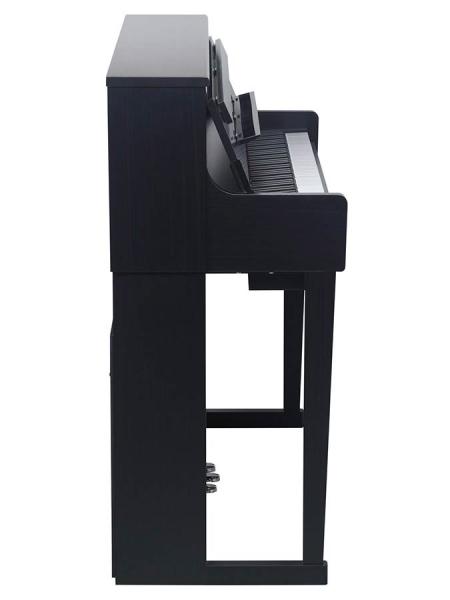

Dimensions and weight
Width: 1,426 mm
Depth: 457 mm
Height: 1,000 mm
Weight: 68 kg
Power supply: DC 15 V / 2,500 mA adapter
