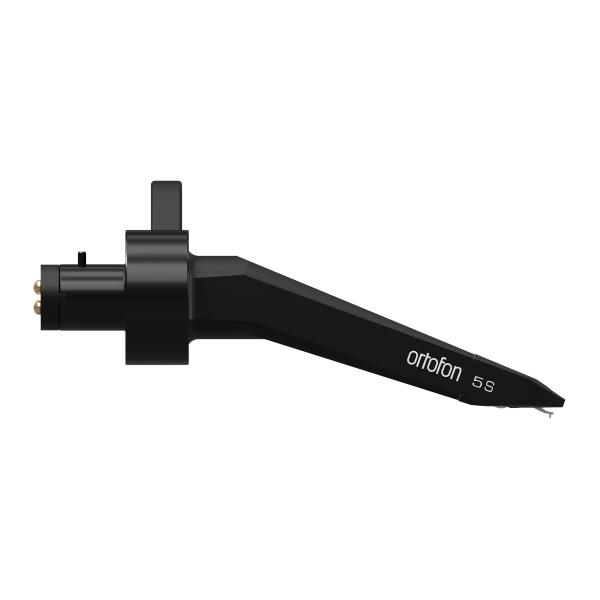

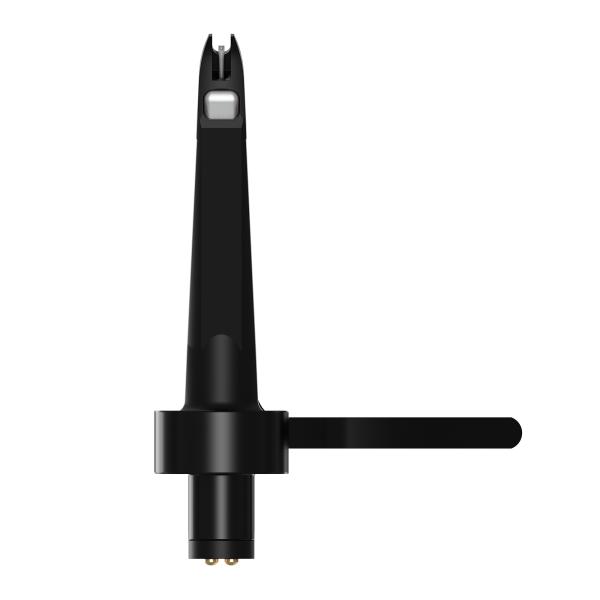

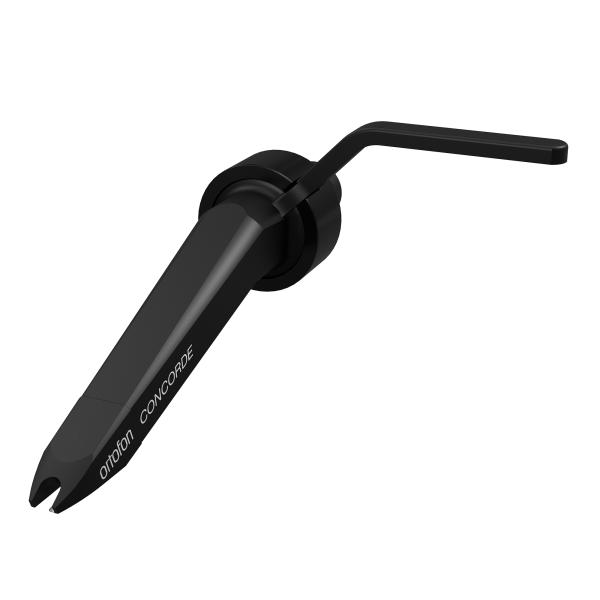

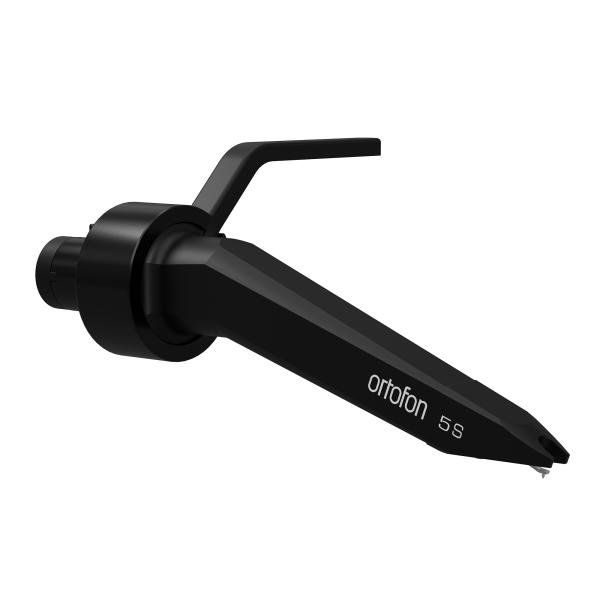

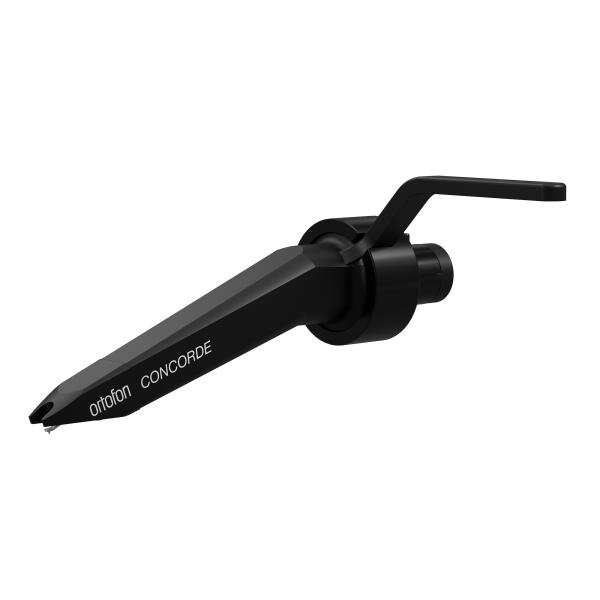

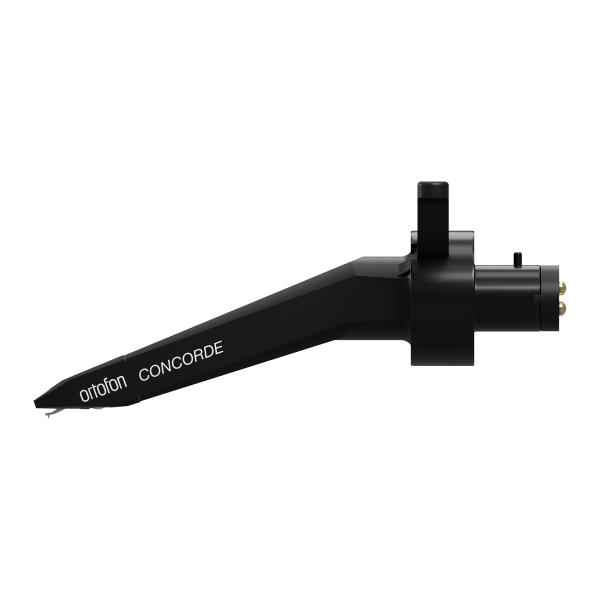

Ortofon Cellule Concorde 5E
ABOUT THE PRODUCT
With their iconic design inherited from the legendary Concorde MKI, Ortofon Concorde 5E and 5S cells embody the perfect balance between simplicity, reliability and audio performance.
Positioned just below the Concorde Music series, these two models offer an ideal gateway to quality vinyl listening, whether you're a curious audiophile or an everyday music lover.
Easy to use and extremely robust, the Concorde 5S is perfect for casual vinyl listening, without compromising on quality.
Its spherical diamond provides stable, forgiving playback, even if your installation is not perfectly optimized.
FEATURES
- Output voltage at 1000 Hz, 5 cm/sec: 4 mV
- Stylus type: Spherical
- Cantilever: Aluminum
- Stylus tip radius: R 18 µm
- Coils: 4 coils on split-pole mounts (2+ and 2-)
- Coil wire: OFC (Oxygen-Free Copper)
- Channel balance at 1 kHz: 2 dB
- Channel separation at 1 kHz: 20 dB
- Frequency response: 20 Hz – 20 kHz ±3 dB
- Compliance, dynamic, lateral: 20 ?m/mN
- Recommended tracking force: 1.8 g
- Reading angle: 20° (typical value)
- Recommended load resistance: 47 kOhm
- Recommended load capacitance: 200-500 pF
- Color of the Cartridge and stylus: Black/Black
- Cartridge weight: 18g
- Euroguitar Reference : 117259
- Stylus type: Spherical
- Cantilever: Aluminum
- Stylus tip radius: R 18 µm
- Coils: 4 coils on split-pole mounts (2+ and 2-)
- Coil wire: OFC (Oxygen-Free Copper)
- Channel balance at 1 kHz: 2 dB
- Channel separation at 1 kHz: 20 dB
- Frequency response: 20 Hz – 20 kHz ±3 dB
- Compliance, dynamic, lateral: 20 ?m/mN
- Recommended tracking force: 1.8 g
- Reading angle: 20° (typical value)
- Recommended load resistance: 47 kOhm
- Recommended load capacitance: 200-500 pF
- Color of the Cartridge and stylus: Black/Black
- Cartridge weight: 18g
- Euroguitar Reference : 117259
