Rcf EVOX J8 W

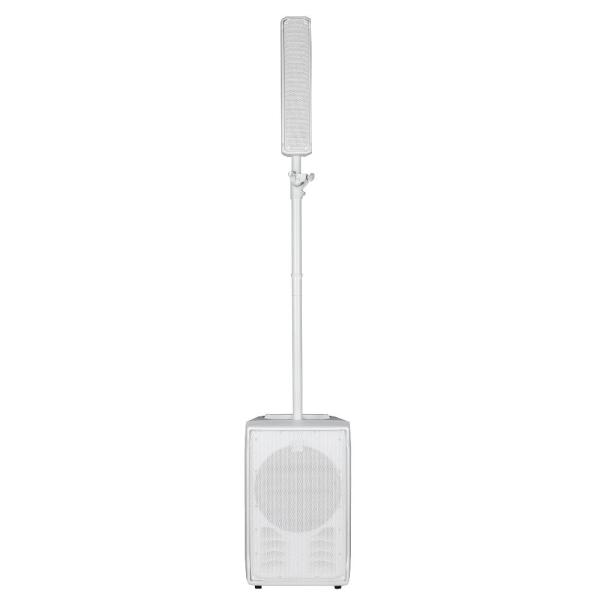

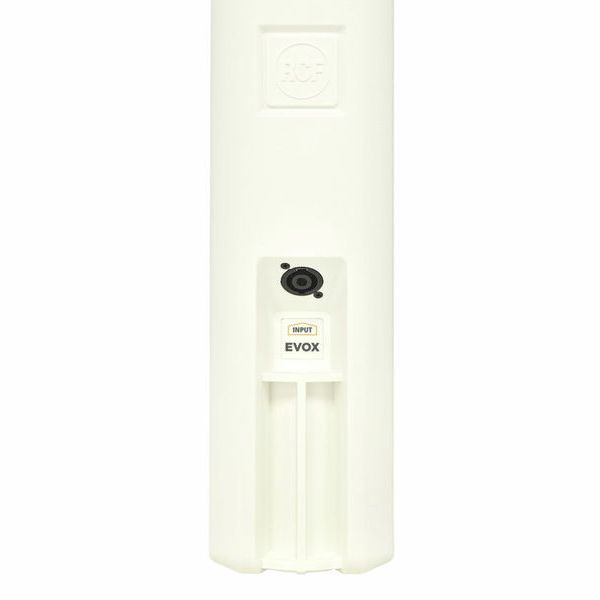

The Rcf EVOX J8 W is a portable Line Array System.
RCF's EVOX J8 W system offers an exceptional audio experience, ideal for a variety of applications, from solo performances to lively DJ parties. With a portable design and advanced features, this setup redefines audio quality and versatility.
Key Features:
The integrated Class D amplifier with 1400 W ensures optimal performance with high energy efficiency. This technology provides realistic transient response, ultra-fast attack, and outstanding sound performance.
Superior Transducers:

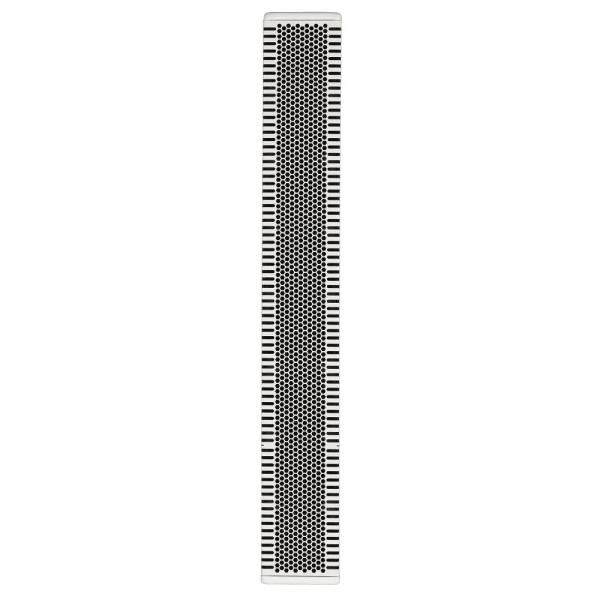

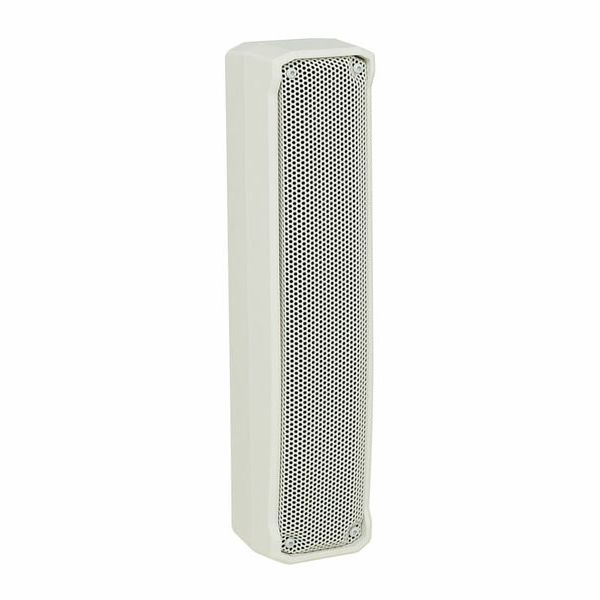

High Frequencies: RCF's 50.8 mm full-range drivers deliver exceptional SPL and power level management, ensuring remarkable acoustic performance.

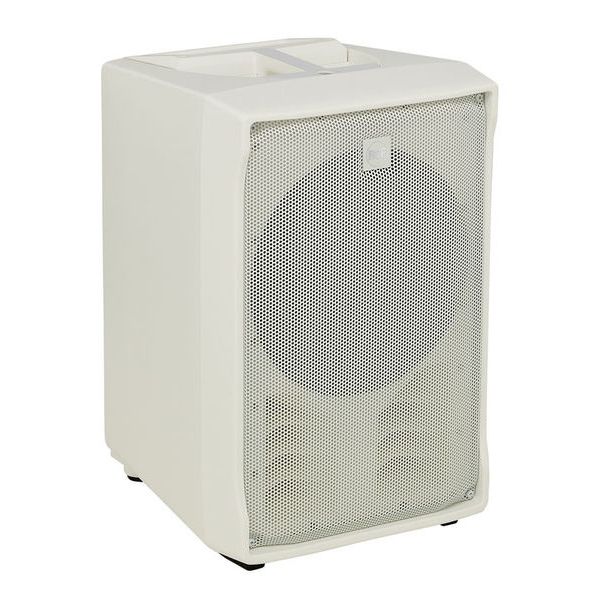

Low Frequencies: The 304.8 mm high-excursion RCF woofer ensures quick and precise punch, extending to the lowest frequencies. The bass-reflex port minimizes distortions, ensuring a consistent sound coverage of 120° x 30° (HxV).
Easy Transport and Setup:

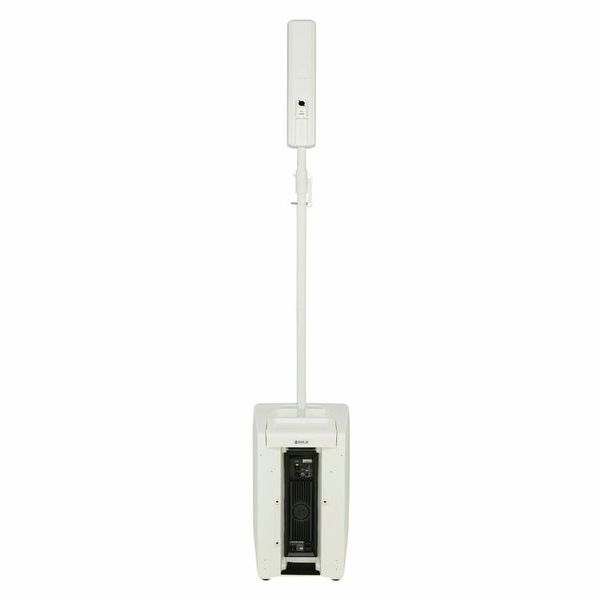

The portable design is enhanced by a handle on the top of the woofer enclosure and an integrated trolley in the optional cover. Mounting is simplified with a secure metal pole on the trolley, allowing for easy transport.
System Configurations:
From solo musicians to DJ events, the flexibility of the EVOX J system facilitates multiple configurations. Multiple outputs and FIRPHASE processing with a 0° phase response ensure an optimal audio experience.
Max SPL @ 1m: 128 dB
Horizontal Coverage Angle: 120°
Vertical Detection Angle: 30°

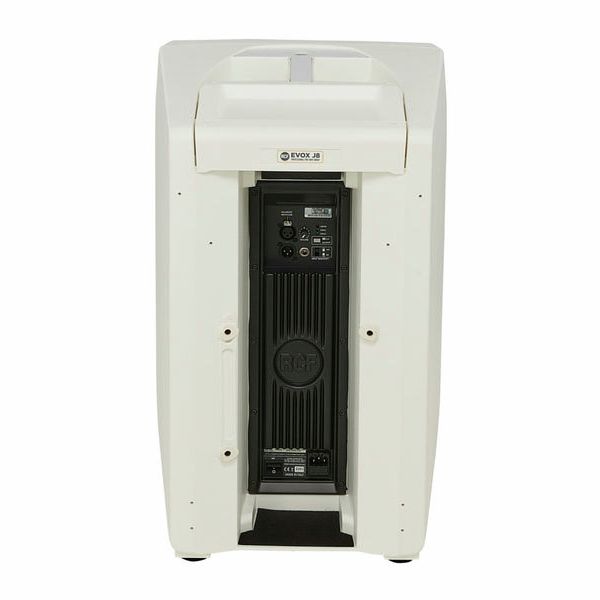

Input Signal: Balanced/Unbalanced
Input Connectors: XLR, Jack
Output Connectors: XLR
Input Sensitivity: -2 dBu/+4 dBu
Total Power: 1400 W Peak, 700 W RMS
High Frequencies: 400 W Peak, 200 W RMS
Low Frequencies: 1000 W Peak, 500 W RMS
Cooling System: Convection
Connections: VDE
Height: 2285 mm / 89.96 inches
Width: 400 mm / 15.75 inches
Depth: 460 mm / 18.11 inches
Weight: 20.2 kg / 44.53 lbs
Euroguitar Reference : 102602
