Rcf NX 910-A

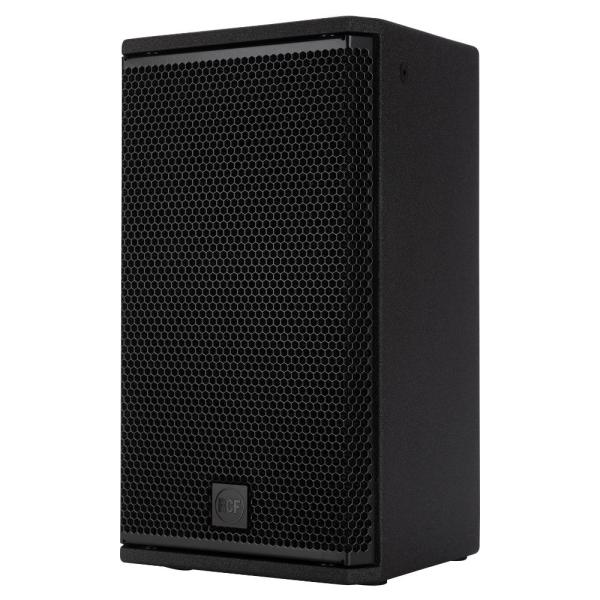

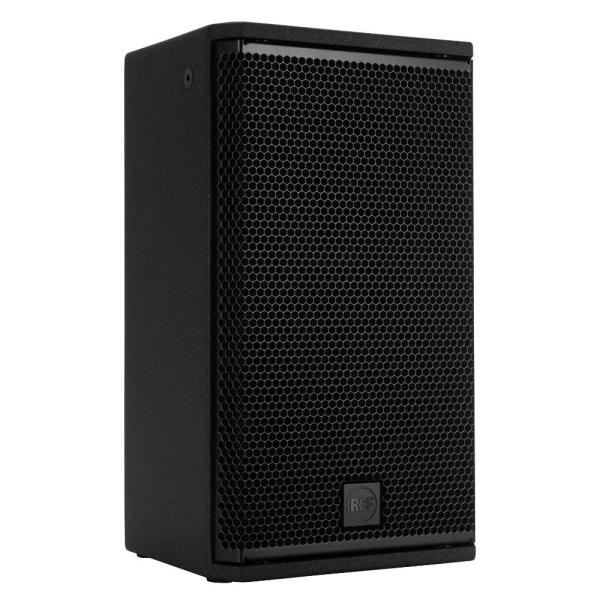

The RCF NX 910-A is a professional active loudspeaker designed for solo musicians, bands, DJs, and demanding audio engineers.

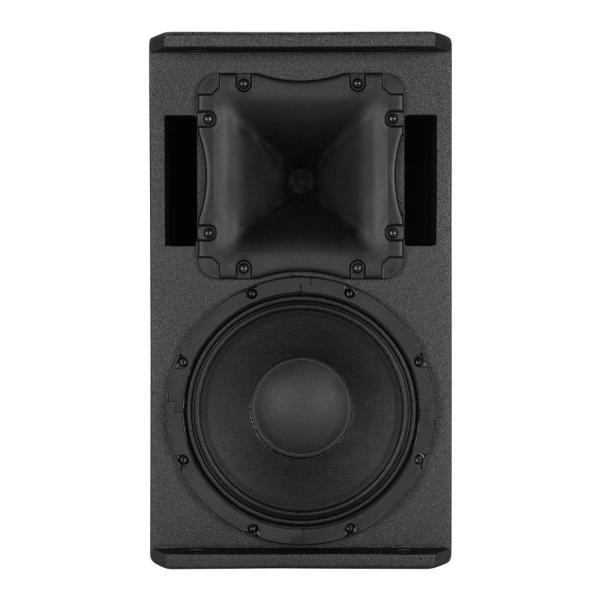

It combines a 10? woofer with a high-efficiency compression driver, a 2,100 W two-channel amplifier, and a constant directivity waveguide offering 100° × 60° coverage for even sound dispersion. Maximum sound pressure level reaches 130 dB SPL, delivering powerful, distortion-free sound.

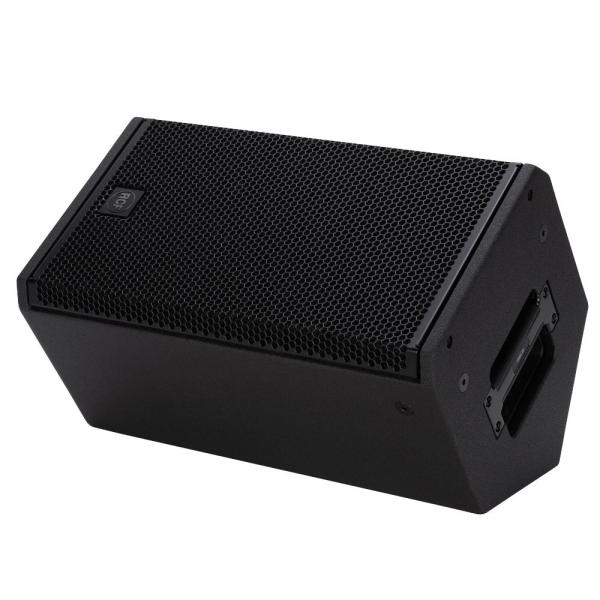

Intended for a variety of applications—main PA, satellite speaker with subwoofer, stage monitor, or suspended mounting—this loudspeaker stands out for its robust construction: wooden cabinet, numerous mounting options (pole, ceiling, wall, truss), carrying handle, durable materials, and road-ready finish.
It also incorporates advanced DSP technologies: FiRPHASE filters ensuring zero-degree phase for an open and precise sound image, and Bass Motion Control for intelligent control of woofer excursion and deep bass frequencies.
Frequency Response: 50 Hz to 20,000 Hz
Maximum SPL (@ 1 m): 130 dB
Horizontal Coverage Angle: 100°
Vertical Coverage Angle: 60°
Compression Driver: 1 x 1.0?, 1.75? voice coil
Woofer: 1 x 10?, 2.5? voice coil

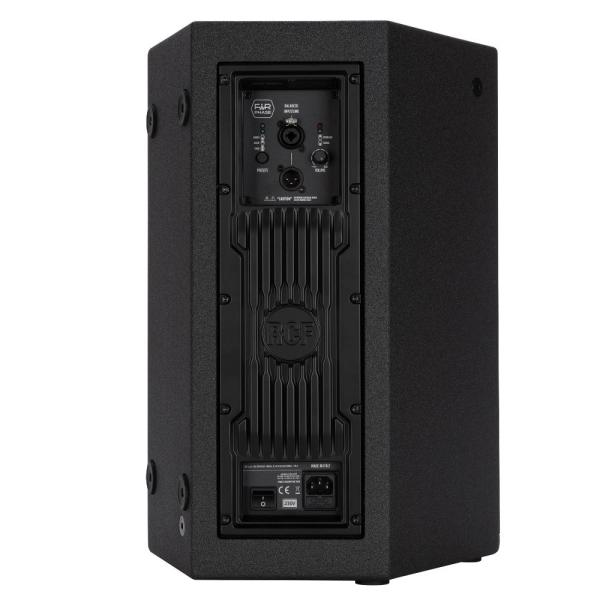

Connectivity and Input/Output Section
Input Signal: Balanced / Unbalanced
Input Connectors: XLR, Jack
Output Connectors: XLR (Link)
Input Sensitivity: -2 dBu / +4 dBu
Crossover Frequency: 1,600 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Linear, Boost, and Stage modes and volume control
Amplification & Power Supply
Total Power (peak): 2100 W
High frequencies: 700 W (peak)
Low frequencies: 1400 W (peak)

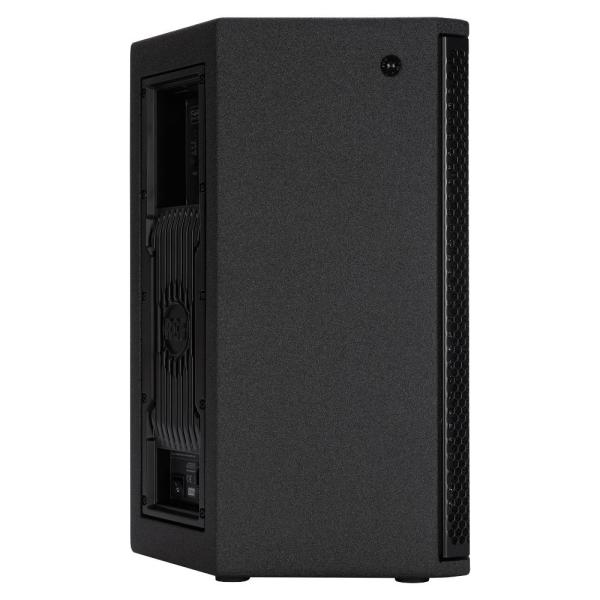

Cooling: Convection (fanless)
Connection Standards: VDE, CE marking
Construction / Mechanics
Cabinet: Plywood (wood)

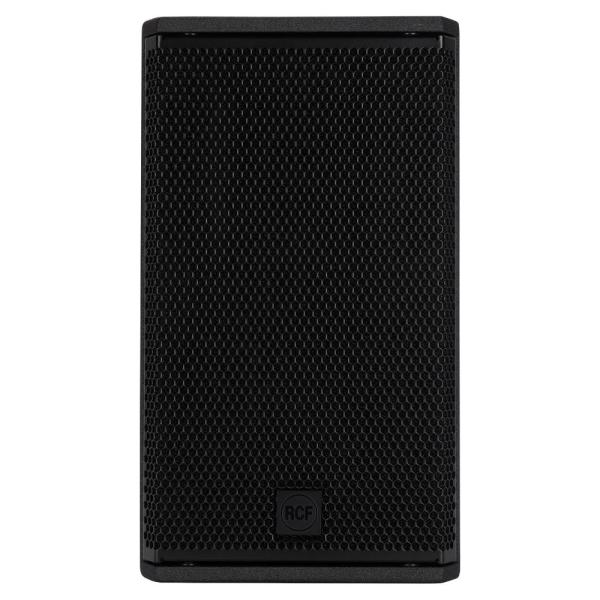

Grille: Steel

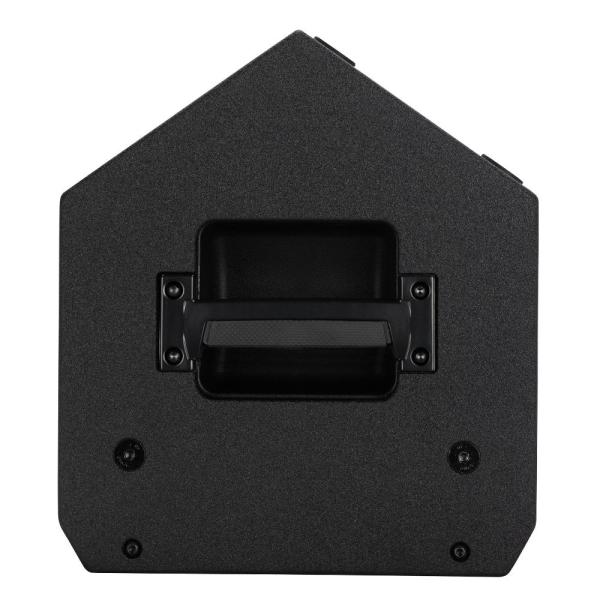

Carrying Handle: 1 on top

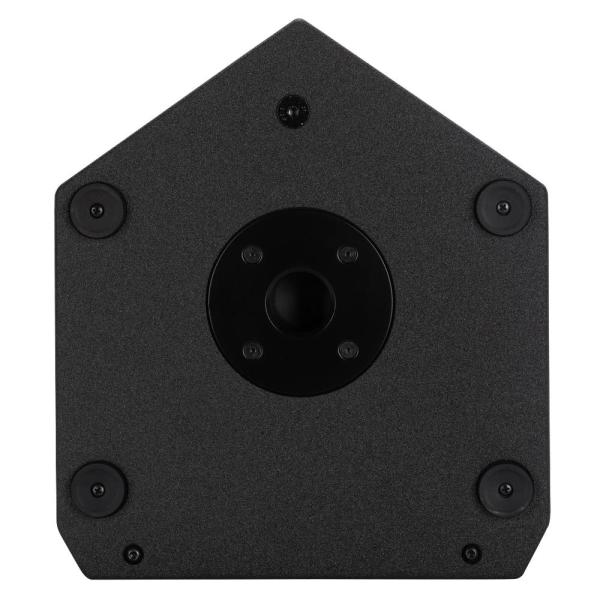

Mounting Base: Yes (35 mm diameter socket for tripod/stand)
Mounting Points (M10): 2 x top, 1 x each side, 1 x bottom, 1 x rear
Color: Black
Dimensions (H × W × D): 510 mm × 295 mm × 333 mm
Weight: 16.4 kg
Packaging Shipping
Package height: 556 mm
Package width: 388 mm
Package depth: 348 mm
Package weight: 18.1 kg
Euroguitar Reference : 120027
