Rcf SUB 705-AS MK3
The SUB 705-AS MK3 is a high-performance active subwoofer designed for live sound, DJ, and small to medium-sized mobile installations.
It features a large 15" woofer with a 3" voice coil in a robust bass-reflex enclosure, coupled with a 1400W peak (700W RMS) Class D digital amplifier.
Thanks to Bass Motion Control woofer management technology, it delivers deep, dynamic, and well-defined bass while maintaining optimal stability and linearity.

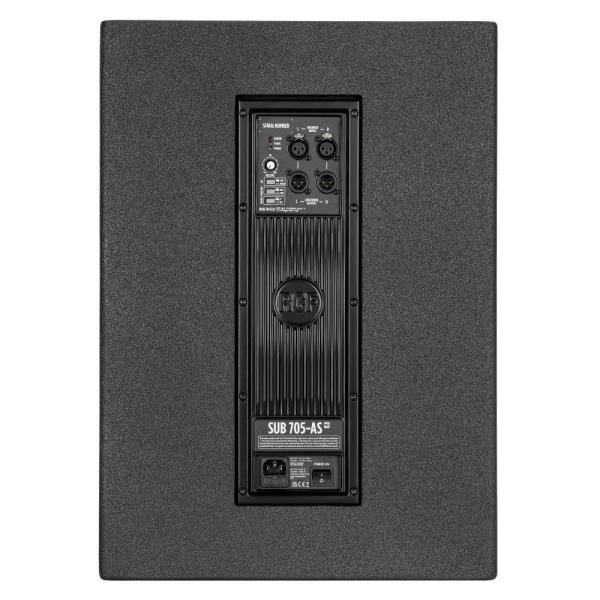

The rear panel offers comprehensive controls: volume, EQ, polarity reversal, and crossover preset, allowing for quick integration with 10" or 12" satellite speakers.
The enclosure is made of reinforced Baltic birch plywood with a highly durable coating, ergonomic carrying handles, an M20 pole mount, and a protective steel grille.
The SUB 705-AS MK3 stands out for its versatility, portable design, and ability to effectively enhance the low end of the sound spectrum in professional setups.
Frequency Response: 40 Hz – 120 Hz
Max SPL: 131 dB
Speaker: 1 × 15", 3" voice coil
Enclosure Type: Bass-reflex
Amplification / Electronics
Amplification: Class D
Power: 1400 W Peak / 700 W RMS
DSP:
Bass Motion Control
Soft Limiter
Thermal and RMS Protection
Selectable Crossover (80 Hz / 110 Hz)
Convection Cooling (Fanless)
Connectivity
Inputs: 2 × XLR (Balanced or Unbalanced)
Outputs: 2 × XLR Link
Controls:
Level
EQ
Phase
Crossover
Subwoofer Management Mode
Construction / Mechanical
Material: Baltic birch plywood
Finish: Durable polyurethane coating

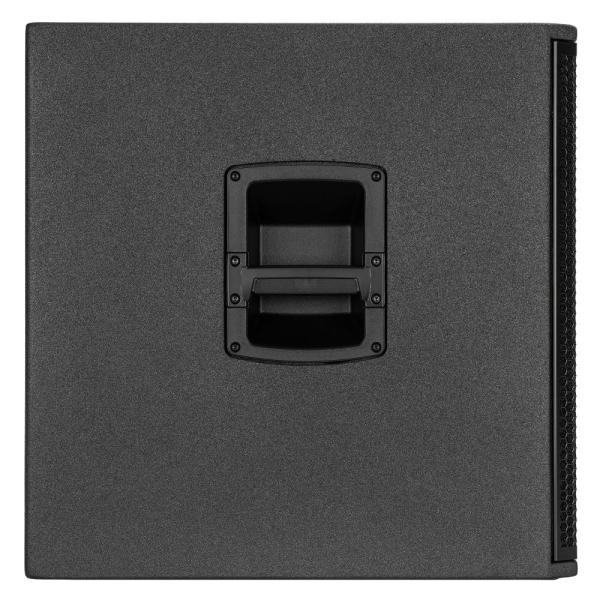

Handles: 2 side handles
Grille: Steel with internal protective foam

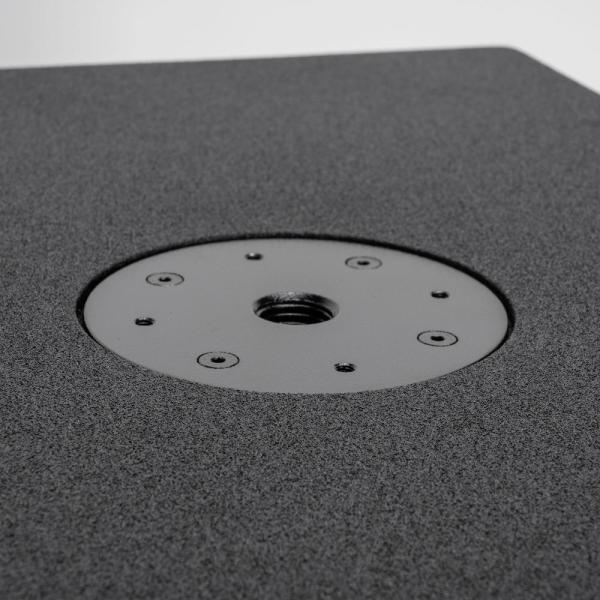

Base: M20 for post/stand mounting
Dimensions (H × W × D): 598 × 420 × 590 mm
Weight: 27.5 kg
