Rme ADI2 PRO EX

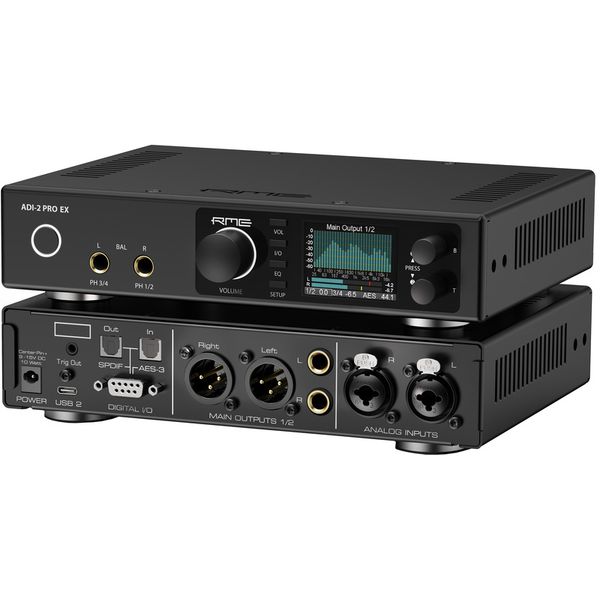

The RME ADI-2 Pro EX is a high-end conversion and monitoring solution designed for professional studios, mastering, and the most demanding audiophile listening systems. A true multifunction device, it combines a reference-grade AD/DA converter, a dual headphone amplifier, a multi-format digital converter (AES, SPDIF, and ADAT), and advanced DSD recording and playback capabilities into a compact form factor.
Capable of operating at sample rates up to 768 kHz, the ADI-2 Pro EX pairs an AKM AK5574 A/D converter with an AKM AK4493 D/A converter to deliver extremely precise audio reproduction, wide dynamic range, and ultra-low distortion.
RME has also optimized its "Extreme Power" headphone output stage to fully leverage the converter's performance, even when driving demanding, low-impedance headphones. Meanwhile, the proprietary "Advanced Balanced" mode provides a direct balanced signal path between the DAC and the headphones, ensuring exceptionally transparent sound.
The ADI-2 Pro EX features a wide range of processing and control tools accessible directly via its high-resolution IPS display, including a 5-band parametric EQ, binaural crossfeed, adjustable loudness, Mid/Side processing, phase inversion, and an RME 30-band spectral analyzer.
Serving as a studio converter, high-end headphone amp, and measurement interface all in one, the RME ADI-2 Pro EX offers a comprehensive solution for reference monitoring, professional mastering, audiophile setups, and audio measurement applications requiring ultra-high-precision conversion.
AK4493 DAC chip
DSD playback and recording
2.5 dB analog headroom and 4 dB digital headroom
Integrated sample rate converter
Safety features and overload indicator for headphones
Balanced mode for headphones
Binaural crossfeed for convincing speaker simulation via headphones
Bass / Treble / Loudness functions
Adjustable filters for A/D and D/A conversion
High-performance DSP for error-free audio data processing
5-band parametric EQ and low-cut filter, independently adjustable for left and right channels
Level meter, power display, status display, volume/gain display
30-band analyzer using DIGICheck technology
Channel status information display
Professional features: phase, stereo width, mono, M/S processing
Sophisticated, discrete reference level switching via relays
All settings can be saved
Audiophile PCB and circuit design with carefully selected components
FPGA-based firmware – updatable via USB
Reduced intrinsic jitter with SteadyClock FS (femtosecond-crystal based)
AutoDark mode – disables backlight for display, buttons, and rotary encoders (standby button remains visible)
9.5" rack format – 1U

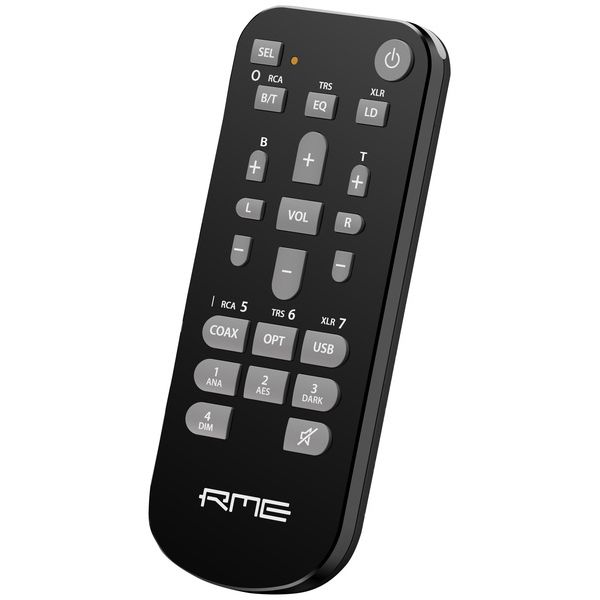

Includes infrared remote control, lockable external power supply, and breakout cable for AES/EBU and coaxial S/PDIF

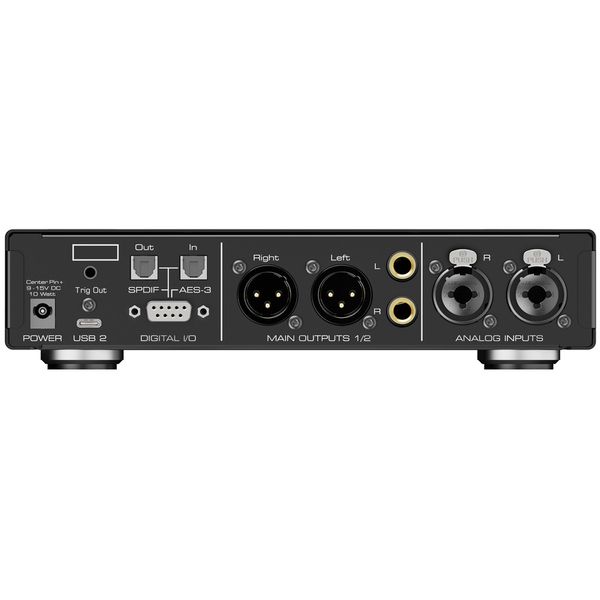

Connections:
2 line inputs via XLR/6.3 mm jack combo sockets
2 line outputs via XLR
2 line outputs via 6.3 mm jack
Coaxial S/PDIF I/O
AES/EBU I/O via XLR
ADAT I/O
USB 2.0 port
Trigger output via mono jack
