Roland VAD 716 Acoustic Design

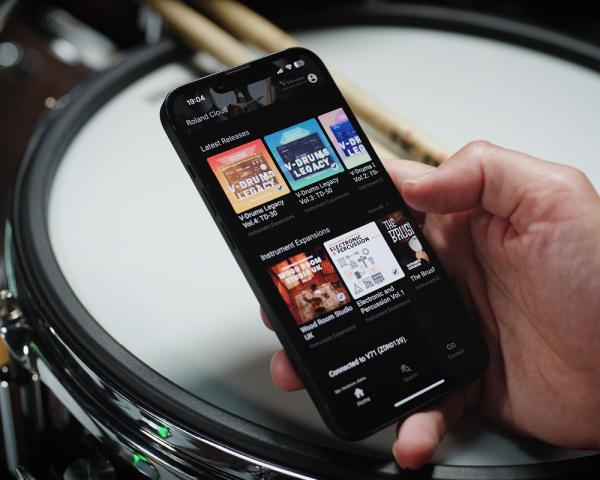

The V-Drums 7 range opens a new chapter in the exciting V-Drums story, enhancing the market-leading electronic drums with a redesigned sound module, next-generation pads and enhanced creative tools. Our best drums yet give you two ways to play: from the module's sound library, created in collaboration with DW, or via DW Soundworks software on the computer. And thanks to its built-in wireless link and Roland Cloud Connect on your smartphone, you can fetch new sounds from an ever-expanding set of V-Drums Instrument Extensions, Kit Packs and more.

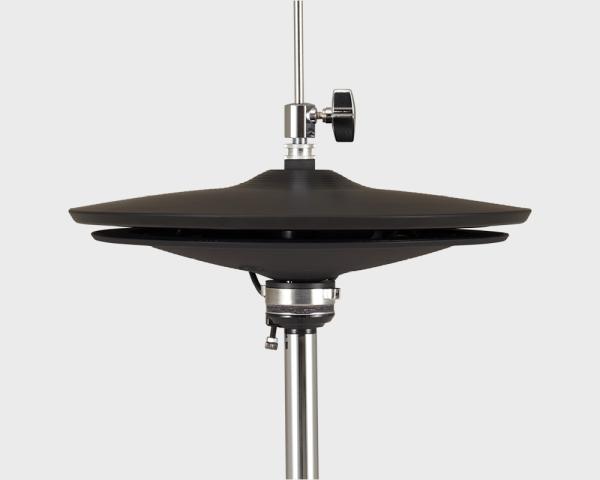

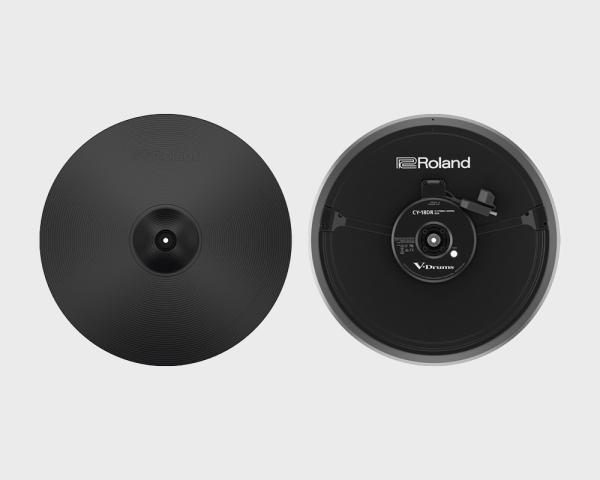

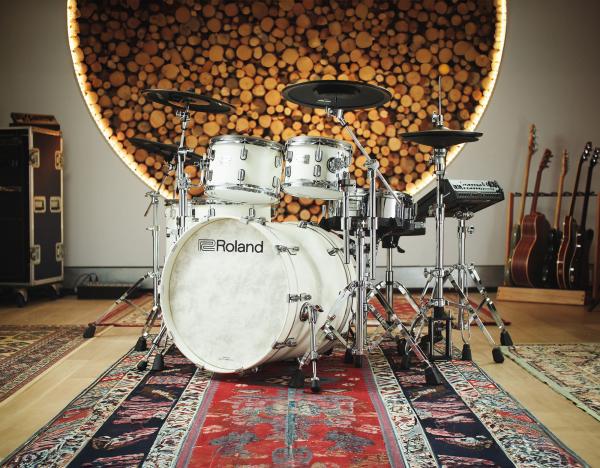

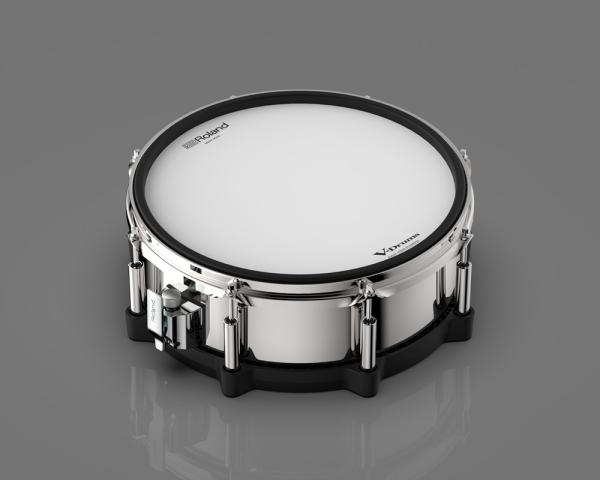

The VAD716 brings the expressive power of the V-Drums 7 range into the V-Drums Acoustic Design kit family. The PD-14DSX takes our digital snare drum technology to new heights with even more precise detection, a timbre trigger and voltage control knob. The KD-22 offers authentic looks and playability with its full wooden body and innovative sensor integrated into the head. This six-drum kit also includes two suspended toms, two bass toms, our famous digital hi-hat and ride cymbals and two 16" V-Cymbals.
-Instruments : More than 1000
-Effect Types :
Layer Transient: each layer
Layer Equalizer: each layer
Pad Equalizer: each pad (by head and rim)
Pad Compressor: each pad (head and rim common)
Overhead Mic Simulator
Room/Reverb/Kit Resonance
Bass Effect: 4 systems (two can be used simultaneously per system/with side chain function), 94 types
Bus Reverb
Master Compressor
Master Equalizer
-User Sample Import : Number of User Sample: Maximum 500 (includes factory preloaded user samples)
- Sound Length (total): 24 minutes in mono, 12 minutes in stereo
- File formats that can be loaded: WAV (44.1 kHz, 16/24 bits)
- Song Player (SD Card)
- Audio File: WAV (44.1 kHz, 16/24 bits), MP3
- Recorder
- Recording Method: Realtime
- Maximum Note Storage: approx. 40,000 notes
- Export File Format: WAV (44.1 kHz, 16 bits)
- Recording Method: Realtime
- Maximum length: 60 min (temporary recording: 1 min)
- File format: WAV (44.1 kHz, 16 bits)

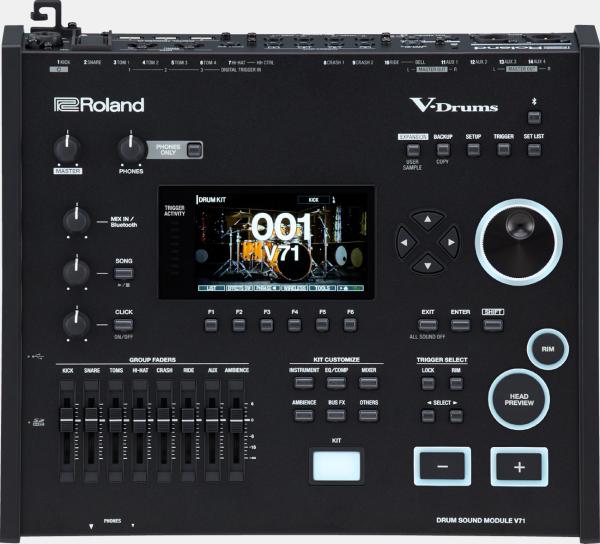

- Display : Graphic color LCD 4.3 inch
- Faders : 8 (KICK, SNARE, TOMS, HI-HAT, CRASH, RIDE, AUX, AMBIENCE)
- External Memory : SD Card (SDHC supported)
- Connectors : Triggers IN jack x 14: 1/4-inch TRS phone type (Exclusion use with digital pad)
- Master Out (Balanced) jacks (L/MONO, R): 1/4-inch phone type, balanced
- Direct Out (Blanced) jack x 8: 1/4-inch TRS phone type, balanced
- Phones jack x 2: Stereo 1/4-inch phone type, Stereo miniature phone type
- MIX IN (STEREO) jack x 1: Stereo 1/4-inch phone type
- MIDI (IN, OUT/THRU) connectors
- USB Computer port: USB Type-C(R) (Class Compliant for Audio and MIDI/ Roland driver for Audio and MIDI)
- Foot SW jack: 1/4-inch TRS phone type
- DC IN jack
- Number of USB Audio Record/Playback Channels
(Record: 32 channels, Playback: 32 channels)
- Generic Mode : Sampling Rate (Original): 44.1 kHz (Record: 2 channels, Playback: 2 channels)
- Power Supply : DC 12V (AC Adaptor)
- Current Draw : 2,400 mA
- Power consumption when in off mode (when the power automatically turns off) : 0.2 W
- Dimensions : 330 (W) x 308 (D) x 110 (H) mm, 13 (W) x 12-1/8 (D) x 4-3/8 (H) inches
- Weight : 4.2 kg (9 lbs 5 oz)
- Accessories : Quick Start, Roland Cloud Connect Setup Guide, Roland Cloud Activation Card, AC Adaptor
