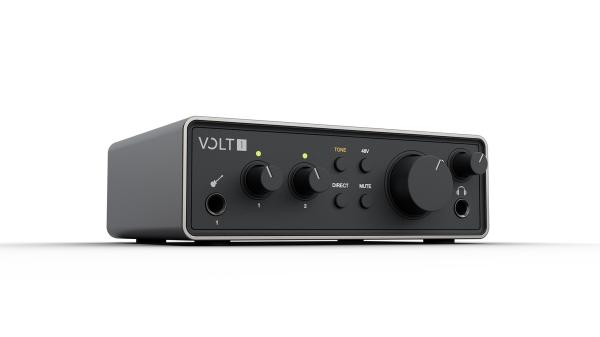

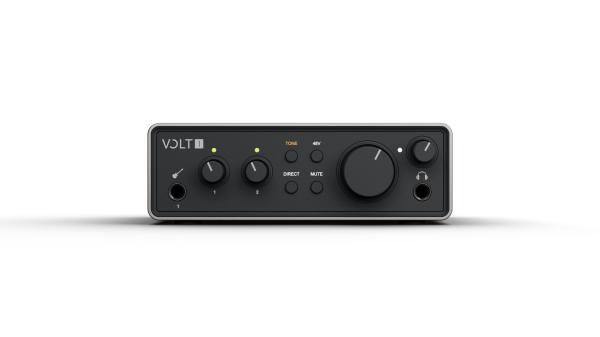

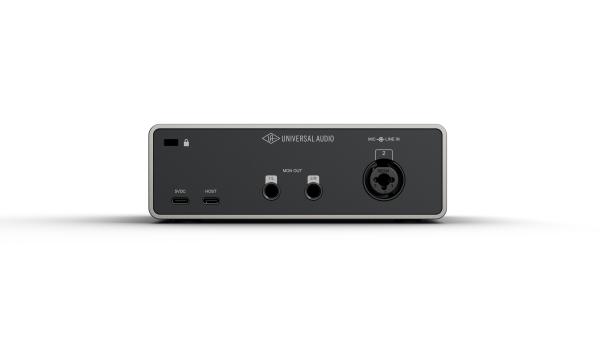

Universal audio Volt 1 G2
Professional-quality sound from the very first take
The Volt 1 Gen 2 lets musicians, singer-songwriters, podcasters, and content creators quickly achieve professional-quality recordings.
Its microphone preamp features 60 dB of gain and three Tone Shaping modes that let you instantly change the character of your takes:
Warmth: to add a warm character inspired by tube circuits
Focus: for a precise and present sound
Shine: to capture the bright character of a British Class A preamp
This lets you shape the sound right at the recording stage, without having to fiddle with multiple settings.
32-bit / 192 kHz Audio Conversion
Thanks to its professional 32-bit / 192 kHz converters, the Volt 1 Gen 2 reproduces every detail of your recordings with great precision.
Its speaker outputs and headphone amp provide detailed monitoring, both during recording and mixing.
Record your voice and instrument simultaneously
The Volt 1 Gen 2 features a mic/line input and a Hi-Z instrument input, allowing you to record a vocal track and a guitar or other instrument simultaneously.
The microphone input also features switchable +48 V phantom power, allowing you to use condenser microphones.
An interface designed for portability
Powered directly via USB, the Volt 1 Gen 2 can be used without an external power supply in compatible setups.
Compact and rugged, it’s easy to take with you to the studio, at home, or on the go with a computer, iPad, or iPhone.
Quick Setup and Intuitive Use
The Volt 1 Gen 2 is compatible with Mac, Windows, iPad, and iPhone, as well as with the leading DAWs on the market.
It works with, among others:
Ableton Live
FL Studio
GarageBand
Logic Pro
Pro Tools
LUNA
On Windows, use requires the ASIO driver available via the UA Connect app.
Built-in Loopback for streaming and podcasts
The Loopback feature allows you to mix the interface’s inputs with audio from your computer.
It is particularly well-suited for:
podcasts
livestreams
content creation
video calls
recordings combining a microphone, instrument, and system audio
A complete software suite included
The Volt 1 Gen 2 comes with a selection of UAD instruments, effects, and production tools, as well as the LUNA digital audio workstation.
Key Features
USB audio interface with 2 inputs / 2 outputs
Professional 32-bit/192 kHz audio conversion
Microphone preamp with 60 dB of gain
Three Tone Shaping modes: Warmth, Focus, and Shine
Microphone/line input
Hi-Z instrument input
Simultaneous recording of vocals and an instrument
+48 V phantom power
Built-in headphone amplifier
Stereo speaker outputs
Loopback function
Compatible with UAD Console
Compatible with LUNA
USB-powered
Compatible with Mac, Windows, iPad, and iPhone
Rugged construction
UAD software suite and third-party software included
Included software
UAD Volt Studio Bundle
LUNA
Topline Vocal Tune
UA 610 Tube Preamp & EQ Collection
Century Tube Channel Strip
Teletronix LA-2A Tube Compressor
UA 1176 Classic FET Compressor
Pure Plate Reverb
Galaxy Tape Echo
Oxide Tape Recorder
Vibe Analog Machines
PolyMAX Synth
Anthem Analog Synth
UAD Lion ’68 Super Lead Amp
UAD Showtime ’64 Tube Amp
Additional Software
Celemony Melodyne Essential
Plugin Alliance Ampeg SVT-VR Classic Bass Bundle
Ampeg SVT-VR Classic
bx_Tuner
bx_Masterdesk_Classic
UAD Volt Studio
LUNA
Topline Vocal Tune
UA 610 Tube Preamp & EQ Collection
Century Tube Channel StripTeletronix LA-2A Tube Compressor
UA 1176 Classic FET Compressor
Pure Plate Reverb
Galaxy Tape Echo
Oxide Tape Recorder
Vibe Analog Machines
PolyMAX Synth
Anthem Analog Synth
UAD Lion ’68 Super Lead Amp
UAD Showtime ’64 Tube Amp
Additional Software
Celemony Melodyne Essential
Plugin Alliance Ampeg SVT-VR Classic Bass Bundle
Ampeg SVT-VR Classic
bx_Tuner
bx_Masterdesk_Classic
UJAM Virtual Drummer DEEP
UJAM Virtual Bassist DANDY
Splice INSTRUMENT
UVI Prisma – Producer Lab
FL Studio Producer Edition – 3 months free
Exclusive Puremix tutorial content
The UAD Volt Studio bundles and third-party software are subject to change without notice.
Simultaneous I/O: 2 inputs / 2 outputs
Mic preamp: 1
Preamp gain: 60 dB
Tone Shaping: Warmth, Focus, and Shine
Speaker outputs: 1 stereo pair
Headphone output: 1 stereo output
USB: USB 2.0
USB connection: USB-C
External power input: 5 V DC / 1 A minimum
Digital / optical connection: No
MIDI: No
A/D and D/A conversion
Digital audio resolution: 32-bit
Sample rates:
44.1 kHz
48 kHz
88.2 kHz
96 kHz
176.4 kHz
192 kHz
Power
USB-powered: Yes
Power consumption at 5 V DC: 2.4 W typical
Maximum power consumption: 3.6 W
On/Off switch: No
Analog inputs and outputs
Instrument input 1
Frequency response: 20 Hz – 20 kHz, ±0.03 dB
A-weighted dynamic range: 116 dB
THD + Noise, 1 kHz at -1 dBFS: -101 dB / 0.0009%
Maximum input level: 12.5 dBu
Input impedance: 1 MΩ
Available gain: 60 dB
Connector: 1/4" (6.35 mm) unbalanced TS jack
Microphone input 2
Frequency response: 20 Hz – 20 kHz, ±0.1 dB
A-weighted dynamic range: 119 dB
THD + Noise, 1 kHz at -1 dBFS: -108 dB / 0.0004%
Maximum input level: 14.5 dBu
Input impedance: 2 kΩ
Available gain: 60 dB
Phantom power: +48 V switchable
Connector: XLR/jack combo, pin 2 positive
Line input 2
Frequency response: 20 Hz – 20 kHz, ±0.05 dB
A-weighted dynamic range: 119 dB
THD + noise, 1 kHz at -1 dBFS: -108 dB / 0.0004%
Maximum input level: 22 dBu
Input impedance: 10 kΩ
Available gain: 60 dB
Connector: 6.35 mm TRS balanced or TS unbalanced jack
Speaker outputs
Frequency response: 20 Hz – 20 kHz, ±0.04 dB
A-weighted dynamic range: 122 dB
THD + noise, 1 kHz at -1 dBFS: -111 dB / 0.0003%
Maximum output level: 20.2 dBu
Output impedance: 100 Ω
Connectors: 6.35 mm TRS balanced, DC-coupled
Headphone output
Frequency response: 20 Hz – 20 kHz, ±0.1 dB
A-weighted dynamic range: 121 dB
THD + noise, 1 kHz at -1 dBFS into 300 Ω: -108 dB / 0.0004%
Maximum power into 32 Ω: 52 mW
Maximum power into 300 Ω: 27 mW
Connector: 6.35 mm stereo TRS unbalanced jack, DC-coupled
System requirements
macOS and Windows
Available USB 2.0 port or higher
USB cable Included
Intel, AMD, or Apple Silicon processor
Windows 10 (64-bit) or later
macOS 12 Monterey or later
Internet connection required to download software
iPad and iPhone
iPadOS / iOS 16 or later
Apple Lightning to USB adapter required for devices with a Lightning port
No Lightning adapter required for iPhones and iPads with a USB-C port
DAW Compatibility
Compatible with major Digital Audio Workstations, including:
Ableton Live
FL Studio
GarageBand
Logic Pro
Pro Tools
LUNA
