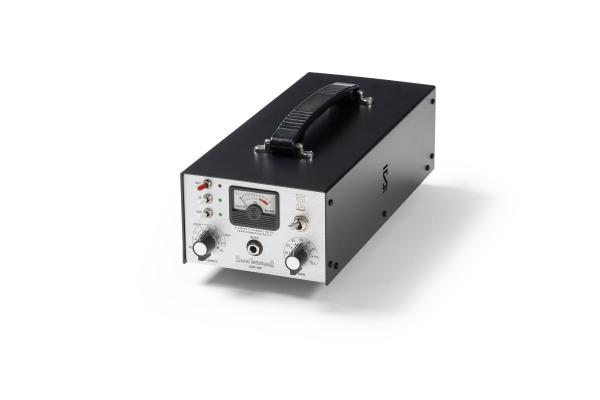

Warm audio JUDE-MP
The Warm Audio JUDE-MP brings the character of Sound Techniques A-Range console preamps to a single-channel format. Developed in collaboration with Sound Techniques, it utilizes the discrete Class-A 3035 amplifier circuit to capture the depth, presence, and musicality of historic British consoles. It is equally well-suited for recording vocals, acoustic guitars, pianos, and guitar amplifiers.
At the heart of its design, a 9-position Z-Match selector allows for the adjustment of the interaction between the microphone and the preamp. By altering impedance conditions and gain, this setting shapes the signal's transient response, frequency balance, and harmonic character, offering a range of sonic nuances to tailor the capture to the specific microphone and source.
The JUDE-MP combines custom-wound CineMag USA transformers with high-quality Nichicon and Wima capacitors. Features such as 48V phantom power, polarity reversal, and line-level switching round out its studio capabilities.
Circuitry: Discrete Class A amplification, inspired by Sound Techniques A-Range consoles
Z-Match: 9-position impedance selector to adjust the interaction between the microphone and the preamplifier
Preamp gain: 65 to 76 dB (40 Ω source impedance)
Mic input impedance: 60 Ω / 200 Ω / 1.5 kΩ
Line input impedance: 10 kΩ
Transformers: Custom-wound CineMag USA
Capacitors: Audio-grade Nichicon and Wima
EIN: -128 dBu (A-weighted)
Self-noise: -99 dBu (A-weighted)
THD: 0.008%
Frequency response: 10 Hz – 25 kHz (+/- 2 dB)
Phantom power: Switchable 48 V
Polarity reverse: Yes
Line level switch: Yes
Level indicator: VU meter

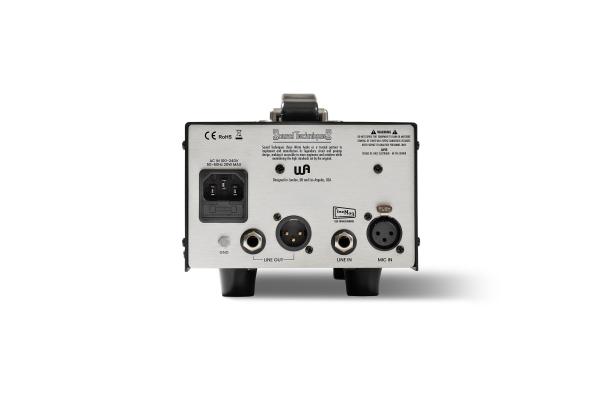

Inputs: XLR mic and 6.35 mm TS/TRS jack
Outputs: XLR and 6.35 mm TRS jack (line level)
Construction: Aluminum front panel, steel chassis
Dimensions: 132 x 142 x 345 mm
Weight: 2.95 kg
