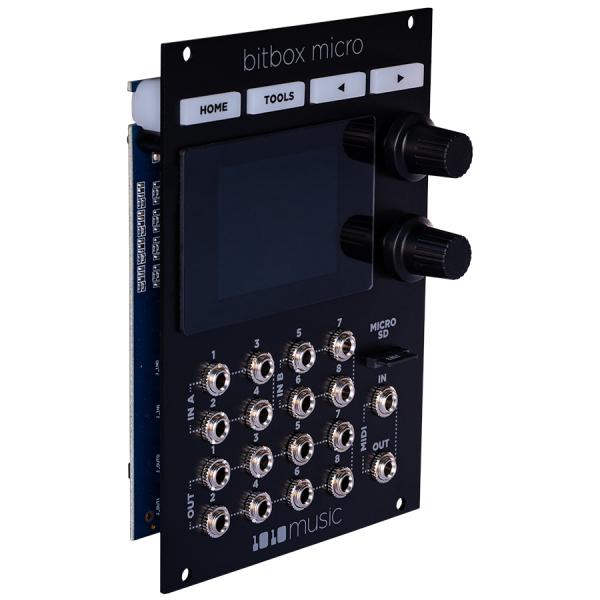

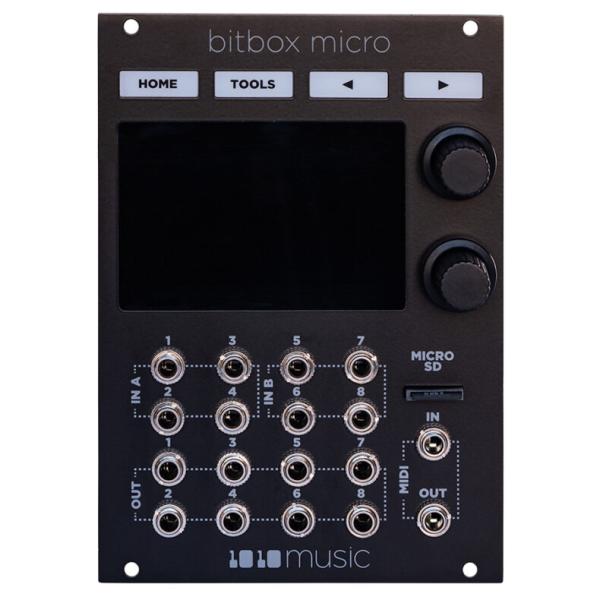

1010music Bitbox micro Black Edition
ABOUT THE PRODUCT
The Bitbox micro Black Edition packs an ultra-compact touchscreen sampler into just 18 HP.
Despite its small size, it offers 8 stereo sample pads, advanced polyphonic playback and great control flexibility.
Samples can be recorded directly into the module or loaded from a microSD card. Sounds can be played via the 2" touchscreen, CV or MIDI, enriched with effects and routed to three stereo outputs.
Complete configurations can be saved as an unlimited number of presets on microSD card. Equally at home in the studio or live, the bitbox micro is a powerful, compact solution for Eurorack sampling.
FEATURES
Eurorack Sampler
Playback of up to 24 stereo voices (if all samples fit in the 64MB internal memory)
or up to 8 stereo streams (files up to 4GB) directly from the microSD card
8 stereo sample pads per preset for single or multisampled samples, clips, slicing, or granular sounds
Parameters controllable via CV or MIDI (with MIDI Learn function)
Internal resampling of the Master output
Automated multisample creation via CV or MIDI
Freely configurable 8 inputs
Freely routed pads to 3 stereo audio outputs
All inputs and outputs DC-coupled
2" touchscreen
Power supply: +12V 400mA / -12V 0mA / 5V 0mA
Format: Eurorack module
Width: 18"
Euroguitar Reference : 121489
