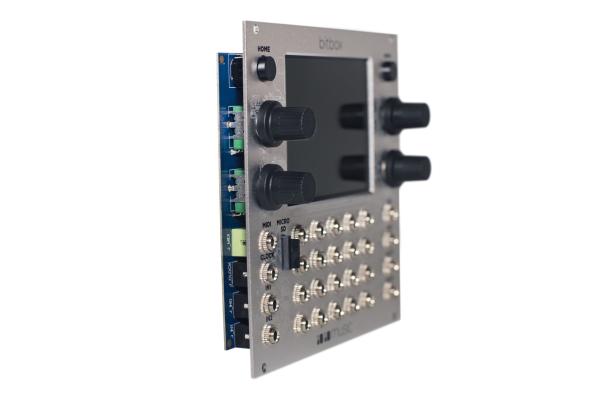

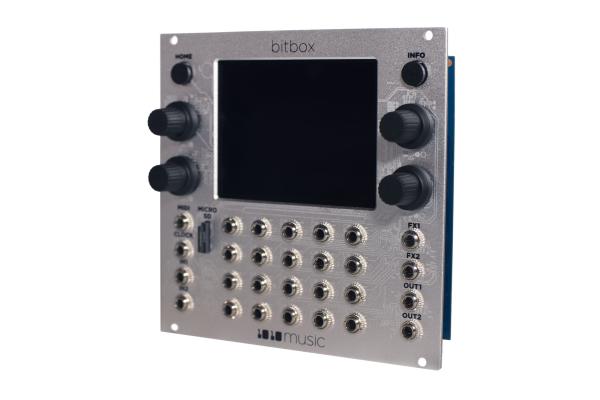

1010music bitbox mk2
ABOUT THE PRODUCT
The bitbox MK2 is the direct successor to the very popular bitbox.
With double the processing power and an improved touchscreen, it offers even more creative possibilities, including additional internal effects such as delay and reverb.
Its 3.5" touchscreen makes it easy to select, edit and process samples, while the numerous CV inputs enable in-depth, expressive work with control voltages.
FEATURES
Eurorack Module
Sampler and Looper
Playback of up to 24 stereo voices (if all samples fit in the 64MB internal memory)
or up to 8 stereo streams (files up to 4GB) directly from the microSD card
16 stereo sample pads per preset for single or multisampled samples, clips, slicing, or granular sounds
Parameters controllable via CV or MIDI (with MIDI Learn function)
Definable recording length synchronized to the tempo
Internal resampling of the Master output without additional cabling
Automated multisample creation via CV
DC-coupled Eurorack-level inputs and outputs
Up to 8 CV inputs for modulating sample parameters
16 dedicated Gate inputs to trigger the 16 sample pads
Freely routed pads to the two stereo outputs
Dedicated Clock input
Internal effects: Delay and Reverb
Touchscreen 3.5"
24-bit ADC/DAC Converters
Power Supply: +12V 400mA / -12V 0mA / 5V 0mA
Format: Eurorack Module
Width: 26 HP
Euroguitar Reference : 121484
