Antelope audio Discrete 8
This product is not available anymore

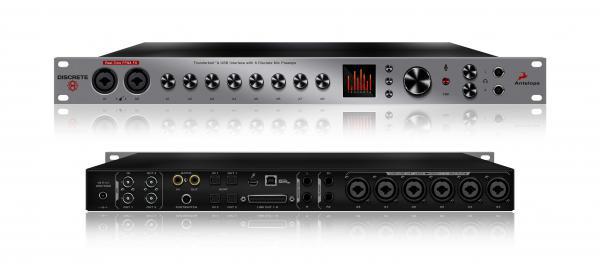

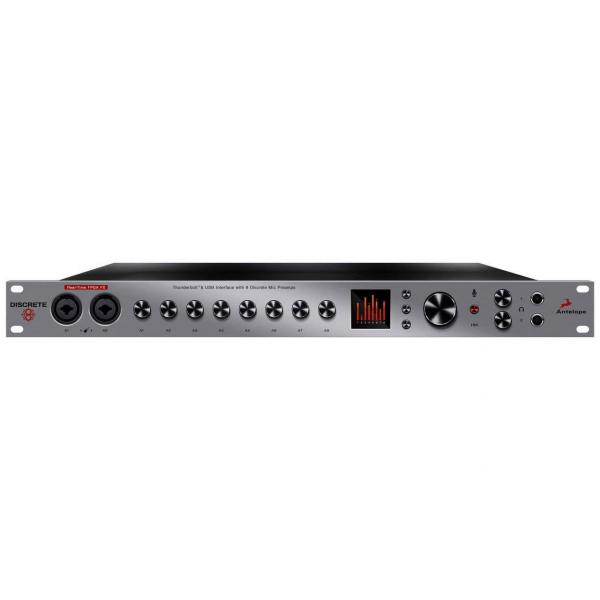

Antelope Audio’s Discrete 8 Microphone Preamp Interface brings a new level of sound quality and power to home studios and mobile recordists. It comes with 8 console grade 6-transistor discrete preamps, 121 db dynamic range conversion and rock solid clocking.
Discrete 8 features all of the Antelope Audio premier real-time FPGA FX, including authentic models of iconic gear from BAE, Lang, Gyraf Audio and many more.
The Antelope AFX platform is a rapidly expanding hardware modeling engine. Discrete 8 includes Accusonic 3D microphone and preamp models, guitar amps, transformer and tube FX, and a huge selection of classic vintage gear, which are now accessible in the DAW via the new ConnectAFX Plugin.
Analog Inputs
6 x Mic / Line Inputs
2 x Mic / Line / Hi-Z Inputs
Analog Outputs
1 x Monitor Out on TRS 1/4 Jacks, +20 dBu max
1 x ReAmp Out on TRS 1/4 Jacks
1 x Line Outs on DB25, +20 dBu max
2 x Stereo Headphone Outputs
Mic Preamp
EIN: -128 dBu (A-weighted)
Dynamic Range: -121 dB (A-weighted)
THD: -106 dB
Max input: +18 dBu
Gain Range: 65 dB
D/A Monitor Converter
Dynamic Range: 124 dB
THD + N: -101 dB
A/D Converter
Dynamic Range: 121 dB
THD + N: -112 dB
D/A Converters(Line Out)
Dynamic Range: 121dB
THD + N: – 100dB
DIGITAL
Digital Inputs
2 x ADAT (up to 16CH)
1 x S/PDIF
Digital Outputs
2 x ADAT (up to 16CH)
1 x S/PDIF
USB I/O
USB 2.0 Hi-Speed;
Data stream up to 480 Mbits/192kHz, 24 channels I/O, Type B
Thunderbolt™ I/O
1 x Thunderbolt, 32 channels I/O
CLOCKING
Word Clock Input
1 x Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz
Word Clock Outputs
3 x Outputs @ 75 Ohms 3Vpp on BNC 32 – 192kHz
Clocking System
4th Generation Acoustically Focused Clocking
64-bit DDS
Sample Rates (kHz)
32, 44.1, 48, 88.2, 96, 176.4, 192
Other
Operating Temperature
0-50°C, 32-122°F
Weight (Approx)
3.0 kg/ 6.61 lbs
Dimensions (Approx)
Width: 483 mm / 19”
Height: 44 mm / 1.7”
Depth: 220 mm /8.6”
Power Consumption
20 Watts
