Antelope audio ZEN QUADRO

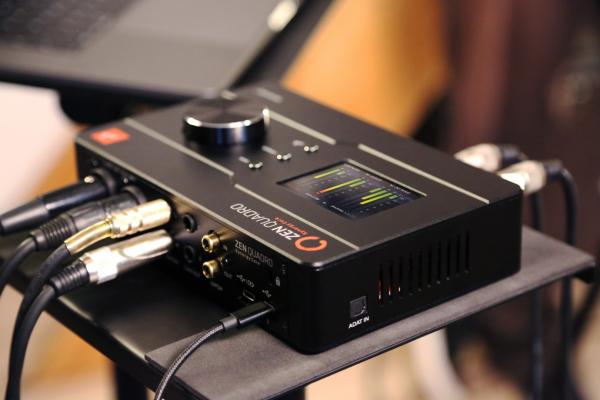

The Zen Quadro is an audio interface offered by Antelope Audio.
Welcome to the world of high-resolution audio, where creativity meets cutting-edge technology. Let me introduce you to the Zen Quadro, a revolutionary audio interface designed by Antelope Audio for sound enthusiasts and demanding professionals.
Highlights of the Zen Quadro:
Exceptional audio quality: Featuring AD/DA converters from Antelope Audio's flagship Galaxy range, the Zen Quadro delivers studio-grade sound quality with an impressive dynamic range of 130 dB at 24-bit/192 kHz.
Discrete preamps: The four discrete preamps of the Zen Quadro, inspired by iconic analog consoles, ensure precise sound capture with minimal noise and up to 75 dB of gain.
Real-time DSP + FPGA processing: Thanks to Synergy Core technology, enjoy 37 legendary DSP + FPGA effects for uncompromising recording, streaming, and live performances, with near-zero latency and no load on your computer.
Dual USB design: The two USB-C ports offer ultimate flexibility, allowing simultaneous connections with different devices, as well as charging your mobile device while using the interface.
Enhanced standalone functionality: Ideal for live performances, the Zen Quadro offers full standalone operation with an intuitive color display for total control, as well as the ability to recall settings and effect chains in real-time.
Features of the Zen Quadro:
Unmatched AD/DA conversion and synchronization
Next-generation converters and Antelope Audio's AFC™ synchronization technology ensure exceptional audio quality with immersive stereo imaging.
Crystal-clear preamps
The Zen Quadro's discrete preamps provide precise sound capture and high gain to meet the needs of the most demanding microphones.
Synergy Core: The magic of DSP and FPGA processing
Enjoy 37 legendary effects to enrich your sound in real-time, without compromising performance.
Revolutionary dual USB design
The two USB-C ports offer unmatched versatility for seamless integration into your audio setup.
Enhanced standalone functionality
Take your studio with you thanks to full standalone operation and USB-C connectivity, ideal for live performances and touring.
Flexible connectivity for your entire studio
With up to 14 simultaneous inputs and a variety of I/O options, the Zen Quadro adapts to all your studio needs.
Conclusion:
The Zen Quadro not only offers exceptional sound quality but also unmatched versatility and ease of use to meet all your audio production needs. Discover a new dimension of creativity with Antelope Audio's ultimate audio interface.
Zen Quadro Synergy Core.
USB-C cable.
USB-C to USB-A adapter.
Quick start guide.
Real-time Included Effects:
List of 22 guitar amps and cabinets, 5 compressors and limiters, 4 equalizers, 2 preamps, 2 special processing effects, 1 reverb effect, 1 guitar tuner.
Analog Inputs: 2 x Mic/Line Inputs (continuously coupled), 2 x Mic/Line/Hi-Z Inputs (continuously coupled).
Analog Outputs: 2 x Monitor Outputs on TRS jacks, +20 dBu max (continuously coupled), 2 x Line Outputs on TRS jacks, +20 dBu max (continuously coupled), 2 x Stereo Headphone Outputs.
Mic Preamp: EIN: -128 dBu (A-weighted), Max Input: +20 dBu, Max Gain: 75 dB.
A/D Converter: Dynamic Range: 122 dB, THD + N: -116 dB.
D/A Converter for Monitor: Dynamic Range: 130 dB, THD + N: -115 dB.
D/A Converter (Line Output): Dynamic Range: 130 dB, THD + N: -115 dB.
Digital Inputs: 1 x ADAT Input (up to 8 channels @ 44.1/48 kHz), 1 x S/PDIF (2 channels).
Digital Outputs: 1 x S/PDIF (2 channels).
USB 1: USB 2.0 Type-C Connector, 16 channels of playback and recording, 24 bits/192 kHz, Compatible with Windows and macOS.
USB 2: USB 2.0 Type-C Connector, 2 channels of playback and recording, 24 bits/192 kHz, Supports reverse charging for mobile devices, Compatible with Windows, macOS, Android*, and iOS* devices (*Compatibility depends on power delivery and device specifications).
Synchronization System: 4th generation Acoustically Focused Clocking, 64-bit DDS.
Sampling Frequencies (kHz): 32, 44.1, 48, 88.2, 96, 176.4, 192.
Operating Temperature: 0-50°C, 32-122°F.
Weight (approximate): 0.9 kg / 1.98 lbs.
Device Dimensions (approximate): Width: 210 mm / 8.2", Height: 58 mm / 2.3", Depth: 136 mm / 5.3".
Box Dimensions: Width: 287 mm / 11.3", Height: 92 mm / 3.6", Depth: 187 mm / 7.4".
