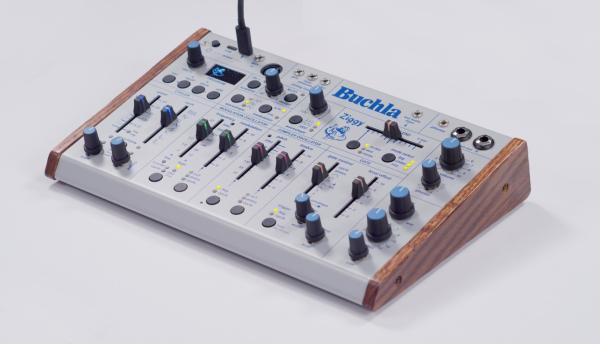

Buchla Ziggy
The Buchla Ziggy is a new electronic instrument built around the renowned Buchla Complex Oscillator concept. Conceived as a true instrument rather than a simple synthesizer, Ziggy offers an immediate and intuitive musical experience, without the need for traditional patches. Through a gestural approach to modulation and composition, it allows for the rapid creation of rich and evolving sonic textures.
True to the Buchla legacy, Ziggy modernizes West Coast synthesis with a simplified interface and a performance-oriented workflow. It can be used on its own to compose sequences and create sounds, but also integrates seamlessly with keyboards like the Buchla LEM 218, MIDI controllers, DAWs, and external modular systems via USB, MIDI, and 1V/octave CV.
Sonically, Ziggy combines a fully analog audio architecture with advanced digital control. Its analog oscillators and low-pass gate deliver Buchla’s signature organic character, while digital control allows for preset saving, complex modulations, and quick access to parameters. An integrated effects processor enriches the sound with reverbs, delays, choruses, distortions, and other creative processing.
The instrument incorporates several original modulation sources, including the Cycler, a hybrid modulator capable of functioning as a clock, envelope, LFO, or random number generator. Modulations are assigned simply via illuminated knobs and sliders, without complex wiring. This approach encourages sonic exploration, happy accidents, and seamless musical interaction.

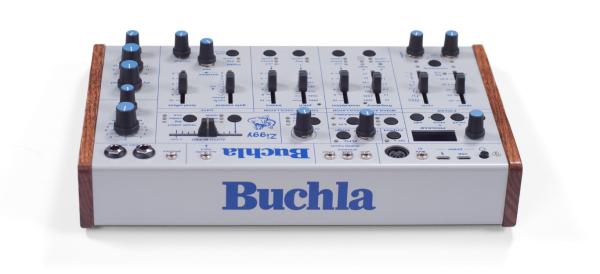

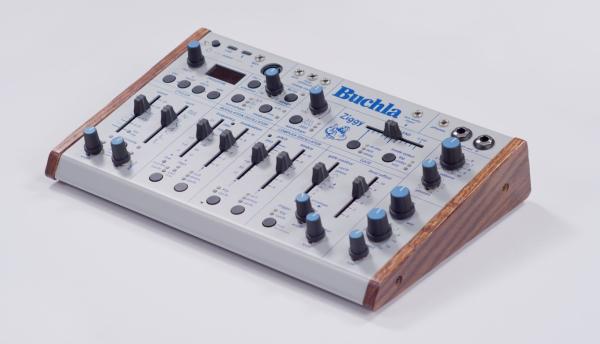

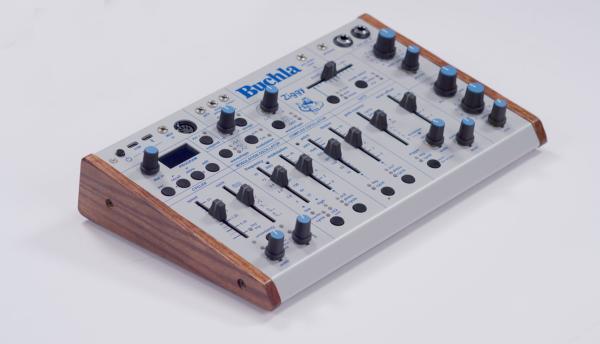

Musically, Ziggy covers a wide range of textures: from deep bass and organic percussion to experimental leads, evolving pads, and the abstract sounds typical of the Buchla sound. Its compact oak and steel design, USB-C power supply, and comprehensive connectivity make it ideal for both studio and live performance.

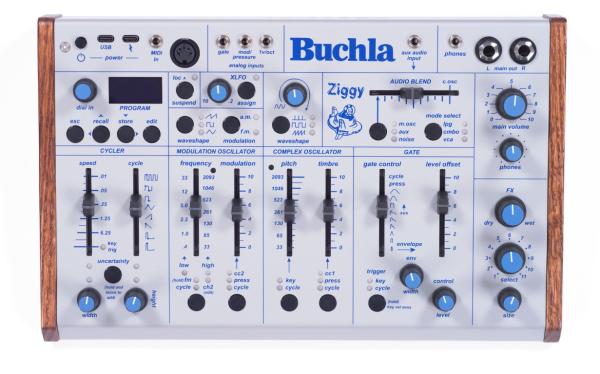

All-Analog Complex and Modulation Oscillators
Modulation Oscillator Usable in Low Frequency or Audio
Waveforms: Saw, Square, Triangle
Complex Oscillator Based on a Sine Wave with:
FM and AM
Wavefolding Timbre
Morphing Spike / Square / Saw
Modulation & Synthesis
Multi-Function Cycler Modulator
Uncertainty Generator
Additional XLFO

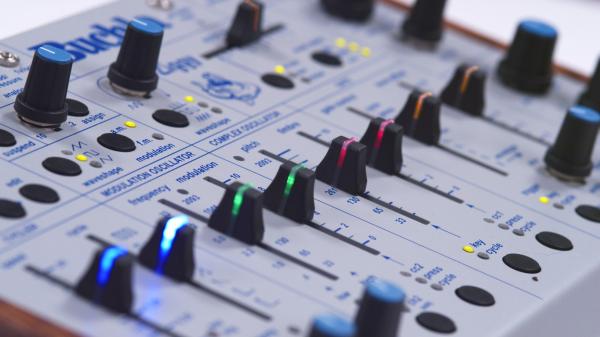

Modulation Assignment Without Patch Cables

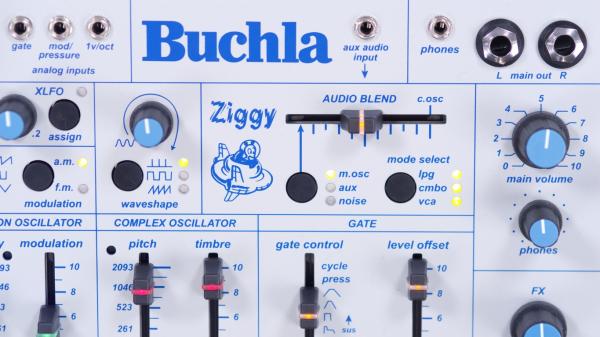

Morphable Envelopes for the Low Pass Gate
Connectivity

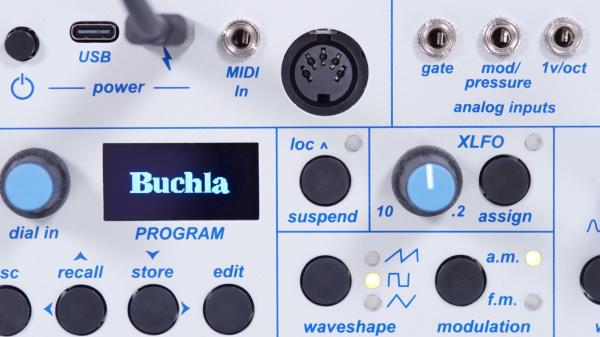

MIDI via USB-C, USB 2.0, 5-pin DIN, and Type-A Mini
CV and Gate Inputs/Outputs
Eurorack and Buchla LEM 218 Compatible
External 3.5 mm Mono Audio Input
Built-in Effects
Reverb
Delay
Chorus
Pitch Shift
Flanger
Wet/Dry Control and "Size" Macro
Advanced Features
Over 100 User Presets and Factory
Western and non-Western ranges
Pitch slider quantization
Web application via WebMIDI browser
Firmware update and patch archiving via browser
Audio & power
3.5 mm stereo headphone output
Two 6.35 mm jack outputs

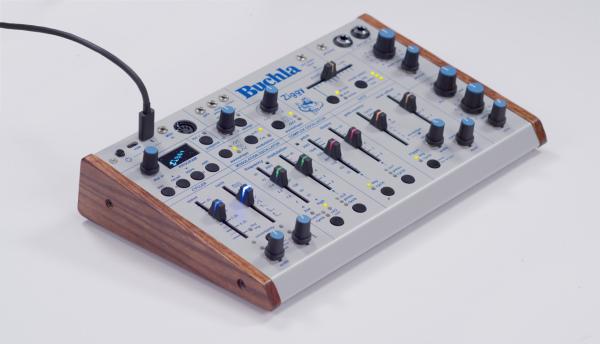

USB-C power supply compatible with power bank, computer, or AC adapter
Dimensions
Product
Weight: 2.31 kg
Dimensions: 30.7 × 19.6 × 7.1 cm
Box
Weight: 2.58 kg
Dimensions: 37.5 × 24.1 × 9.8 cm
Euroguitar Reference : 122944
