Carver pro Saturn II + Casque Studio + Paire d'enceinte
ABOUT THE PRODUCT

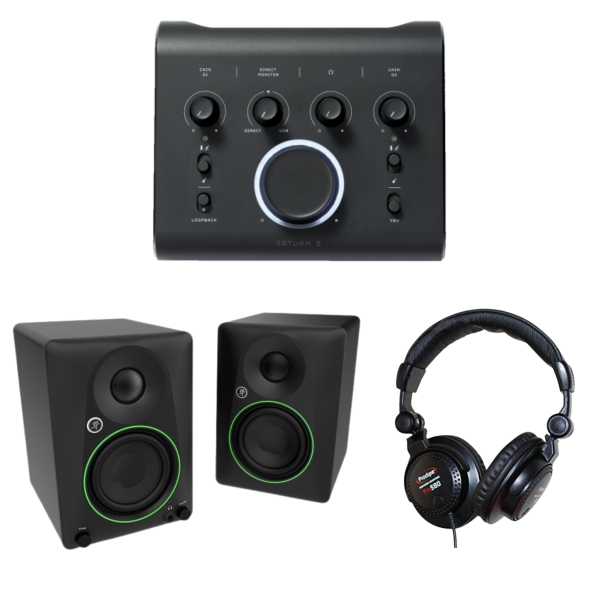

The Saturn II is a compact, elegant USB audio interface from Carver Pro, designed for demanding musicians and designers. It comes with closed studio headphones (Prodipe PRO580) and a pair of speakers (Mackie CR4.5).
FEATURES
Saturn II:
Inputs:
2 x Combo XLR/TRS Jack (mic or instrument)
1 x High-impedance instrument input (1 MΩ)
Outputs:
2 x TRS line outputs (6.3 mm)
1 x Headphone output (6.3 mm) with independent volume control
Features:
USB/DIRECT selector for latency-free monitoring
Loopback button to activate software audio feedback
Audio resolution: 24-bit/192 kHz
Frequency response: 20 Hz – 20 kHz
Signal-to-noise ratio:
Mic/Line: 106 dB
Headphones: 102 dB
Distortion (THD+N):
Mic/Line/Instrument: 0.005%
Headphones: 0.05%
Dimensions: 12.5 x 11.3 x 3.3–6 cm (with (potentiometer)
Weight: 330 g
Box contents:
Carver Saturn II interface
USB-C cable
Steinberg Cubase LE license
MACKIE CR4.5 - PAIR:
- Amplification: Active (amplified)
- Bluetooth: No
- Category: Monitoring
- Controls: Volume
- Color: Black
- Speaker diameter: 4.5"
- Dimensions (mm): 226 x 211 x 155
- Inputs: 2 x jack, 2 x RCA
- Crossover frequency: 3 kHz
- Number of channels: 2 channels
- Weight (kg): 4.60 kg
- Power (W): 50 W
- Power/Type: RMS
- Frequency response: 55 Hz - 20 kHz
- Max SPL: 101 dB
- Outputs: Headphone mini-jack Stereo
- Speaker cabinet: MDF
- Tweeter: 1", natural silk dome
- Type: Active speaker
- Additional specifications:
- Silk dome tweeter with protective grille
- 4.5" woven woofer
- Frequency response: 55 Hz – 20 kHz
- Peak SPL: 100 dB
- Total system power: 50 watts peak Class D amplifier
- Crossover point: 3.0 kHz
- Tone control
- Position selector with desktop and bookshelf modes
- TRS, RCA, and 3.5 mm mini-jack inputs
- Input type: 6.35 mm female balanced/unbalanced jack / unbalanced RCA / unbalanced 3.5 mm mini-jack
- Built-in headphone output
- Power requirements: AC 120 V, 60 Hz or AC 220–240 V 50/60 Hz or AC 100 V, 50/60 Hz
Included accessories:
3.5 mm mini-jack cable
3.5 mm mini-jack to RCA cable
Speaker wires
Power cord
Adhesive foam feet
Quick start guide
PRODIPE PRO580:
Type: Dynamic
Impedance: 32Ω
Sensitivity: 105dB±3
Frequency response: 20Hz-20kHz
Maximum input power: 200mW
Cable length: Approx. 3m
3.5 mm stereo jack + 6.3 mm adapter
Euroguitar Reference : 120247
Inputs:
2 x Combo XLR/TRS Jack (mic or instrument)
1 x High-impedance instrument input (1 MΩ)
Outputs:
2 x TRS line outputs (6.3 mm)
1 x Headphone output (6.3 mm) with independent volume control
Features:
USB/DIRECT selector for latency-free monitoring
Loopback button to activate software audio feedback
Audio resolution: 24-bit/192 kHz
Frequency response: 20 Hz – 20 kHz
Signal-to-noise ratio:
Mic/Line: 106 dB
Headphones: 102 dB
Distortion (THD+N):
Mic/Line/Instrument: 0.005%
Headphones: 0.05%
Dimensions: 12.5 x 11.3 x 3.3–6 cm (with (potentiometer)
Weight: 330 g
Box contents:
Carver Saturn II interface
USB-C cable
Steinberg Cubase LE license
MACKIE CR4.5 - PAIR:
- Amplification: Active (amplified)
- Bluetooth: No
- Category: Monitoring
- Controls: Volume
- Color: Black
- Speaker diameter: 4.5"
- Dimensions (mm): 226 x 211 x 155
- Inputs: 2 x jack, 2 x RCA
- Crossover frequency: 3 kHz
- Number of channels: 2 channels
- Weight (kg): 4.60 kg
- Power (W): 50 W
- Power/Type: RMS
- Frequency response: 55 Hz - 20 kHz
- Max SPL: 101 dB
- Outputs: Headphone mini-jack Stereo
- Speaker cabinet: MDF
- Tweeter: 1", natural silk dome
- Type: Active speaker
- Additional specifications:
- Silk dome tweeter with protective grille
- 4.5" woven woofer
- Frequency response: 55 Hz – 20 kHz
- Peak SPL: 100 dB
- Total system power: 50 watts peak Class D amplifier
- Crossover point: 3.0 kHz
- Tone control
- Position selector with desktop and bookshelf modes
- TRS, RCA, and 3.5 mm mini-jack inputs
- Input type: 6.35 mm female balanced/unbalanced jack / unbalanced RCA / unbalanced 3.5 mm mini-jack
- Built-in headphone output
- Power requirements: AC 120 V, 60 Hz or AC 220–240 V 50/60 Hz or AC 100 V, 50/60 Hz
Included accessories:
3.5 mm mini-jack cable
3.5 mm mini-jack to RCA cable
Speaker wires
Power cord
Adhesive foam feet
Quick start guide
PRODIPE PRO580:
Type: Dynamic
Impedance: 32Ω
Sensitivity: 105dB±3
Frequency response: 20Hz-20kHz
Maximum input power: 200mW
Cable length: Approx. 3m
3.5 mm stereo jack + 6.3 mm adapter
Euroguitar Reference : 120247
