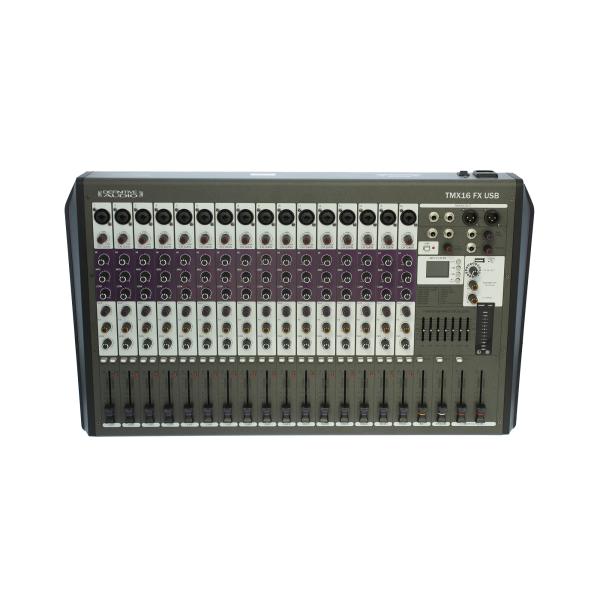

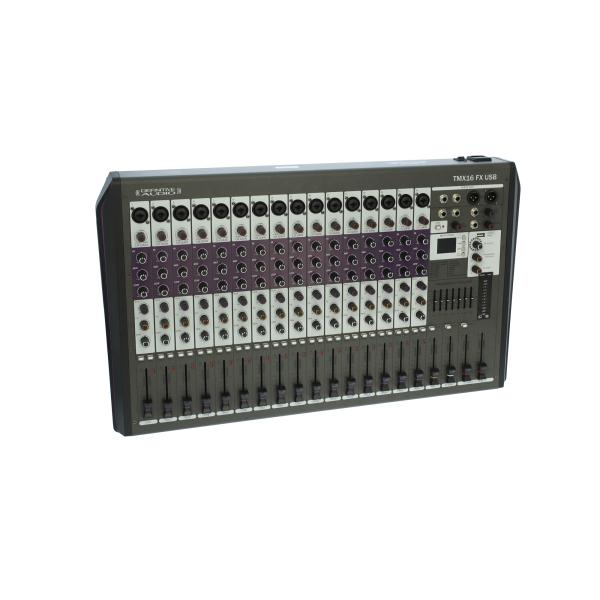

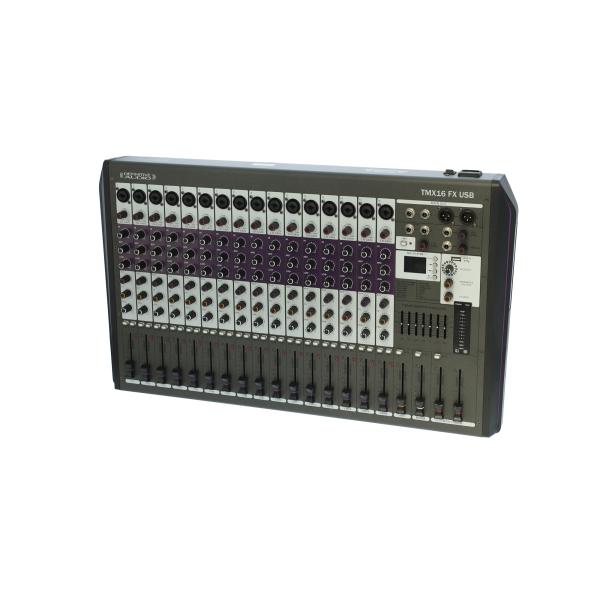

Definitive audio TMX16 FX USB
Definitive Audio introduces the TMX16 FX USB, a full-featured and versatile analog mixing console designed for live performances, fixed installations, events, rehearsals, home studios, and sound reinforcement applications requiring a large number of inputs.
The TMX16 FX USB features 16 MIC/LINE channels, allowing you to easily connect microphones, instruments, or compatible line-level sources. Each channel is equipped with a gain control, a 3-band HIGH/MID/LOW EQ, an AUX send, an FX level control, a PAN control, as well as MUTE and PFL functions for precise mix control.
Designed for more comprehensive setups, it features a DSP effects section with 16 presets, a built-in MP3 player, a USB input, a BT/USB section with a dedicated fader, a 7-band graphic equalizer, and connectivity suitable for both live performances and fixed installations.

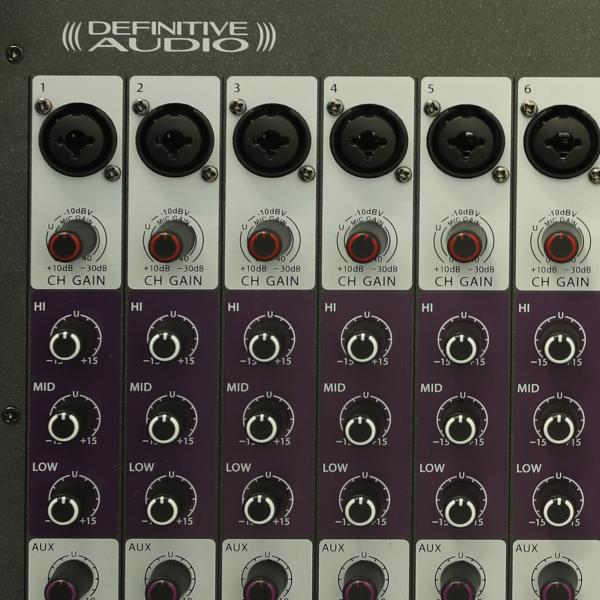

- Per-channel gain control
- 3-band EQ per channel: HIGH / MID / LOW
- AUX send per channel
- FX level per channel
- PAN control per channel
- MUTE and PFL functions per channel

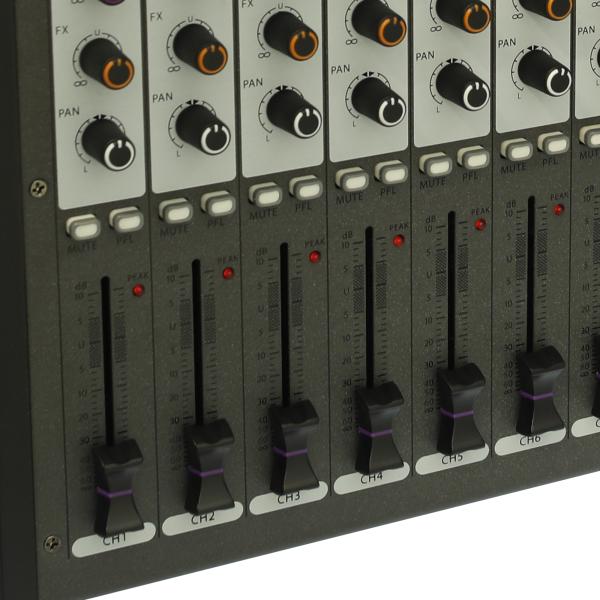

- Linear faders for channels, the FX section, the BT/USB section, and the main output

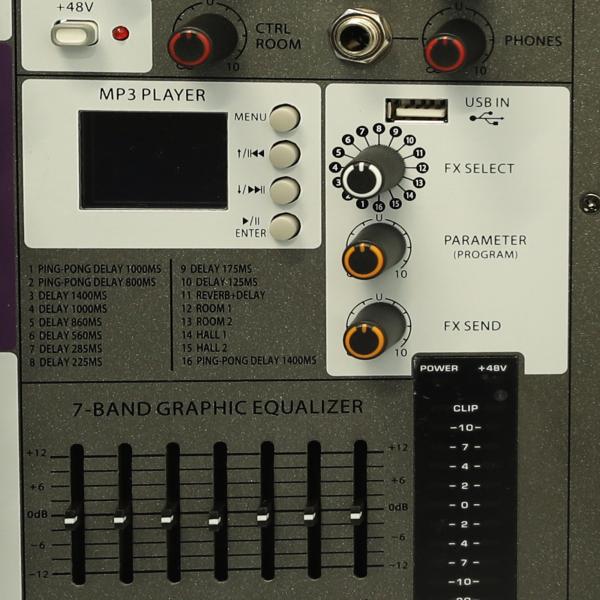

- DSP processor with 16 preset effects
- FX Select, Parameter, and FX Send controls
- 7-band graphic equalizer: 63 Hz, 165 Hz, 420 Hz, 1.2 kHz, 3 kHz, 6.5 kHz, 16 kHz
- Built-in MP3 player with playback controls
- Front-panel USB input
- BT/USB section with dedicated fader
- MAIN OUT L/R outputs
- AUX SEND output
- CTRL ROOM outputs
- PHONES headphone output
- PEAK indicators per channel
- +48 V phantom power
- Frequency response: 20 Hz – 22 kHz ±1 dB
- Maximum input level: Mic +10 dBu / Line +22 dBu
- THD+N: < 0,05 % à 1 kHz
- Bruit EIN : -122 dBu
- CMRR : > 75 dB at 1 kHz
- Crosstalk: > 80 dB at 1 kHz, fader closed
- Maximum output level: XLR +22 dBu, TRS +20 dBu
- Power supply: 100–240 V, 50/60 Hz IEC
- Maximum power consumption: 15 W
- Dimensions: 639 x 390 x 100 mm
- Weight: 6.3 kg
- Euroguitar Reference : 124856
