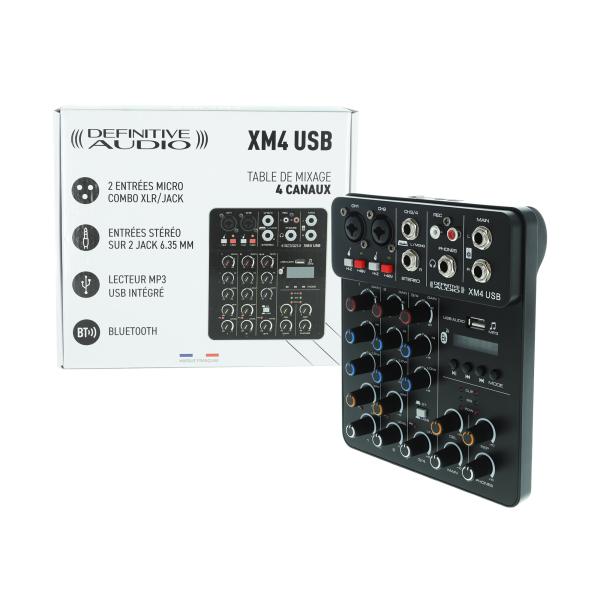

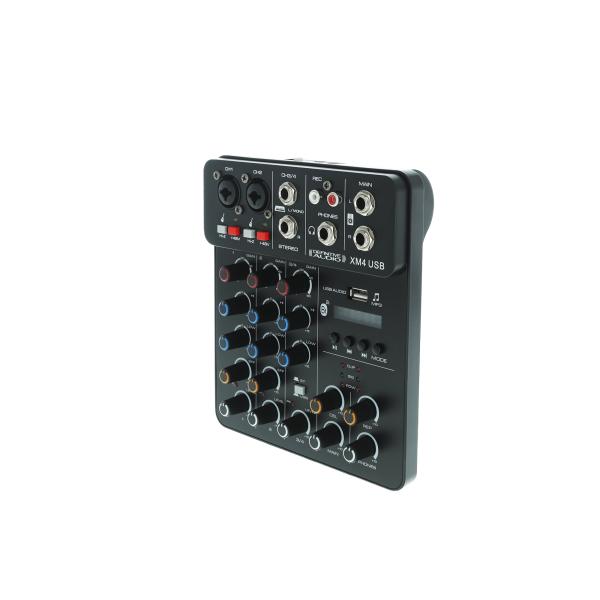

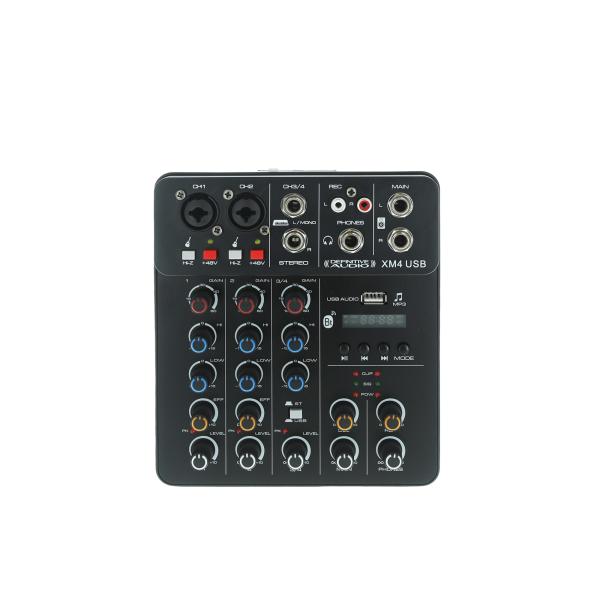

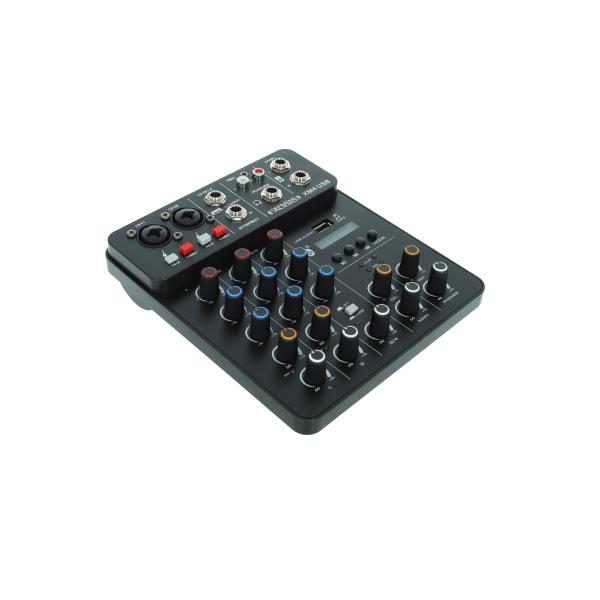

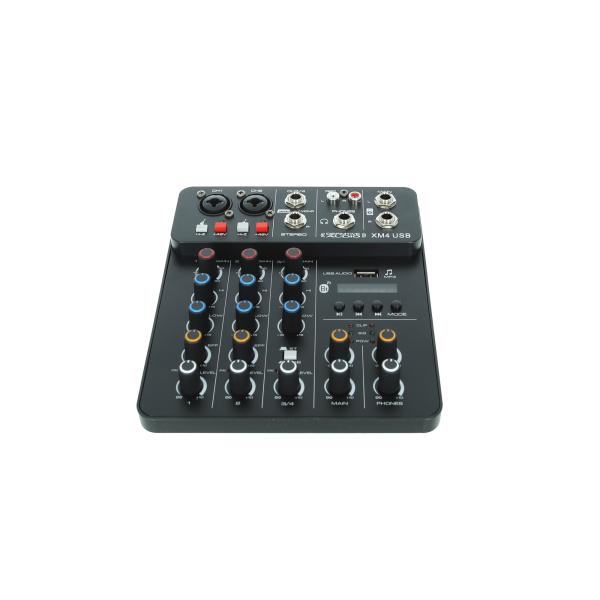

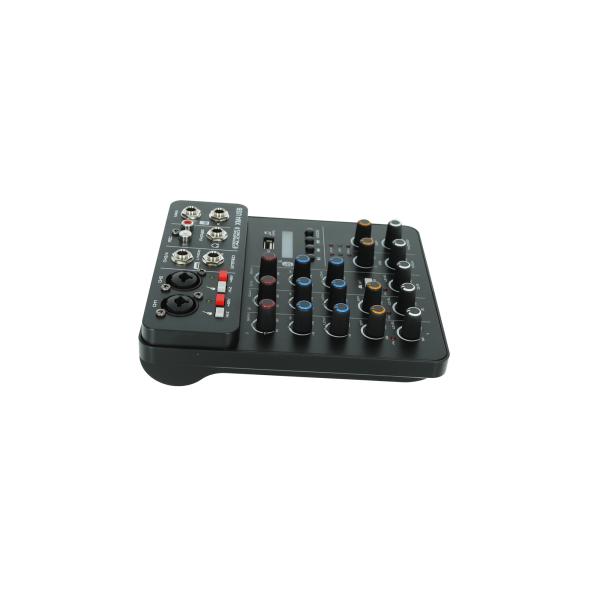

Definitive audio XM4 USB
The XM4 USB is a 4-channel analog mixing console, ideal for small sound systems, live performances, simple recordings, or DJ/music setups. It features two XLR/6.35 mm jack combo inputs with +48V phantom power and a Hi-Z function for directly connecting instruments such as a guitar.
Its CH3/4 stereo channel allows you to connect line-level sources via a 6.35 mm jack, while its built-in USB/MP3 module plays audio files from a USB flash drive, supporting MP3, WMA, WAV, APE, and FLAC formats. It also features a USB/PC interface for playback from a computer and recording.
Compact and rugged, it offers the essential controls for precise sound shaping: gain, 2-band EQ, effects, per-channel level controls, headphone output, and stereo main output.
- Inputs: 2 XLR/6.35 mm jack combo jacks
- CH3/4 stereo channel with 6.35 mm jack inputs for L/Mono and R
- L/R RCA inputs
- MAIN L/R outputs via 6.35 mm jacks
- 6.35 mm headphone output with dedicated volume control
- Hi-Z function on channels 1 and 2 for high-impedance instruments
- Built-in +48V phantom power for condenser microphones
- Built-in USB player compatible with MP3, WMA, WAV, APE, and FLAC
- USB/PC interface for audio playback from a computer and recording
- Built-in Bluetooth receiver
- Independent gain control on each channel
- 2-band equalizer: HI and LOW, +/- 15 dB
- EFF control per channel
- Built-in effects with LED and REP controls for delay/reverb
- Independent LEVEL control per channel
- MAIN control for master volume
- LED indicators: CLIP, SIG, and POW
- Peak clipping indicator per channel
- MIC input frequency response: 10 Hz – 200 kHz
- MIC input gain range: +14 dB to +60 dB
- MIC input signal-to-noise ratio: 120 dB
- LINE input frequency response: 10 Hz – 130 kHz
- LINE input gain range: -6 dB to +38 dB
- LINE input signal-to-noise ratio: 95 dB
- Stereo channels: frequency response 10 Hz – 70 kHz
- Headphone output: +15 dBu / 150 Ω
- Power supply: 230 V ~ 50 Hz
- USB-C cable included: 1 m long
- Dimensions: 160 x 47 x 182 mm
- Weight: 0.45 kg
- Euroguitar Reference : 124857
