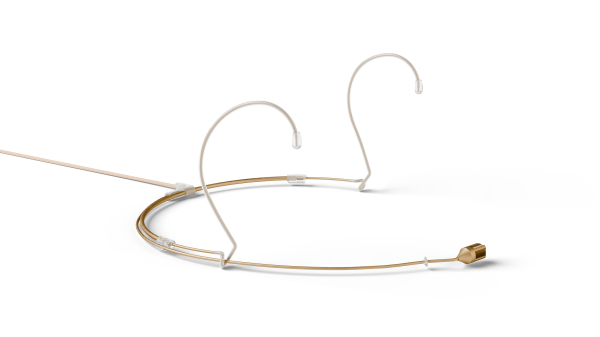

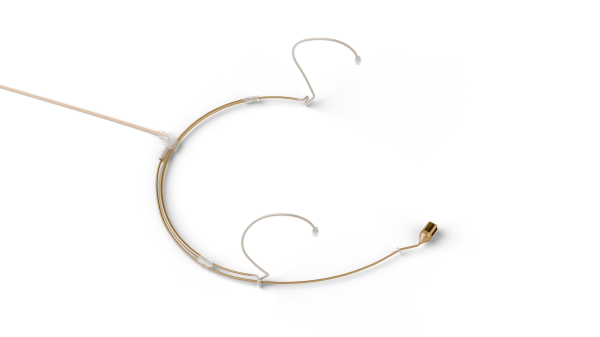

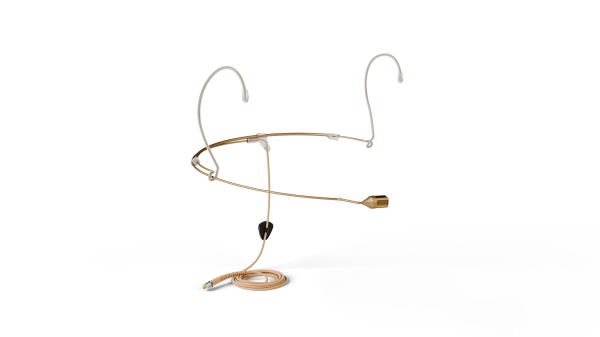

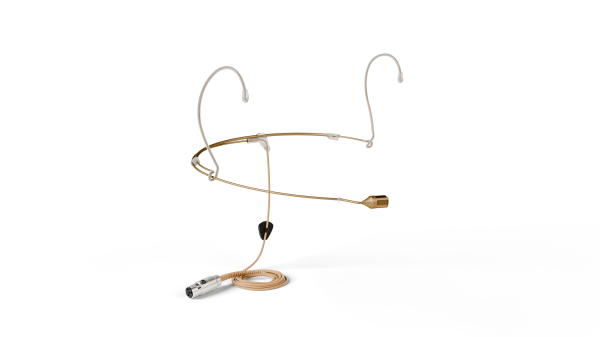

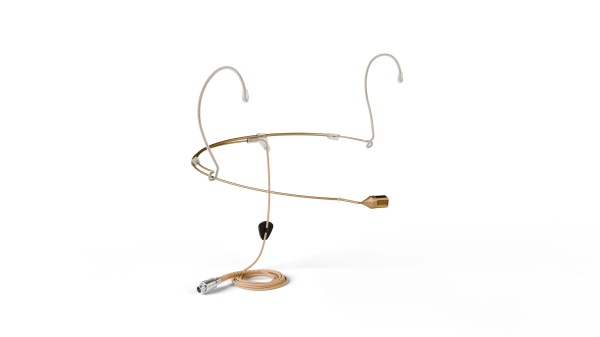

Dpa 6388-DP-A-F90-LH
Designed for the most demanding acoustic environments, the DPA 6388 CORE+ combines the natural sound quality characteristic of DPA with a particularly controlled supercardioid directivity. It is particularly suitable for live performances, theater, conferences, places of worship, broadcast and sports applications, where voice isolation and feedback resistance are essential.

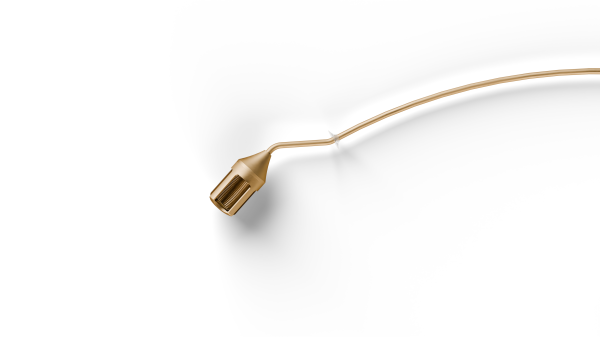

Its CORE+ capsule offers excellent speech intelligibility and maintains homogeneous behavior over a wide frequency range. The off-center acoustic axis of the capsule allows the microphone to be positioned slightly to the side of the mouth while maintaining optimal pickup. The result is greater tolerance for placement variations and more consistent restitution from one user to another.
The supercardioid polar pattern ensures excellent off-axis rejection and provides high gain before feedback in environments with audiences, stage monitors or nearby broadcast systems. The capsule is optimized for placement approximately 3 cm from the corner of the lips.
The 6388 uses DPA's Act frame in an improved version: redesigned earloops, reinforced clip retention, downward cable routing to reduce stress and discreet, non-reflective PVD finish. The boom can be positioned both on the left and on the right.
Highlights
Supercardioid polar pattern for excellent voice isolation
CORE+ capsule technology by DPA
Natural sound and excellent speech intelligibility
High gain before feedback
Excellent rear and side rejection
Optimized capture even when the placement of the capsule is not perfect
Maximum SPL level up to 144 dB peak SPL
Typical dynamic range of 117 dB
IP58 certification against humidity and dust
Comfortable and adjustable frame with boom positionable on the left or right
Discreet, non-reflective PVD finish
Robust, repairable construction for everyday professional use
DPA MicroLock connector.
Operating principle: Pressure gradient
Capsule type: Pre-polarized condenser
Frequency response: 20 Hz – 20 kHz
Effective frequency range: 100 Hz – 18 kHz, ±2 dB at 3 cm, with a slight 1 dB boost at 14 kHz
Nominal sensitivity: 8.0 mV/Pa; -42 dB re. 1 V/Pa
Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 µPa, max. 28 dB(A)
Equivalent noise level, ITU-R BS.468-4: Typ. 37 dB, max. 39 dB
THD < 0.5%: 138 dB SPL RMS, 141 dB SPL peak
THD < 1%: 140 dB SPL RMS, 143 dB SPL peak
Dynamic range: Typ. 117 dB
Max. SPL at 10% THD: 144 dB SPL peak
Nominal output impedance: 60 to 80 Ω with MicroLock
Power supply: 5 to 10 V via DPA adapter for wireless systems
Cable diameter: 1.6 mm
Cable length: 1.3 m
Capsule diameter: 5.1 mm
Microphone head dimensions: Ø 6.3 mm x 13.3 mm
Weight: 15 g, including cable and MicroLock connector
Capsule protection rating: IP58
Connector: MicroLock
Color: Beige
Size: Standard
Euroguitar Reference : 124982
