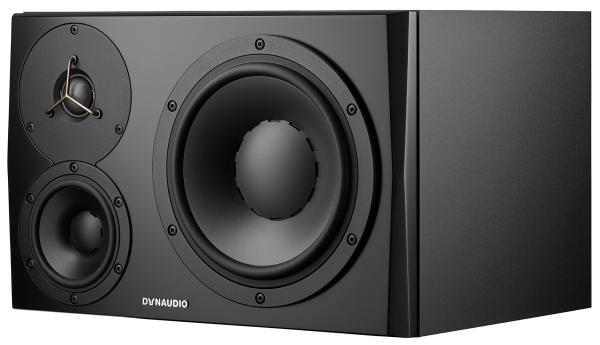

Dynaudio LYD 48 B/B LEFT - one piece

The Dynaudio LYD-48 is a three-way, tri-amplified studio monitor designed to deliver exceptional monitoring accuracy for both near-field and mid-field listening. Its internal 96 kHz/24-bit DSP offers advanced Position and Sound Balance settings, as well as a ±10 Hz bass extension adjustment, allowing for fine-tuning the sound to the acoustics and placement.

It features handcrafted Dynaudio drivers: a silk dome tweeter, and an MSP midrange and woofer, ensuring a natural, balanced, and fatigue-free sound reproduction. Capable of reaching 114 dB SPL at 1 meter, the LYD-48 maintains ample dynamic range and a solid stereo image at any listening level.

The first three-way monitor in the LYD series

The first three-way model in the Dynaudio PRO LYD range, the LYD-48 introduces a dedicated midrange driver, significantly improving vocal clarity, instrument separation, and overall mix readability. It fully embodies the Dynaudio DNA: tonal neutrality, phase coherence, and sonic depth.

For which users and applications?

Designed for producers, sound engineers, mixers, and post-production specialists, the LYD-48 integrates seamlessly into both demanding home studios and post-production suites. Its controlled power and directivity make it a reliable tool for mixing, fine-tuning transients, and even pre-mastering in medium-sized spaces.

Key features and strengths
DSP Position and Sound Balance

The onboard DSP allows for precise adjustment of the monitor to its environment. Position mode adjusts the response depending on whether the speaker is placed near a wall or in an open space, while Sound Balance offers a choice between a more neutral or warmer sound. Bass extension, adjustable by ±10 Hz, allows you to fine-tune the bass response according to the musical style and listening volume.

Handcrafted MSP Drivers

The silk dome tweeter, with its aluminum voice coil, delivers smooth, detailed highs without harshness. The 4" (midrange) and 8" (woofer) MSP cones provide an excellent balance between rigidity and damping, resulting in precise midrange, tight bass, and controlled distortion, even during extended listening sessions.

Class-D Tri-Amplification and 96 kHz / 24-bit Processing

Each driver benefits from its own dedicated amplifier (50 W tweeter / 50 W midrange / 80 W woofer), driven by a high-resolution DSP. This architecture ensures fast transient response, a stable stereo image, and ample headroom, while maintaining minimal latency.

Bass-reflex design and studio ergonomics

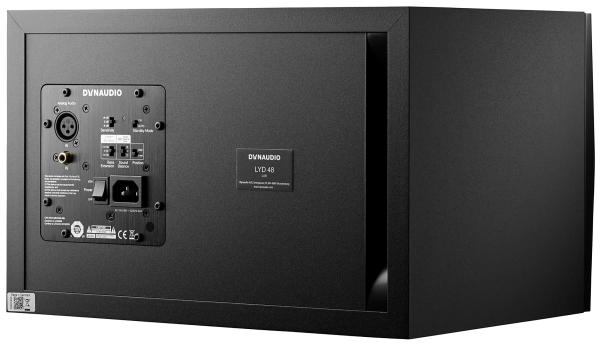

The bass-reflex design delivers effective low-frequency extension without compromising accuracy. Adjustable input sensitivity, a switchable auto-standby mode, and XLR/RCA connectivity facilitate integration into any workspace. The LYD-48 is available in black and white or all-black finishes to suit any control room.
