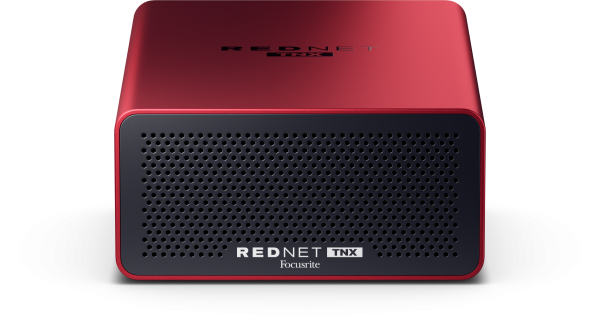

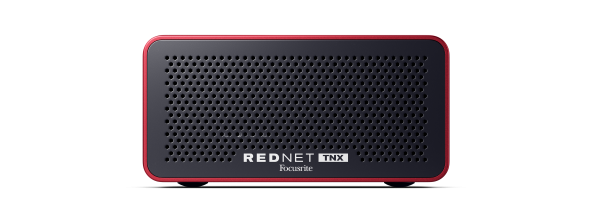

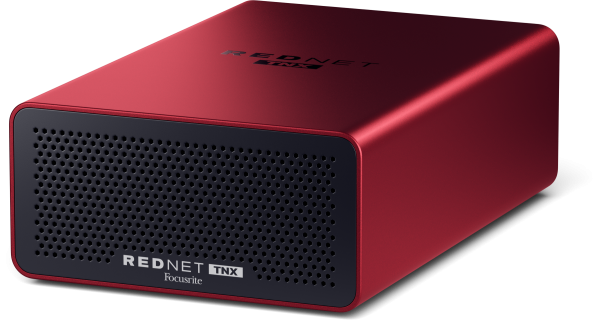

Focusrite RedNet TNX
A powerful and versatile digital audio work environment
Harness the power of the Dante network and work with up to 128x128 channels at 192 kHz, with ultra-low latency, via a single Thunderbolt™ connection. The RedNet TNX guarantees unparalleled flexibility and ease of use during complex recording sessions, in post-production, and in your AV control room.
A scalable interface
The RedNet TNX's connectivity can also be upgraded to 256x256 audio channels at 24-bit/96 kHz with Dante Ready™ via an optional upgrade.
Record with peace of mind
For recording and music production studios, the RedNet TNX guarantees ultra-low latency, as well as unparalleled performance, flexibility, and scalability, with up to 256x256 channels of uncompressed high-resolution audio.
Easy to Install
Connect the RedNet TNX to any Windows or Mac system with a Thunderbolt™ port and you'll be ready to start working right away. Connecting to your network is just as simple, with the dedicated interface allowing you to manage your network via a single cable.
Perfect for Post-Production
For professionals working with Dolby Atmos in post-production, the RedNet TNX offers the ability to connect the Dolby Renderer to a large number of channels on a Dante network.
Designed for AV Control Rooms
The RedNet TNX supports AES67 and Dante Domain Manager, and is SMPTE ST 2110 compliant, making it an ideal interface for AV applications. It's also easily portable, so you can use it anywhere.
Combining versatility and reliability
Two Ethernet ports with RJ-45 connectors allow for switched and redundant operation. This allows you to adapt the connectivity to your needs and benefit from a secondary network in critical situations.
Integrated network control
The RedNet TNX works with RedNet Control, a software application that allows you to manage and monitor all RedNet devices on your network.
Integrate it into your installation
Each of the two Thunderbolt™ ports provides 15W of power and allows you to daisy-chain multiple Thunderbolt devices. Install the RedNet TNX in a rack by securing it from below using 12mm M5 screws.
• 128x128 (all sample rates)
• 256x256 (up to 96 kHz)
Digital Specifications
• Supported sample rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24-bit resolution
Dante Connections
• 2 standard RJ45 Ethernet connectors (Category 5e and higher compatible)
Supported Drivers
• ASIO and WDM multi-client (Windows)
• CoreAudio (Mac)

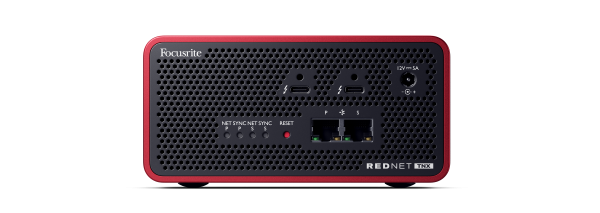

Rear Panel
• 2 Thunderbolt™ 3 ports (providing 15W of power)
• 2 Sonnet ThunderLok™ ports
• 2 LED indicators for active network (primary/secondary)
• 2 LED indicators for network synchronization (primary/secondary)
• 1 DC power jack
• 1 reset button
Power Supply
• Operates with an external DC power supply
Thermal Performance
• Maximum ambient temperature: 50 degrees Celsius/122 degrees Fahrenheit
Miscellaneous
• Rack-mountable ears
