Hk audio ELEMENTS MK2 635

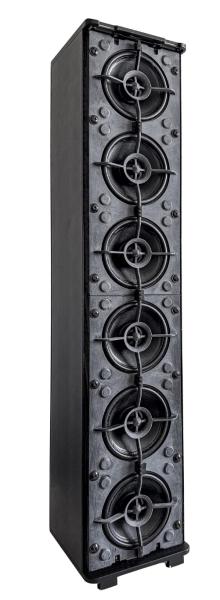

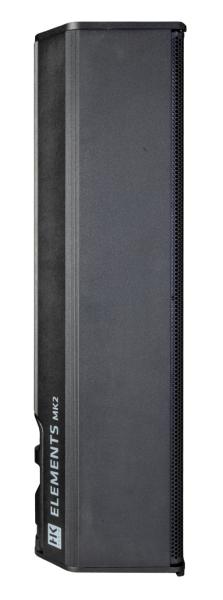

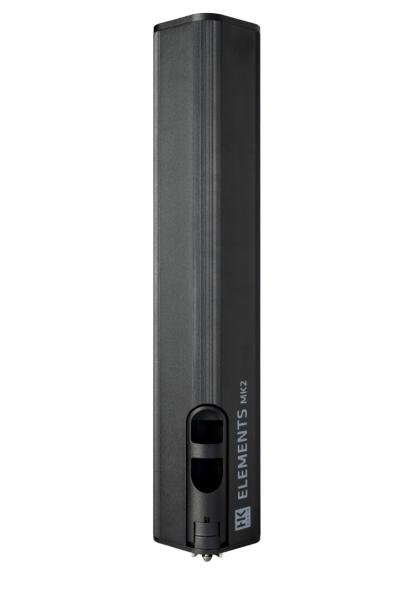

The HK AUDIO ELEMENTS MK2 635 is a passive midrange/tweeter column module designed for the ELEMENTS MK2 modular sound system. It features six 3.25-inch drivers paired with six Phase Plug waveguides, a design developed to ensure uniform sound dispersion and a wide 90° horizontal coverage. Elements_MK2_B2B_en
Its modular line-array dispersion principle allows for greater sound level and intelligibility at a distance than a conventional point-source column system. Adding multiple ELEMENTS MK2 635 modules thus primarily increases the system’s range and allows the coverage to be tailored to the dimensions of the space to be covered. Elements_MK2_B2B_en
The new acoustic design combines an optimized enclosure volume with a Phase Plug waveguide system. It improves low-midrange reproduction and adds more presence to vocals, live music, and the overall sound, while maintaining even sound distribution across the listening area. Elements_MK2_B2B_en

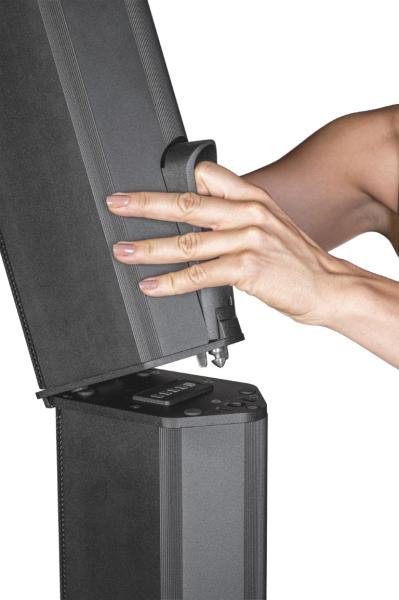

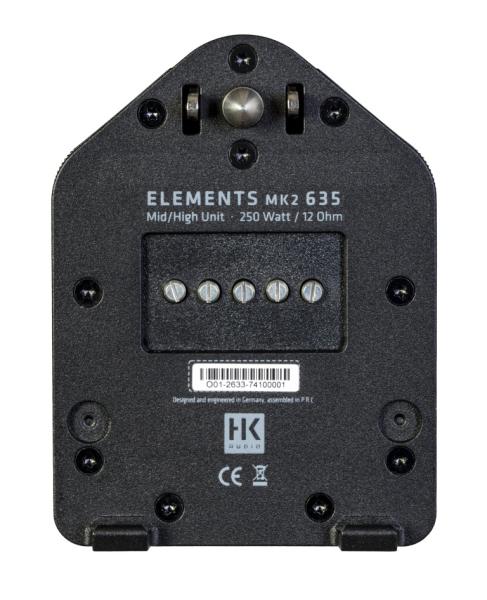

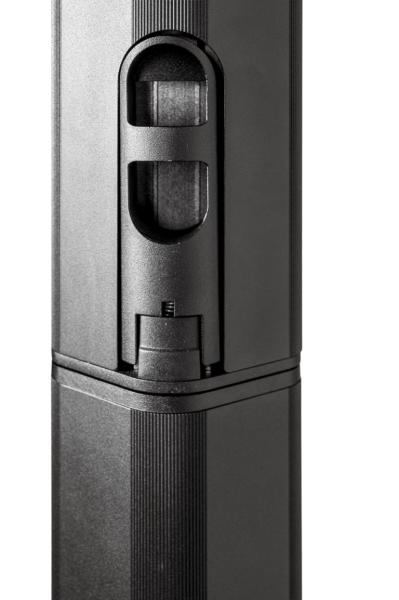

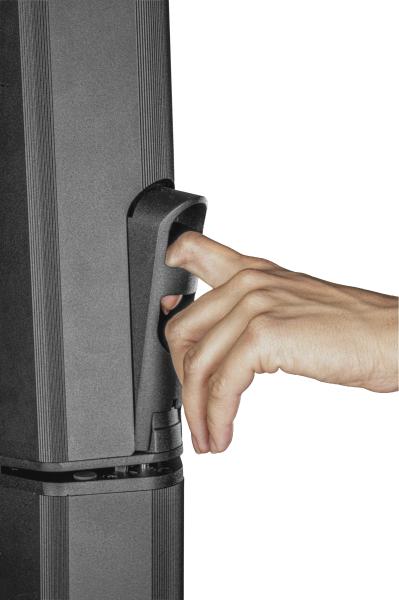

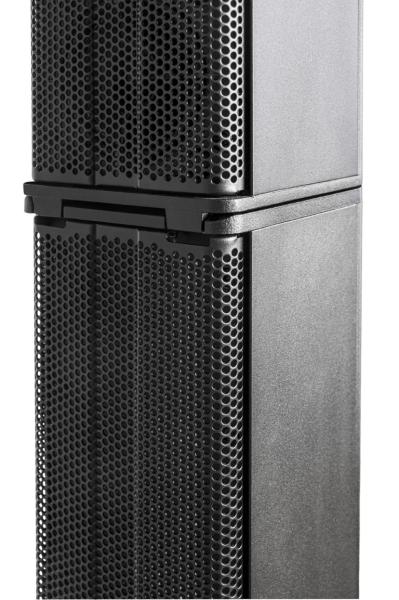

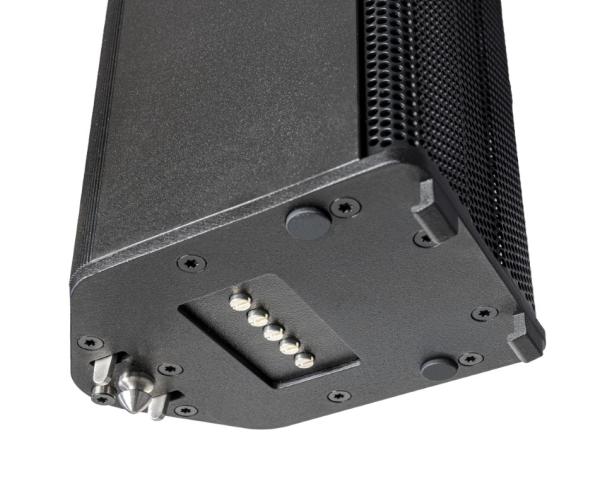

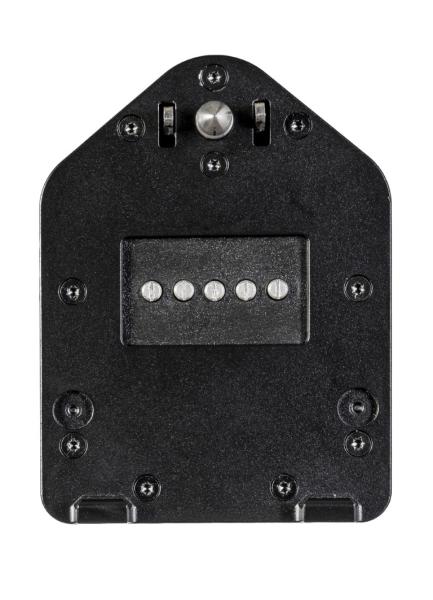

The HK Audio SnapLock system allows for quick, tool-free assembly of the module with other components in the series. The locking mechanism ensures a stable, play-free mechanical connection, while signal transmission is achieved via contact surfaces designed to withstand the rigors of intensive professional use. As a result, the cabling remains hidden once the system is assembled. Elements_MK2_B2B_en Elements_MK2_B2B_en
In an ELEMENTS MK2 configuration, the system’s DSP automatically detects the number of midrange/tweeter modules installed and applies the necessary filters to compensate for the midrange. This automatic management makes it easy to change configurations while maintaining a consistent sound response. Elements_MK2_B2B_en

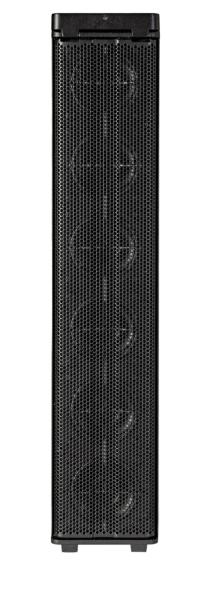

With its aluminum enclosure, powder-coated finish, and corrosion-resistant steel grille, the ELEMENTS MK2 635 is designed to meet the demands of live performances, events, and professional rental applications. Elements_MK2_B2B_en
Key Features
- ELEMENTS MK2 passive midrange/tweeter column module

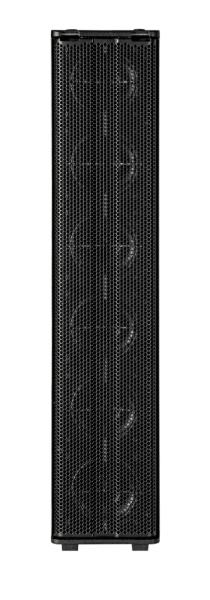

- 6 3.25" drivers
- 6 Phase Plug waveguides
- 90° horizontal coverage
- Maximum sound pressure level: 132 dB SPL Peak
- Peak power handling: 250 W
- Nominal impedance: 12 ohms
- Modular line array design for uniform coverage and long throw
- E-Connect MK2 / SnapLock connection system
- Quick, tool-free assembly
- Multiple modules can be combined to adjust the system’s throw distance
- Aluminum enclosure
- Steel grille with anti-corrosion treatment
- Slim, unobtrusive design suitable for professional event installations
