Jb systems Live 16

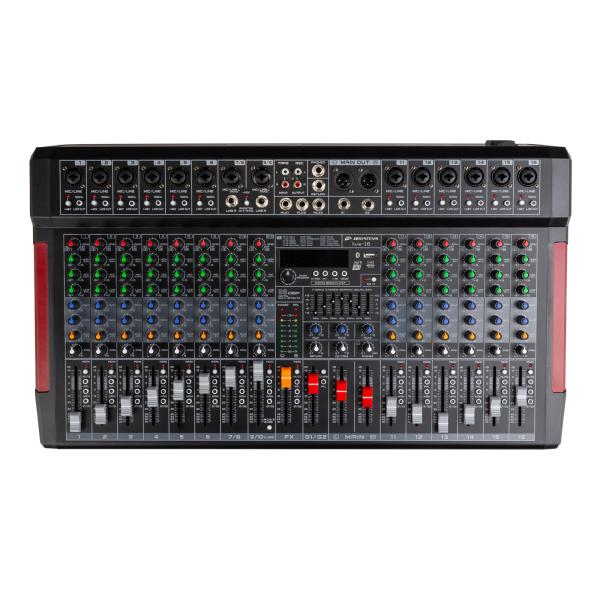

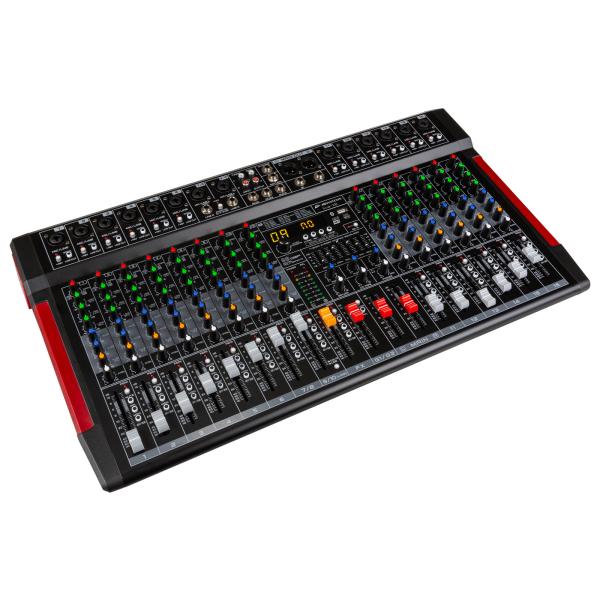

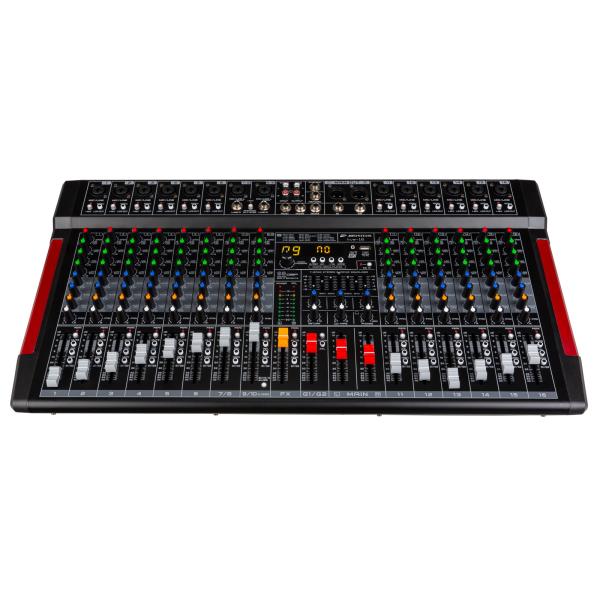

The JB Systems LIVE-16 is a professional analog mixing console designed for live performances, DJs, bands, and permanent installations. It offers 16 inputs across 14 channels, including 12 mono mic/line inputs with combo connectors, one mono/stereo mic/line input, and one mono/stereo mic/line/USB/player input. An additional stereo input allows for easy connection of an external source, and a recording output is also available.
Connectivity is modern and comprehensive: a built-in Bluetooth receiver, a bidirectional USB port for PC/Mac playback and recording, and a USB player capable of playing WMA, WAV, FLAC, APE, and MP3 files. The 32-bit DSP processor offers 99 built-in effects, allowing you to add reverbs, delays, or modulation effects as needed for your performance.
Each channel features a gain control, a 3-band EQ, two pre-fader auxiliary sends, a post-fader AUX/FX send, panning, a level fader, a peak meter, a mute, a PFL, and routing to the main output or Groups 1 and 2. The mono channels have a low-cut filter and independent 48V phantom power.
The LIVE-16 also includes a 7-band graphic EQ on the main output, ideal for fine-tuning the overall sound of a PA system. The main outputs are available as balanced XLR connectors, and the console offers a headphone output with level control. The Groups 1 and 2 outputs have their own level control and can be routed to the master output.
On the practical side, the console measures 63 × 38 × 12 cm and weighs 6.64 kg, making it easily portable. It operates on a 100–240 V AC (50/60 Hz) power supply with a power consumption of approximately 35 W.
The LIVE-16 is a versatile solution suitable for mobile DJs, musicians, performance venues, bars, associations, or permanent installations. Its combination of extensive inputs, built-in effects, USB/Bluetooth connectivity, and professional features makes it a complete, reliable, and highly scalable mixing console.
Additional stereo input for external sources with level control + analog recording output.
Built-in Bluetooth receiver.
Bidirectional USB connector (stereo playback or recording via PC/Mac).
Internal media player for USB flash drives: WMA, WAV, FLAC, APE, MP3 formats; can also be used as a stereo recorder.
Internal DSP with 99 effect variations.
Each channel features: gain control, 3-band EQ, 2 pre-fader aux sends, 1 post-fader AUX/FX send, pan control, level fader, peak indicator, mute button, PFL button, main/group output routing switch, low-cut switch, and 48V phantom power for all mono mic/line channels.
7-band graphic equalizer for the main output with IN/Bypass switch.
Group 1/2 outputs (jack) with separate level control; groups can be routed to the main outputs.
Balanced XLR main output, headphone output with level control.

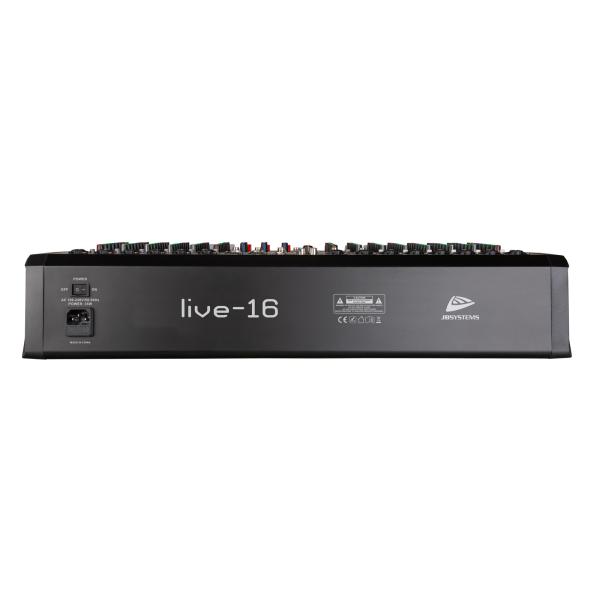

Power supply: AC 100-240 V, 50/60 Hz.
Power consumption: 35 W.
Frequency response: 20 Hz to 20,000 Hz.
Dimensions: 63 × 38 × 12 cm (W × D × H).
Weight: 6.64 kg.
Euroguitar Reference : 114044
