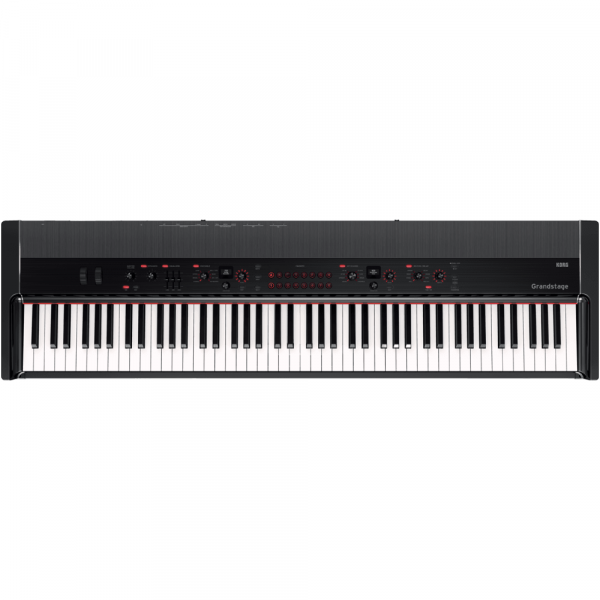

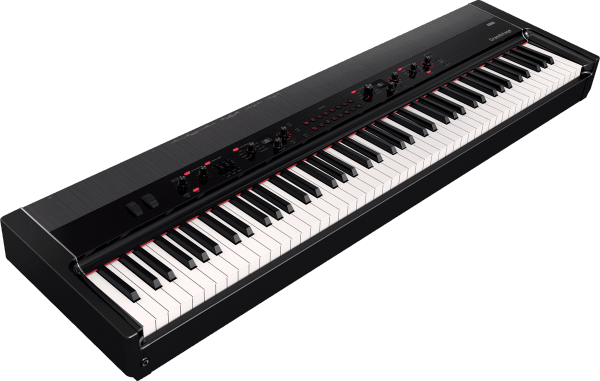

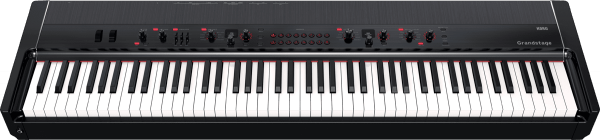

Korg GrandStage 88 - noir
ABOUT THE PRODUCT
The Grandstage 88 from Korg is a stage piano equipped with seven powerful sound engines that make it the ultimate stage piano.
FEATURES
- 88-key: RH3 (Real Weighted Hammer Action 3), E1–E7, velocity sensitive, aftertouch not supported
Methods of Synthesis and Maximum Polyphony
- SGX-2 (Acoustic Piano Sound Engine): 60 dual stereo notes (equivalent to 240 voices max.)
- EP-1 (Electric Piano Sound Engine): 100 voices
- AL-1 (Analog Modeling Sound Engine): 36 voices
- CX-3 (Tonewheel Organ Sound Engine): 128 voices
- VOX Organ (Transistor Organ Sound Engine): 100 voices
- Compact Organ (Transistor Organ Sound Engine): 100 voices
- HD-1 (PCM Sound Engine): 64 stereo notes (equivalent to 128 voices max.
Preloaded PCM Storage Capacity Approx. 19 GB (approx. 32 GB using linear conversion)
- Number of Sounds: 500
- Favorite: 64 (Includes 32 preloads)
Insert Effect for Sound Programs
- 3-band EQ and four insert effects.
- Reverb/Delay Section: REVERB/DELAY button, Type selection knob, DEPTH knob, TIME-TAP button Select 1 from Reverb type (HALL, STAGE, ROOM, SPRING), Delay type (DELAY, CROSS, TAPE, MOD DLY). DEPTH, TIME (Tap) parameter, user-editable
- Equalizer Section: EQUALIZER button, LOW, MID, HIGH slider (3 band Equalizer)
- Demo Songs 16
Audio Output
- Audio Output (Left/Right): XLR
- Connector: XLR-3-32 type (balanced)
- Output Impedance: 600 ohm
- Maximum Level: +16 dBu
- Load Impedance: 10 k ohm
- LIFT - GND switch
- Audio Output (L/Mono, R): phone
- Connector: 6.3 mm TS phone jacks (unbalanced)
- Output Impedance: 1.1 k ohm stereo; 600 ohm mono (L/Mono only)
- Maximum Level: +16 dBu
- Load Impedance: 10 k ohm
- Headphones
- Connector: 6.3 mm stereo phone jack
- Output Impedance: 50 ohm
- Maximum level: 150 mW + 150 mW @32 ohm
General
- Foot Controllers DAMPER (half-pedaling supported), SWITCH, PEDAL
- MIDI IN, OUT
- USB A (TYPE A) x1: For connecting USB storage media
- USB B (TYPE B) x1: USB-MIDI Interface
- Power Supply
- AC Power Supply terminal, Power button
- 88-key: 1311 mm x 359 mm x 140 mm / 51.64" x 14.13" x 5.51" (excluding music stand)
- 88-key: 20.0 kg / 44.09 lbs (excluding music stand)
- Power Consumption: 30 W
- Euroguitar Reference : 75114
