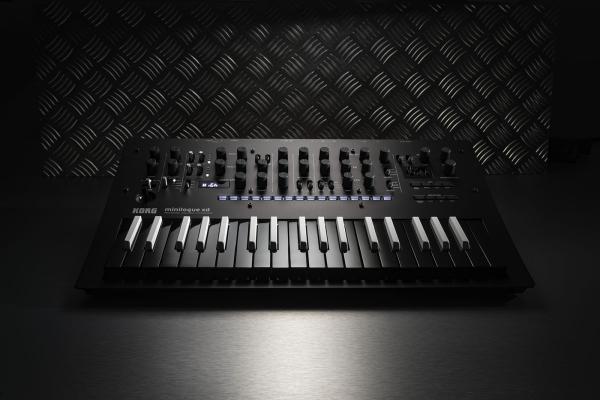

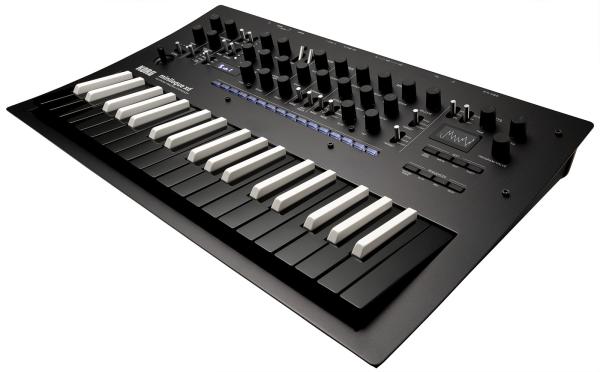

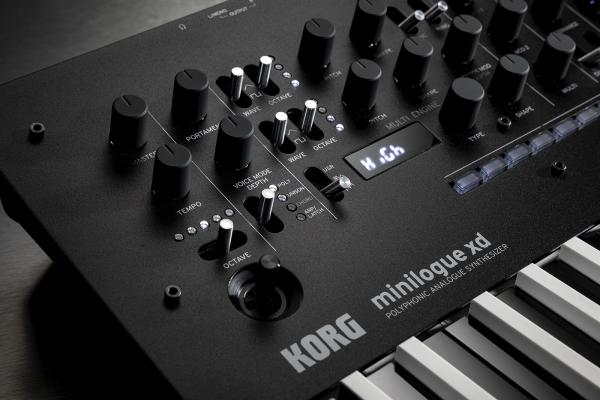

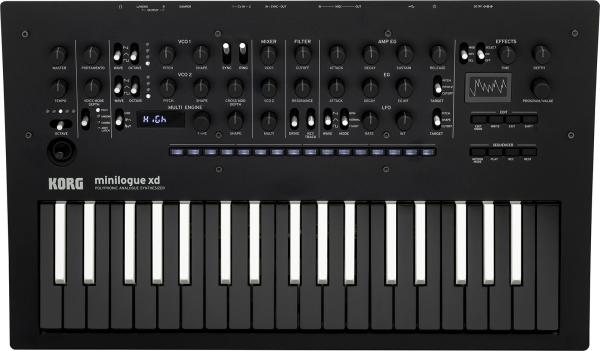

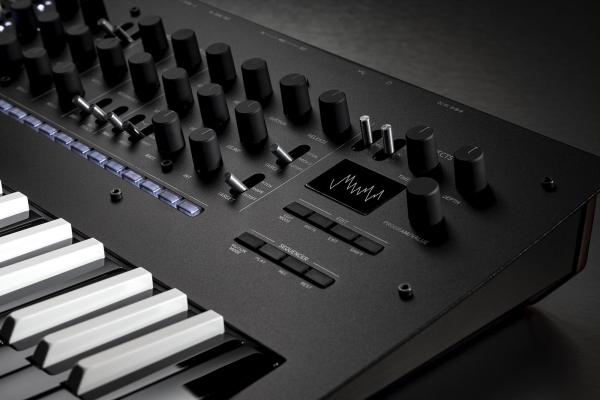

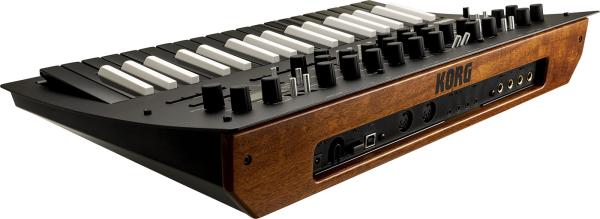

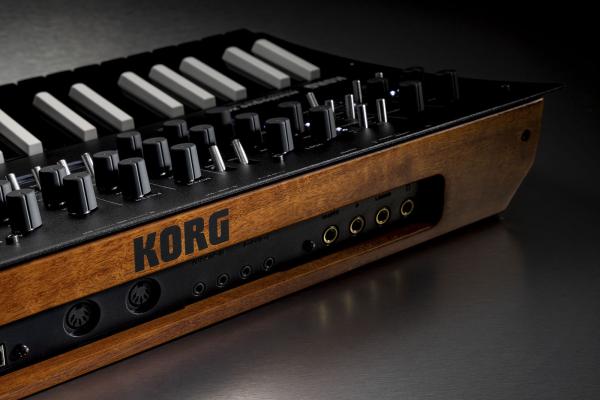

Korg Minilogue XD Reverse Edition
Minilogue polyphonic analog synthesizers offer remarkable power and extensive programming freedom at a particularly attractive price. Capable of producing everything from airy pads to incisive leads and deep, aggressive bass, the Minilogue stands out for its versatility. Its integrated oscilloscope allows for real-time visualization of waveform evolution, making it an ideal tool for beginners wanting to explore analog synthesis. But its sonic richness and possibilities also make it a highly sought-after instrument for experienced musicians looking to explore new sonic possibilities.
Minilogue + Prologue = XD
The Minilogue XD represents a new generation of synthesizers, combining the warmth of the original analog engine with the power of the Multi Engine from the Prologue. While retaining the Minilogue's analog sonic identity, this XD version incorporates an advanced digital engine, enhanced with effects, a powerful sequencer, and a micro-tuning function. These additions open up an even wider creative field, both in sound design and performance.
Four-Voice Polyphonic Analog Synthesis
The Minilogue's success is built on its true analog circuitry, which is retained and enhanced in the Minilogue XD. It retains the series' signature features, such as waveform shaping for rich harmonics, as well as sync and ring modes. These are complemented by cross-modulation, a 2-pole filter, and a drive circuit to add more character and density to the sound.
Exceptional Versatility
Every parameter has been designed to meet the needs of modern musicians. Thanks to its architecture of 2 analog VCOs + Multi Engine, 1 VCF, 2 envelopes (EG), 1 VCA, and 1 LFO, the Minilogue XD covers a wide sonic spectrum: warm pads, powerful bass, expressive leads… It adapts to all styles and situations. It comes with 200 presets and can store up to 500 programs.
A Multi Engine Digital Engine
The Multi Engine adds a digital dimension to synthesis by integrating a third oscillator alongside the two analog VCOs. It offers three types of generators: noise, VPM (Variable Phase Modulation), and a customizable user slot. This hybrid approach allows for the creation of entirely new textures, ranging from purely digital sounds to rich combinations blending analog and digital, thus exponentially increasing the possibilities for sound creation.
- Display: OLED
- Arpeggiator: Yes
- Category: Analog Synthesizer
- Controller: Joystick
- Color: Black
- Dimensions (mm): 500 x 300 x 85
- Inputs: Sustain Pedal, CV In, Sync In
- Envelope: ADSR
- Filters: 2 VCF filters with frequency and resonance control, high-pass, low-pass, and band-pass filters + crunch distortion
- Key Size: Medium
- Sound Generator: Multi-engine, VCO
- LFO: 1
- Included Software: Editor
- User Memories: 500
- Number of Effects: 49
- Number of Presets: 200
- Number of Keys: 37
- Weight: 2.80 kg
- Maximum Polyphony: 4
- Velocity Sensitive: Yes
- Sequencer: Yes

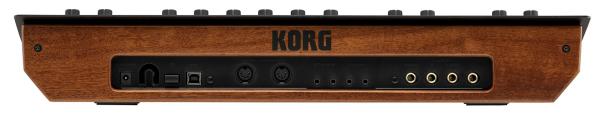

- Outputs: Headphones, 2 x jack, CV out, Sync out
- Key action: Light
- Transpose: Yes
- Synthesis type: Analog
- Additional specs:
Main synthesis parameters
VCO1: Waveform (sawtooth, triangle, square), octave, pitch, shape
VCO2: Waveform (sawtooth, triangle, square), octave, pitch, shape
Modulation: Sync, ring, cross mod depth
Multi-engine: Noise/VPM/user, type, shape
Mixer: VCO1, VCO2, multi
VCF: Cutoff, resonance, drive, keytrack
Examp: Attack, decay, sustain, release
Examp: Attack, decay, Example input, target (pitch, pitch2, cutoff)
LFO: Waveform (sawtooth, triangle, square), mode (BPM, normal, 1 shot), rate, input, target (pitch, shape, cutoff)
- Euroguitar Reference : 122238
