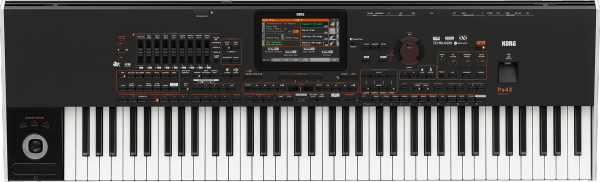

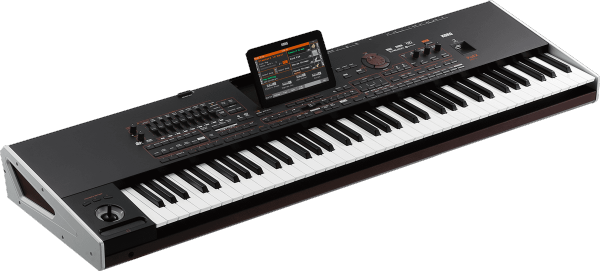

Korg PA4XOR-76
ABOUT THE PRODUCT
The KORG Pa4X ORIENTAL Professional Arranger is more than a keyboard. It’s your backup band; your accompanist; and your musical director. Whatever music you are going to play, from Western to Oriental - Arabic, Persian, Turkish - the Pa4X ORIENTAL delivers.
FEATURES
Keyboard
- Pa4X ORIENTAL 61: 61 keys (C2 – C7)
- Pa4X ORIENTAL 76: 76 keys (E1 – G7)
- Semi–weighted keys with Velocity and Aftertouch
System
- Upgradable Operating System
- Multitasking, load while play feature
Sound Generator
- EDS-X (Enhanced Definition Synthesis-eXpanded)
- Filters with Resonance - Three band EQ for each track
Polyphony: 128 Voices, 128 Oscillators
Effects
Accompaniment/Song:
- 4 Insert Effects; 3 Master Effects (148 Types)
Keyboard Tracks
- 1 Insert Effect; 2 Master Effects (148 Types)
Final Mastering Effects:
- Waves Audio Ltd. MAXX Suite:
- Includes MaxxEQ™, MaxxBass™, MaxxTreble™, MaxxStereo™, MaxxVolume™
Voice Processor Technology by TC Helicon®: Four-part Harmonizer, Double, µMod, Reverb, Delay, Filter, HardTune, Pitch Correction;
plus Compressor, EQ, Gate (Adaptive Mic Setting on the Mic input)
Sounds / Drumkits
Factory:
- More than 1,650 Sounds including a multilayer Stereo Piano with damper/body resonance, GM/XG sound sets and more than 140 Drumkits including Ambient Drums
User Area:
- 512 Sounds, 128 Drumkits
Digital Drawbars:
- 9 Footages, Percussion, Key On/Off, Leakage (Effect section includes rotary speaker)
Defined Nuance Control (DNC) Technology
Natural Ambience Drums Sound
Full Sounds/Drumkits editing capability
User PCM RAM Memory: 400 MB
Sampling
- Load KORG, Wav, AIFF and SoundFont™ formats
- Save KORG, Wav and AIFF formats
- Full Edit, Time Slice, Sampling feature
Styles
- More than 650 preloaded Styles, freely reconfigurable
- 1,872 locations including the User banks and Direct function
- Eight Style tracks, 4 Keyboard Sets, 4 Pads and one Style Setting per Style
- Guitar Mode 2, Parallel and Fixed NTT
- Style Record with Step Record, Track and Event Edit functions
- Style controls: 3 Intros, 4 Variations, 4 Fills, Break, 3 Endings, Synchro Start, Synchro Stop, Tap Tempo/Reset, Bass Inversion, Auto Fill, Manual Bass, Memory, Accompaniment Mute, Drum Mapping, Snare & Kick Designation, Style to KBD - Mode
Chord Sequencer
- Chord Sequence recorder in Style Play mode
- Chord Sequence save in Style and SongBook entries
- Edit functions: delete, copy from Style/SongBook, import/export from/to SMF
Keyboard Set Library
- Memorize keyboard tracks settings
- 1,584 locations including the User banks and Direct function
- “My Setting” special Keyboard Set
Song Play
- Patented XDS Crossfade Dual Sequencer Player with X-Fader Balance control
- Supported formats: MID, KAR, MP3 + lyrics, MP3+G
- 2 Players with separate Select, Start/Stop, Home, Rewind and Fast Forward controls
- Lyrics, Score, and Chord data can be displayed on screen, or on external video monitor
- Markers with Add, Delete, Edit and Loop functions
- Jukebox function
MP3 Player / Recorder
- Double MP3 Player and MP3 Recorder
- Transpose (+6/-5 semitones)
- Tempo change (±30%)
- Advanced Vocal Remover
- Record MP3 files including Styles, SMF, MP3, Keyboard Tracks, Pads, Microphone and Effects
Sequencer: Quick Record (Backing Sequence), Multitrack and Step Record functions -
Full-featured sequencer, 16 tracks, Up to 200,000 events, SMF native format
SongBook
- Fully programmable music database, based on Styles, SMF, Karaoke, MP3 with automatic selection of Style Play and Song Play modes
- User-definable Set Lists with layout button association
- Filtering and Ordering options
Compatibility
- "i-Series" models: Styles
- “Pa-Series” models: Style, Performance, Program/Sound, Song, SongBook, Pad
Pad: 4 Assignable Pads + Stop Button - Pad Record function
General Controls: Master Volume; Fade In/Out; Keyboard-Acc/Song Balance Volume; Ensemble; Octave Transpose; Master Transpose; Quarter Tone and Arabic Scale memorized inside Keyboard Sets; Joystick (pitch + modulation); Ribbon; Mic Volume; Harmony/Double; Delay/Reverb; Mic Preset; Mic On/Off; Harmony On/Off; Double On/Off; 8 Assignable Sliders; Slider Mode; MP3 Volume; 3 Assignable Switches; Tempo +/-; Tempo Lock; Metronome On/Off; Dial; Up/+; Down/-; Search; Shift; Chord Scan (Low- Upper); Split; Keyboard Tracks Sound Select and On/Off; Record
Control Inputs
- Damper pedal (support half-pedaling with optional DS-1H pedal)
- Assignable pedal/switch
- EC5 multiswitch pedal
Mic/Line Inputs
- Mic: Combo XLR balanced with Gain control and Phantom Power
- Line 1: Left/Right Jack (1/4") Line Input, balanced
- Line 2: Stereo Mini-jack (1/8") Line Input, unbalanced
Outputs
- Audio Output: Left/Right, Out 1, Out 2; (1/4" TRS) balanced
- Headphone Output x 1 (Front panel)
- Video Out x 1, RCA type
MIDI
- IN, OUT, THRU standard MIDI connectors
- USB to MIDI using the USB Device port
- 8 user definable MIDI Setups
USB
- Type A (Host) x 2 (Front/Rear)
- Type B (Device) x 1 (Rear)
- 2.0 Hi-Speed connections
Storage:
Hard Drive:
- Pa4X ORIENTAL 76 (Standard)
- Pa4X ORIENTAL 61 (optional – Hard Disk Installation Kit required)
Micro SD card: (Card not included)
- Rear panel slot with plastic cover
USB Flash Drive: (Drive not included)
- 1 Front panel port
- 1 Rear panel port
Display: 7” Wide capacitive color TouchView™ TFT display
Clock: Internal System Clock
AC - Power Consumption:
- 100-240 Volts, 50/60 Hz
- 0.5 Watt in standby / 16 Watt normal / 38 Watt with PaAS installed
Dimensions (W x D x H) without music stand:
- Pa4X ORIENTAL-76: 1,192 x 364.4 x 125.56 mm / 46.93" x 14.35" x 4.94" with display fully lowered
- Pa4X ORIENTAL-61: 980 x 364.4 x 125.56 mm / 38.58" x 14.35" x 4.94" with display fully lowered
Weight:
- Pa4X ORIENTAL-76: 16.3 kg / 35.93 lbs
- Pa4X ORIENTAL-61: 13.9 kg / 30.64 lbs
Included Items:
- AC Power Cable, Music Stand
- DVD-ROM: includes Owner’s manuals in pdf format, Video Manual, and KORG USB-MIDI Driver
Accessories:
- PaAS Amplification System
- ST-SV1 Keyboard Stand
- HDIK-3 Hard Disk Installation Kit (for 61 keys only)
- EC-5 Multiswitch Pedal
- EXP-2 Foot Controller
- XVP-20 Vol/Exp Pedal
- XVP-10 Expression/Volume Pedal
- DS-1H Damper Pedal (support half-pedaling)
- PS-1 Pedal Switch
- PS-3 Pedal Switch
Euroguitar Reference : 67612
