Medeli AKX10s

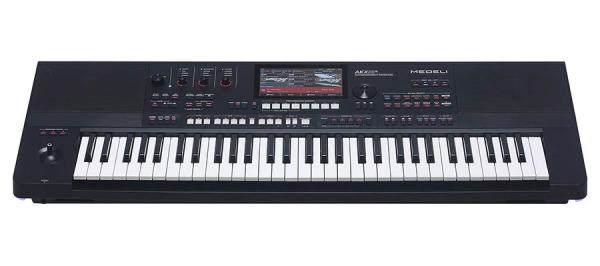

The Medeli AKX10S is a professional arranger workstation that pushes the boundaries of musical creativity. A direct evolution of the AKX10, this model incorporates a new PTK III keyboard and an enhanced sound engine to deliver exceptional expressiveness and realism.

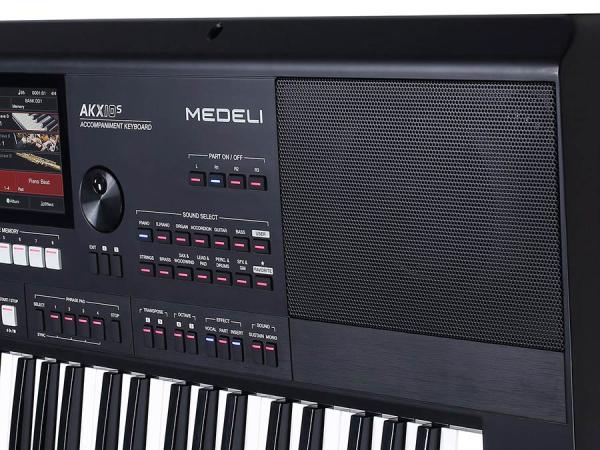

Its 7-inch color touchscreen allows for quick and intuitive navigation, while its extensive library of sounds, DSP effects, and styles guarantees an impressive sonic richness. Thanks to its integrated 4-speaker sound system, the AKX10S delivers a powerful, precise, and warm sound, ideal for both stage and studio.
Designed for demanding musicians, it also integrates modern features such as Bluetooth audio and MIDI, a full-featured recorder, real-time assignable controllers, and ample expansion memory.

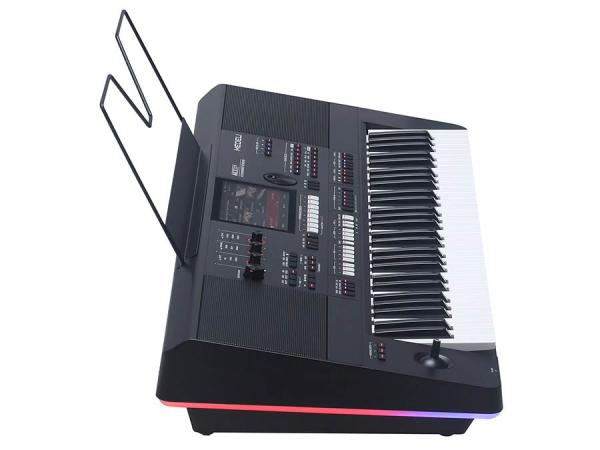

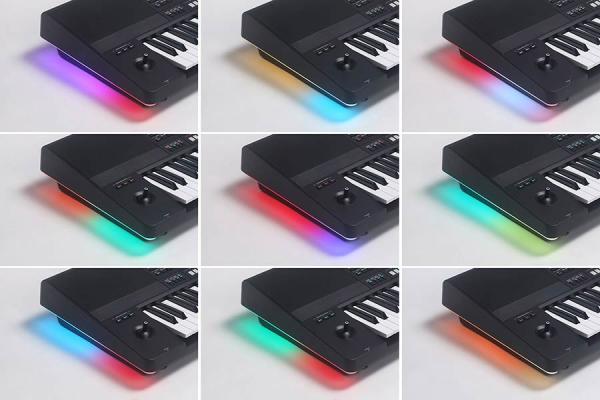

The design is enhanced by dynamic "breathing light" illumination and an expressive joystick, offering a unique visual and tactile interaction with the instrument.
Key Features
61-key PTK III touch-sensitive keyboard for expressive playing

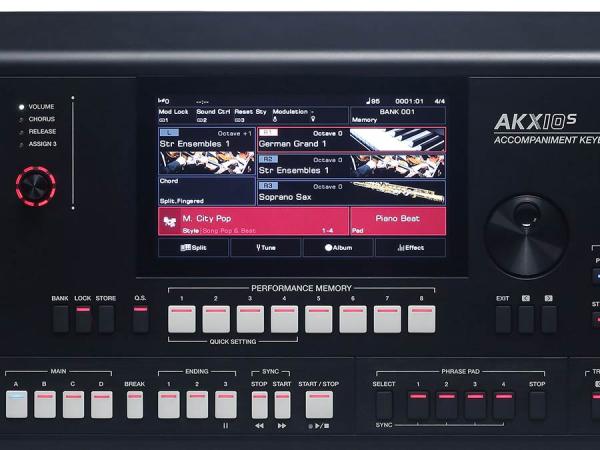

Intuitive 7" touchscreen (multilingual)
256-note polyphony for limitless performance
Advanced sound engine with over 1800 sounds
Integrated 4-speaker audio system (2 x 25W + 2 x 15W)
Built-in Bluetooth Audio & MIDI
Real-time controllers (joystick, knobs, switches, pedals)
Full audio and MIDI recorder
Large user and expansion memory
61 touch-sensitive keys (PTK III)
7-inch TFT touchscreen (7 languages)
Polyphony: 256 notes
Sounds and Styles
Sounds: 1133 + 256 GM2 + 500 users (max)
Styles: 300 + 1000 users (max)
Chord Types: 39
Demo Songs: 3
Music Library
Album: 80 + 1000 users max
Music Library: 50 + 512 users
Audio System
Amplification: 2 x 15 W + 2 x 25 W

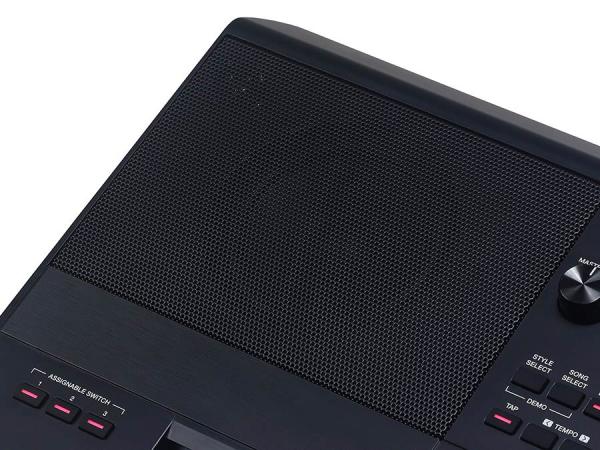

Speakers: 2 x 3 cm + 2 x 12 cm
Effects and Processing
Reverb: 45 types + 30 users
Chorus: 76 types + 30 users
Effects:
Channel EQ, Compressor, DAS
IFX (48 presets + 30 user presets)
Microphone Effects (EQ, compressor, 47 DSPs, vocoder, vocal harmonizer)
Master EQ: 5 + 30 user presets
Control and Performance
Layer/Split: L • R1 • R2 • R3
Arpeggiator, Harmony, Slicer
Performance Memory: 8 x 200 banks
Phrase Pads: 4 x 180 banks + 500 user presets
Controllers:
2 assignable pedals

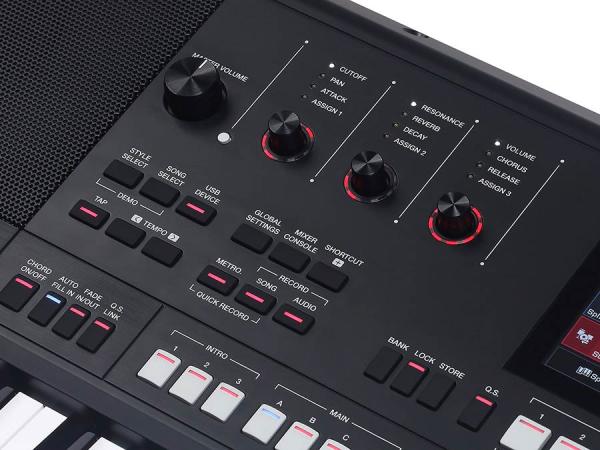

3 knobs
3 switches

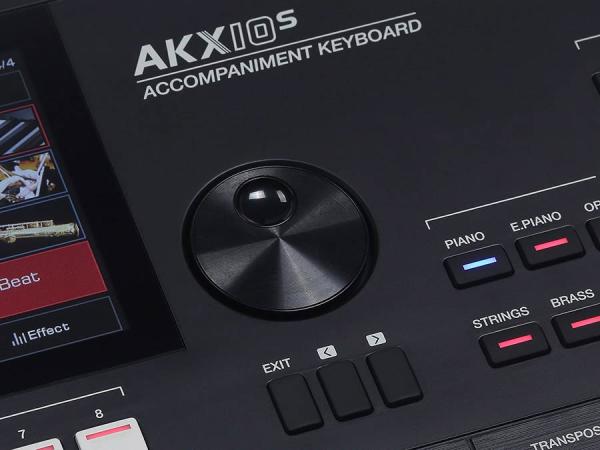

1 joystick
Pitch bend and modulation
Audio Playback and Recording
Playback: MP3, WAV, AAC
Functions: Vocal removal, audio tempo, transposition
Recording: MP3, WAV (44.1 kHz / 16-bit)
Sequencer
Up to 500 user songs
16 tracks
Settings
Transposition, octave, tuning
Tuning by scale (9 + (30 users)
Tempo: 30 to 280 + Tap Tempo
Built-in metronome

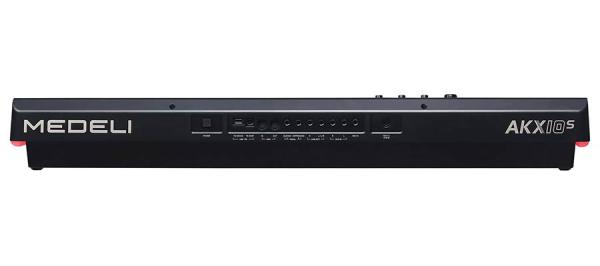

Connectivity
Bluetooth audio and MIDI
USB-A (storage)
USB-B (MIDI and audio)
MIDI In/Out
L/R audio outputs (6.35 mm jack)
Audio inputs (2 x 6.35 mm mono jacks)
Headphone output (6.35 mm jack)
Microphone input (6.35 mm jack)
Sustain/volume pedal input
General Information
Internal memory: approximately 768 MB (samples)
Dimensions: 1007 x 392 x 130 mm
Weight: 9.6 kg
Power supply: DC 15 V
Euroguitar Reference : 122189
