Palmer MONICON L G2 G

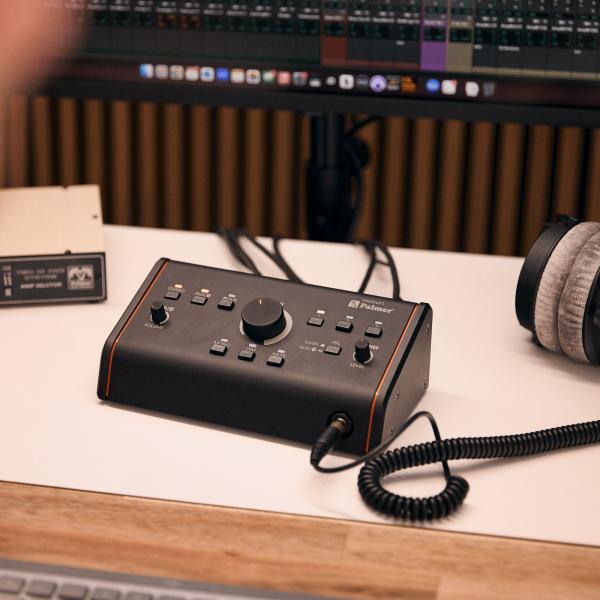

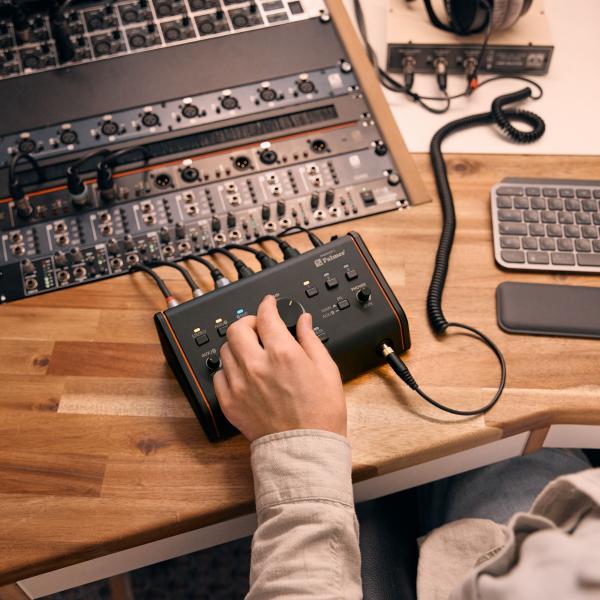

The Palmer MONICON L G2 G is a compact and versatile monitoring controller designed for professional project studios, demanding home studios, and production setups that require simple and precise monitoring control.
It features three stereo input sources: a balanced input via XLR/TRS combo jacks, an AUX input, and a Bluetooth connection for mobile devices and digital sources. The different sources can be selected directly from the controller using dedicated controls with LED indicators.

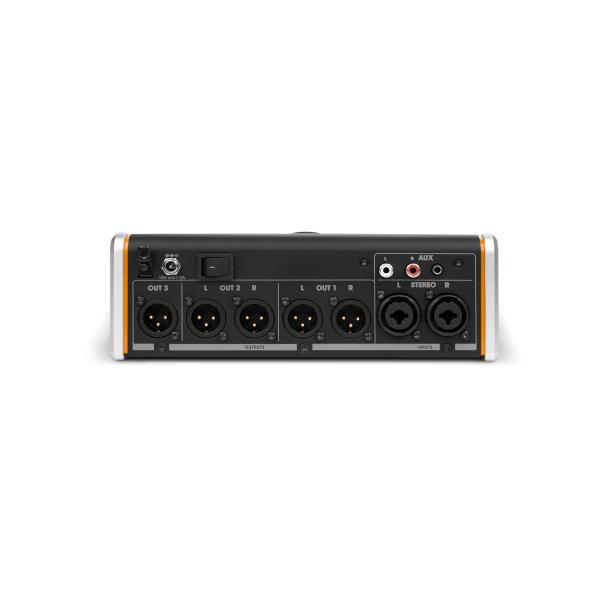

On the output side, the MONICON L G2 G offers two stereo outputs and one mono output via balanced XLR connectors. This configuration makes it easy to manage multiple monitoring systems, such as a pair of main monitors, a second pair of near-field speakers, or a subwoofer.

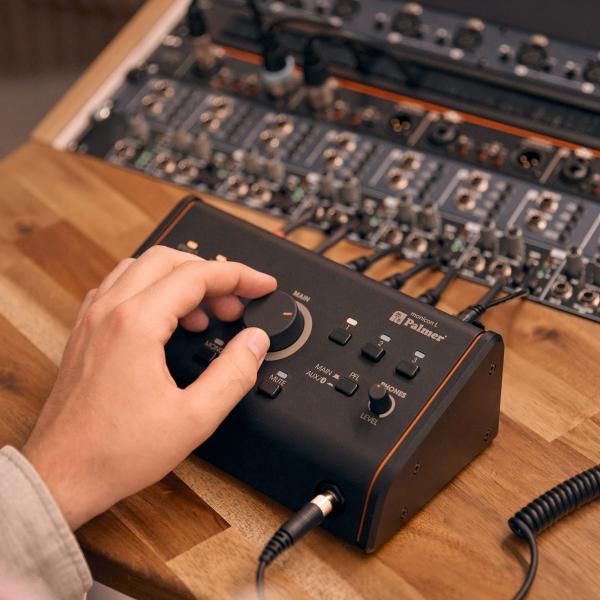

Its large analog potentiometer ensures precise adjustment of the playback level. The audio signal path remains entirely analog and latency-free to preserve signal transparency during monitoring. The controller can operate in passive or active mode depending on the functions being used.

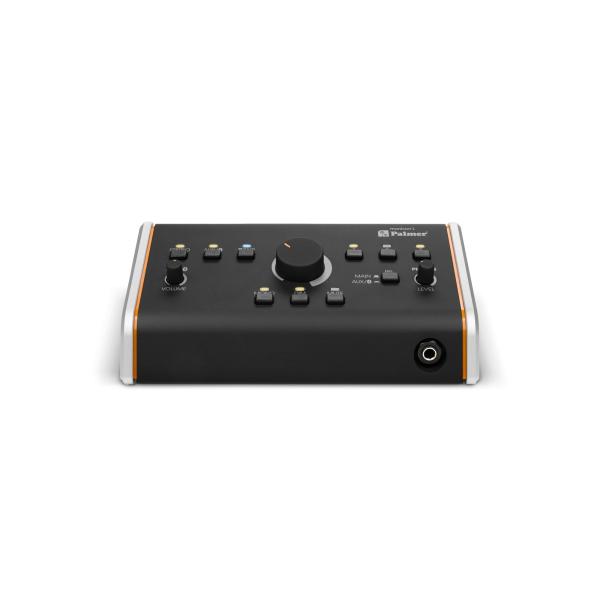

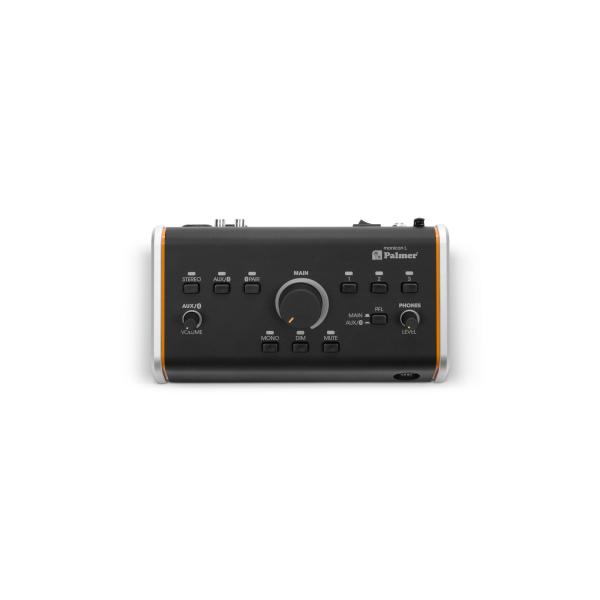

The MONICON L G2 G also includes the essential controls needed in a studio: Mono, Dim, and Mute. A dedicated headphone output with its own volume control and a PFL function allows you to preview sources without altering the level of the main mix.

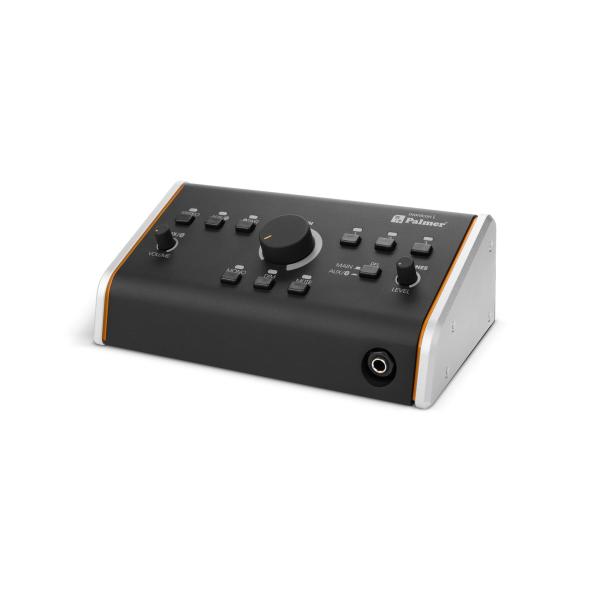

With its rugged desktop housing made of aluminum and steel, its ergonomics designed for everyday use, and its German engineering, the MONICON L G2 G offers a comprehensive solution for centralizing and simplifying control of a monitoring system.
Signal path: Analog, zero-latency
Number of sources: 3 stereo inputs
Main input: Balanced XLR/TRS combo
Additional inputs: AUX and Bluetooth
Balanced line inputs: 2
Unbalanced line inputs: 2
Unbalanced connections: Stereo RCA / AUX
Outputs: 2 stereo outputs + 1 mono output
Balanced line outputs: 5
Output connectors: Male 3-pin XLR
Headphone output: 6.35 mm TRS jack
Headphone volume control: Independent
Max. headphone power: 100 mW
Min. headphone impedance: 10 Ω
Functions: Mono, Dim, Mute, and PFL
Source selection: Dedicated buttons with LED indicators
Main volume control: High-precision analog potentiometer
Frequency response: 20 Hz – 20 kHz
THD+N: ? 0.001% at +4 dBu
Input signal-to-noise ratio: 112 dB
Output signal-to-noise ratio: > 115 dB
Max. balanced input level: 20 dBu
Max. unbalanced input level: 15 dBu
Max. output level: 20 dBu
Balanced input impedance: 20 kΩ
Unbalanced input impedance: 10 kΩ
Balanced output impedance: 600 Ω
Materials: Aluminum and sheet steel
Finish: Powder coating
Color: Silver
Width: 218 mm
Height: 76 mm
Depth: 124 mm
Weight: 910 g

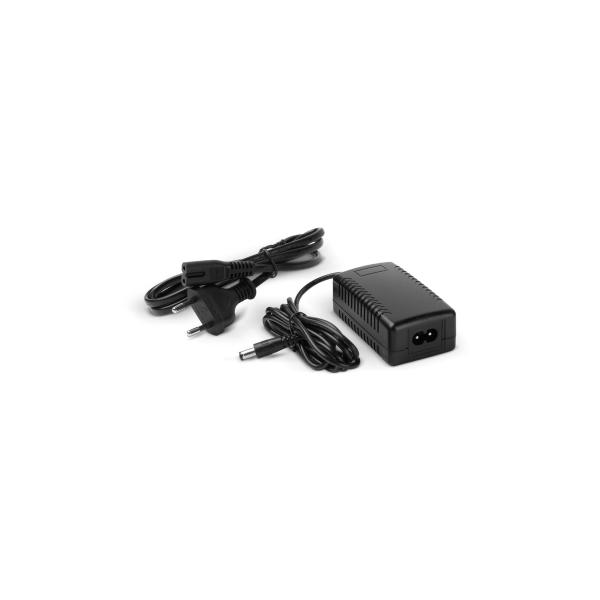

Power supply: External switching power supply
Design: Germany
Euroguitar Reference : 125686
