Palmer MONICON M G2

92.00 €
73.00 €

Pre-order - contact us
Euroguitar Lille : Coming soon

Your store

36 rue Littré, Lille
from Monday to Saturday
10h-12h30 & 14h-19h


Phone : 03 20 88 85 85

Close

Availability warning

Pour recevoir un mail dès que ce produit sera disponible,
veuillez saisir votre adresse mail ci-dessous.

PRE-ORDER - contact us

3-years warranty (Terms)

30 days to change your mind (Terms)

Best Price Guarantee

ABOUT THE PRODUCT

The Palmer MONICON M G2 is a compact passive monitoring controller designed to provide direct and precise control over the listening level. Ideal for home studios, project studios, editing suites, and multimedia workstations, it simply plugs in between your audio source and your monitoring system.

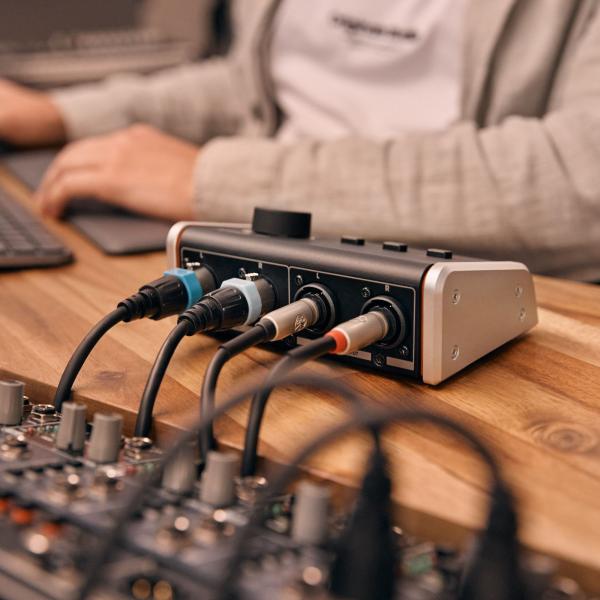

Its connectivity options allow it to work with both professional audio equipment and more compact setups. The stereo input is accessible via two balanced XLR/TRS combo connectors or an unbalanced 3.5 mm mini-jack input. For output, the MONICON M G2 offers two balanced XLR connectors as well as a 3.5 mm stereo mini-jack connection.

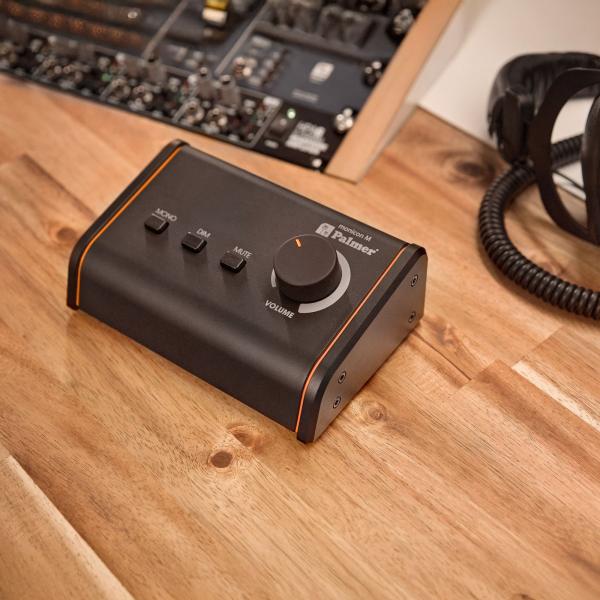

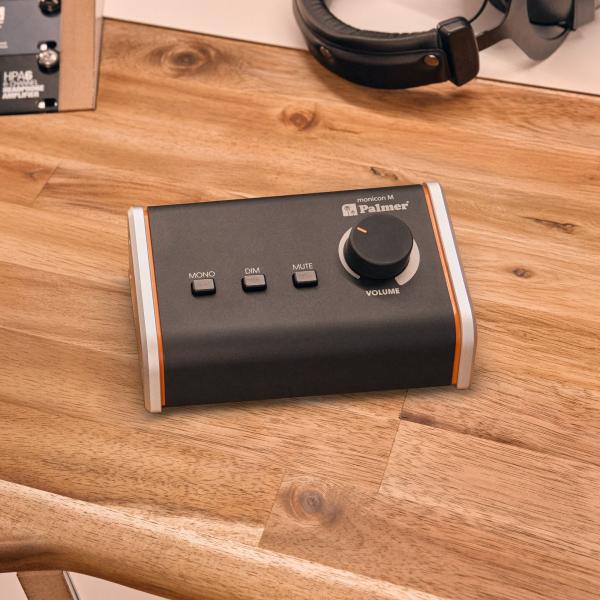

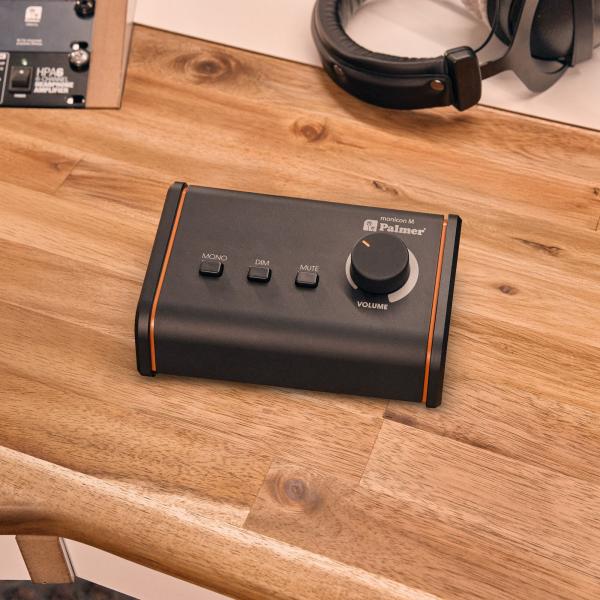

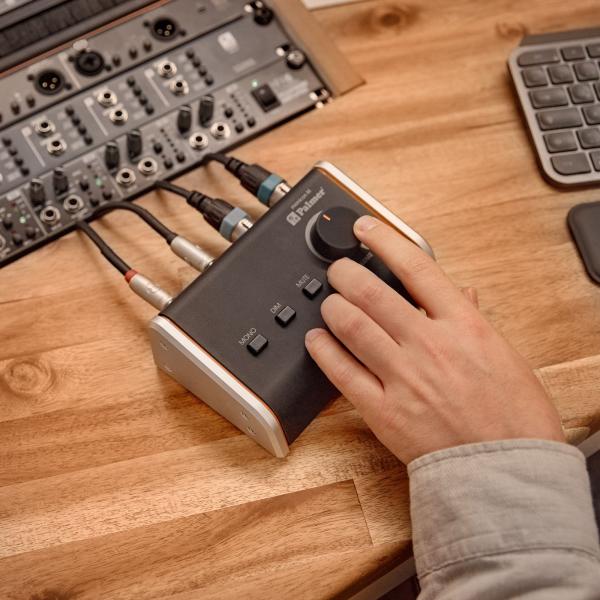

Its large analog knob allows you to precisely adjust the speaker volume directly from your workstation, without having to change the level on the audio interface or computer. The dedicated MONO, DIM, and MUTE controls provide immediate access to essential monitoring functions.

Thanks to its fully passive design, the MONICON M G2 requires no power supply. Its audio path remains entirely analog and generates no latency, making it a particularly simple solution for controlling the level of a pair of studio monitors.

Its aluminum and sheet steel chassis, compact dimensions, and weight of just 480 g make it easy to integrate onto a desk or into a compact production setup.

FEATURES
Type: Passive volume/monitoring controller
Color: Black
Number of inputs: 1 stereo
Balanced line inputs: 2
Balanced input connectors: XLR/TRS combo
Unbalanced line input: 1 stereo
Unbalanced input connector: 3.5 mm TRS mini-jack
Number of outputs: 1 stereo
Balanced line outputs: 2
Balanced output connectors: Male 3-pin XLR
Unbalanced line output: 1 stereo
Unbalanced output connector: 3.5 mm TRS mini-jack
Volume control: Large analog potentiometer
Functions: Mono, Dim, and Mute
Signal path: Fully analog
Operation: Passive
Power supply: No power supply required
Frequency response: 20 Hz – 20 kHz
Minimum signal-to-noise ratio: 112 dB
Output dynamic range: > 115 dB
Maximum output level: 20 dBu
Crosstalk: -79 dB
Balanced input impedance: 20 kΩ
Unbalanced input impedance: 10 kΩ
Materials: Aluminum and sheet steel
Width: 160 mm
Height: 62 mm
Depth: 106 mm
Weight: 480 g
Operating temperature: 0 to 40°C
Maximum humidity: 80% (non-condensing)
Design: Germany
Euroguitar Reference : 125690
