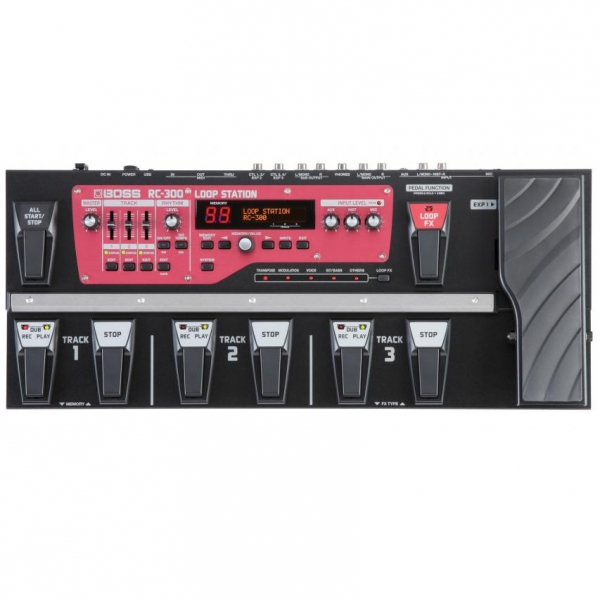

Boss RC-300 Loop Station
This product is not available anymore
ABOUT THE PRODUCT
With loop mania sweeping the globe, BOSS proudly announces the most powerful Loop Station ever brought to the market — the RC-300. The new flagship looper features three synchronized stereo tracks with dedicated volume knobs and transport-control footswitches for each track. It’s also equipped with pro effects, a master Expression pedal, and a deluxe, ultra-wide control panel for the ultimate in live-performance manipulation. Plug in your guitar, bass, keyboard, or instrument of choice and create amazing loops in real time.
FEATURES
- Three stereo tracks with dedicated footswitches and controls for each
- Dedicated fader per track
- Expression pedal for effects control in real time
- Up to three hours of internal recording and 99 onboard memories
- 16 onboard effects optimized for looping
- XLR Microphone input with phantom power
- USB storage; import/export WAV files
- Nominal Input Level INPUT MIC: -50 dBu (variable), INPUT INST: -10 dBu (variable), INPUT AUX: -20 dBu (variable)
- Input Impedance INPUT MIC: 4 kΩ, INPUT INST: 1 MΩ, INPUT AUX: 47 kΩ
- Nominal Output Level MAIN OUTPUT: -10 dBu, SUB OUTPUT: -10 dBu
- Output Impedance: 2 k ohms
- Recommended Load Impedance: 10 k ohms or greater
- Recording/Playback: Maximum Recording Time: Approximately 3 hours (stereo)
- Maximum Phrase Memory: 99
- Number of tracks: 3
- Data Format: WAV (44.1 kHz, 16-bit linear, stereo)
- Effect Types: Transpose, Flanger, Phaser, Pan, Tremolo, Slicer, Bend, Chorus, Robot, Female, Male, Gt->Bass, Filter, Delay, Lo-Fi, Distortion
- Rhythm Types: 83
USB Interface:
Hi-Speed USB (USB Mass Storage Class)
Hi-Speed USB (USB-AUDIO)
Pedals:
TRACK 1 REC/DUB/PLAY pedal
TRACK 2 REC/DUB/PLAY pedal
TRACK 3 REC/DUB/PLAY pedal
TRACK 1 STOP pedal
TRACK 2 STOP pedal
TRACK 3 STOP pedal
ALL START/STOP pedal
LOOP FX pedal
EXP 1 pedal
Sliders:
TRACK 1 slider
TRACK 2 slider
TRACK 3 slider
Knobs:
MASTER LEVEL knob
RHYTHM LEVEL knob
AUX knob
INST knob
MIC knob
Displays:
7 segments, 2 characters (LED)
16 characters, 2 lines (backlit LCD)

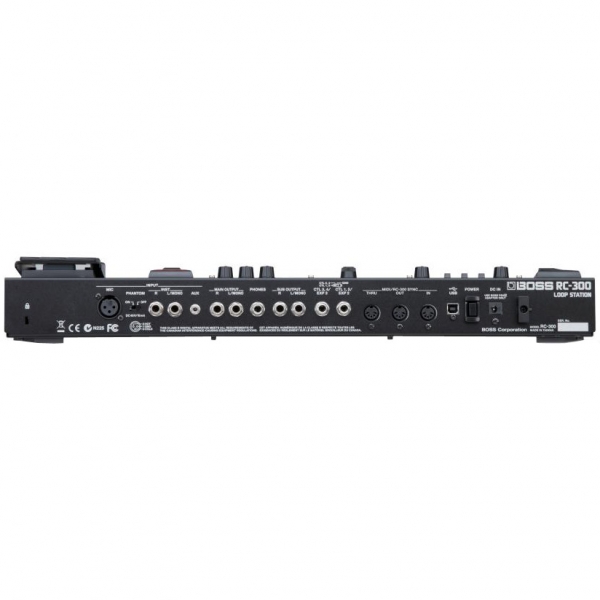

Connectors:
INPUT MIC jack: XLR type (balanced/phantom power: DC 48 V, 10 mA)
INPUT INST jacks (L/MONO, R): 1/4" phone type
INPUT AUX jack: Stereo miniature phone type
MAIN OUTPUT jacks (L/MONO, R): 1/4" phone type
SUB OUTPUT jacks (L/MONO, R): 1/4" phone type
PHONES jack: Stereo 1/4" phone type
CTL 1,2 / EXP 2 jack: 1/4" TRS phone type
CTL 3,4 / EXP 3 jack: 1/4" TRS phone type
USB connector
MIDI connectors (IN/OUT/THRU) (*)
DC IN jack (DC 9 V)
(*) MIDI synchronization is possible with other RC-300 devices or when RC-300 is set to master.
- Power Supply: DC 9 V (AC adaptor)
- Current Draw: Maximum 320 mA (DC 9 V)
Accessories:
- Owner's Manual
- AC adaptor
- USB cap
Options (sold separately):
- Footswitch (FS-5U, FS-6, FS-7)
- Expression Pedal (FV-500L, FV-500H, Roland EV-5)
- Euroguitar Reference : 19692
