Rcf EVOX JMIX9

The RCF EVOX JMIX9 is an all-in-one active column PA system combining professional sound reinforcement, powerful amplification, and integrated digital mixing in a compact and portable format. Designed for DJs, live bands, event technicians, and public speakers, it offers a complete solution capable of managing the entire audio chain without an external console.

Based on the acoustic platform of the EVOX J9, the JMIX9 also integrates an 8-channel stereo digital mixer, a color touchscreen, mobile app control, and Bluetooth® connectivity for audio streaming and wireless management.

With its 2100W Class-D amplifier and a maximum sound pressure level of 130dB SPL, this system guarantees powerful, precise sound reproduction perfectly suited for live performances, events, or mobile installations.

High-performance 3-way acoustic architecture

The EVOX JMIX9 employs an advanced acoustic configuration to ensure balanced and detailed reproduction across the entire frequency range.

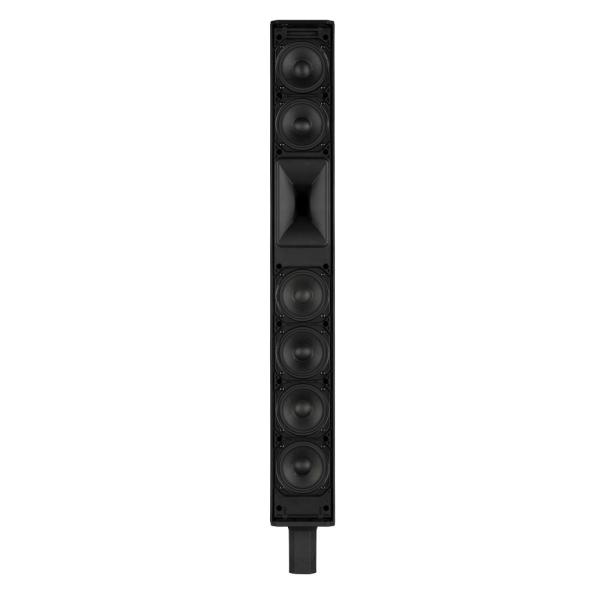

The speaker incorporates:

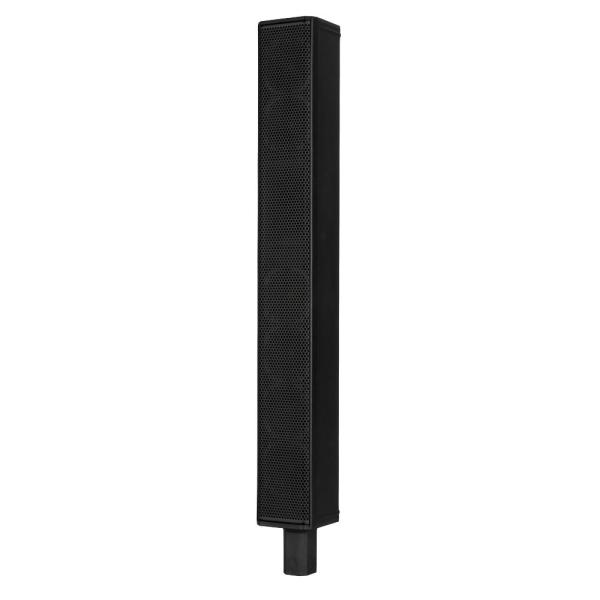

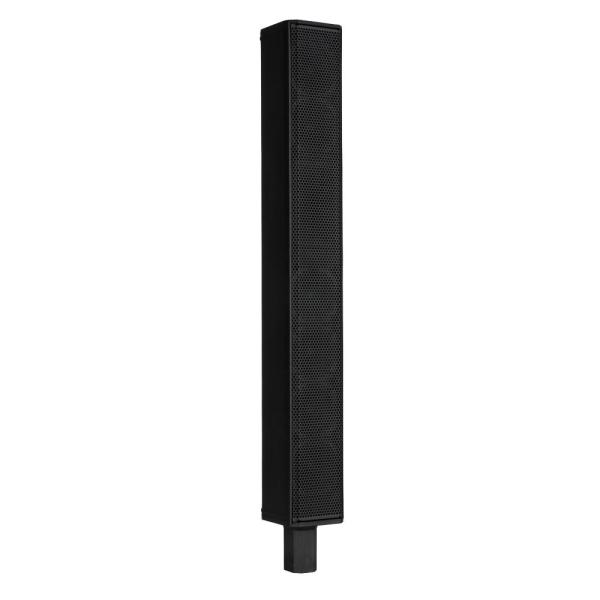

Six 3" neodymium drivers for the midrange

One 1.75" neodymium compression driver for the high frequencies

These drivers are coupled with a True Resistive Waveguide, providing wide and uniform sound coverage of 120° horizontally × 40° vertically, ideal for effectively covering the audience without loss of definition.

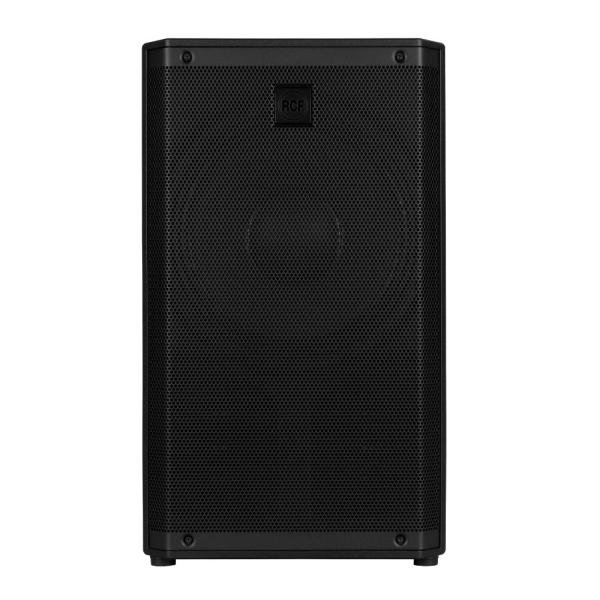

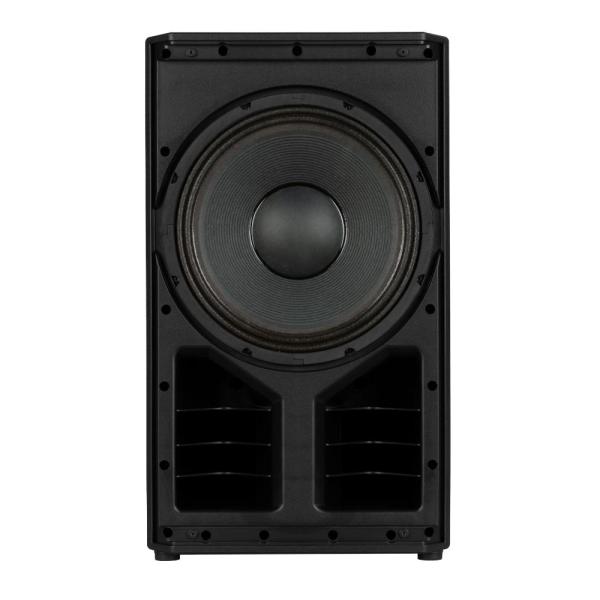

Low frequencies are reproduced by a high-power 12" woofer integrated into a bass-reflex enclosure, guaranteeing deep, dynamic, and controlled bass.

The frequency response extends from approximately 40 Hz to 20 kHz, ensuring faithful reproduction of both vocals and music.

2100W Amplification with Advanced DSP

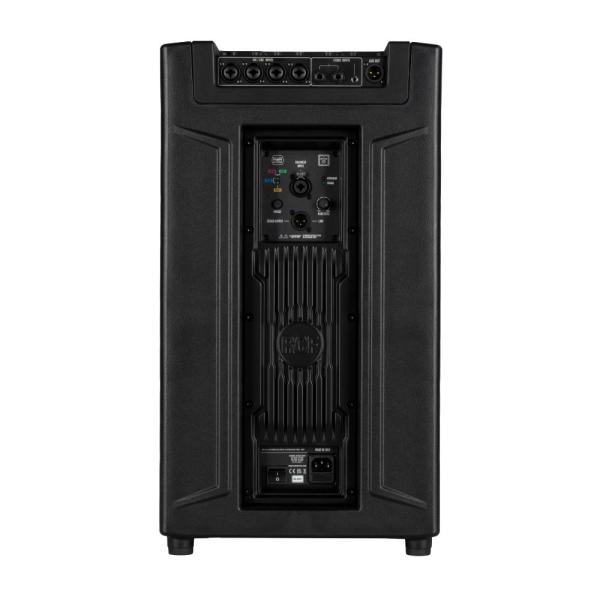

The system features a 2100W Class-D two-channel amplifier (approximately 700W for the highs and 1400W for the lows), delivering power and energy efficiency while maintaining a compact form factor.

Audio processing is based on an internal DSP incorporating several RCF technologies:

FiRPHASE: phase coherence optimization for more natural reproduction

Bass Motion Control: advanced low-frequency management

limiter and thermal/RMS protection for maximum reliability

Several DSP presets allow for quick adaptation of the sound system to the application:

Linear

Live

Club

Voice

Integrated 8-Channel Digital Mixer

The EVOX JMIX9's standout feature is its integrated 8-channel stereo digital mixer, offering a truly complete audio system in a single unit.

This mixer includes:

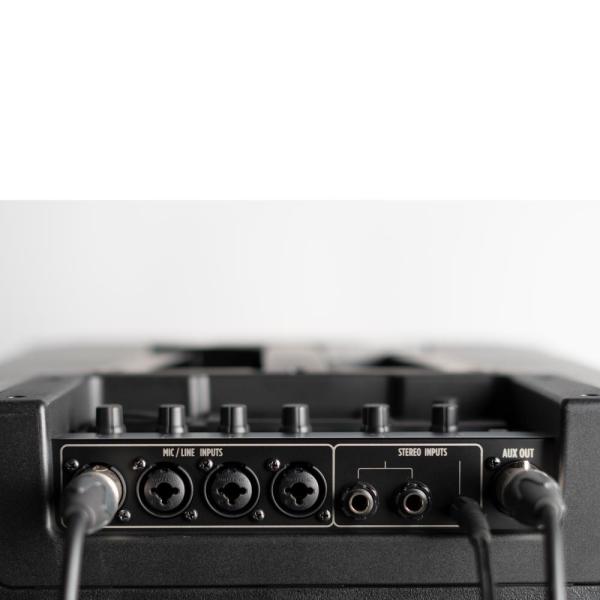

4 XLR-Jack combo mic/line inputs with +48V phantom power

Additional stereo line inputs for instruments or audio players

Bluetooth® audio for wireless streaming

Built-in stereo EQ, compression, and effects

Ducking and scene memory

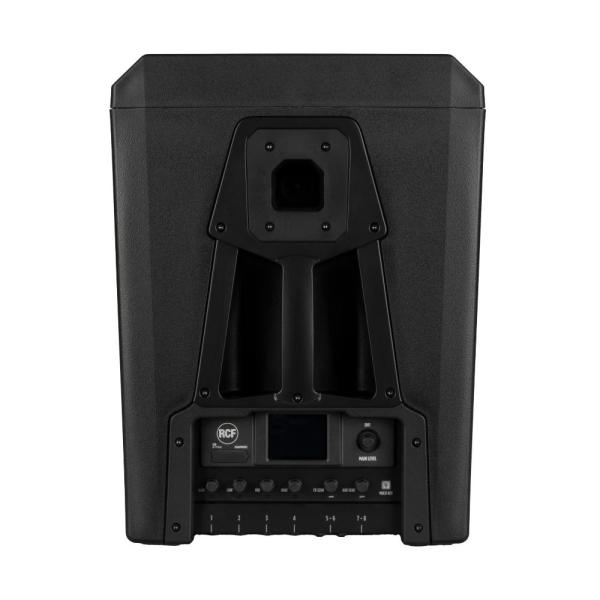

The interface is accessible via a 2.4" color touchscreen with encoders, or via the JMixRemote app for iOS and Android, allowing complete remote control of the system.

Portable design and all-in-one solution

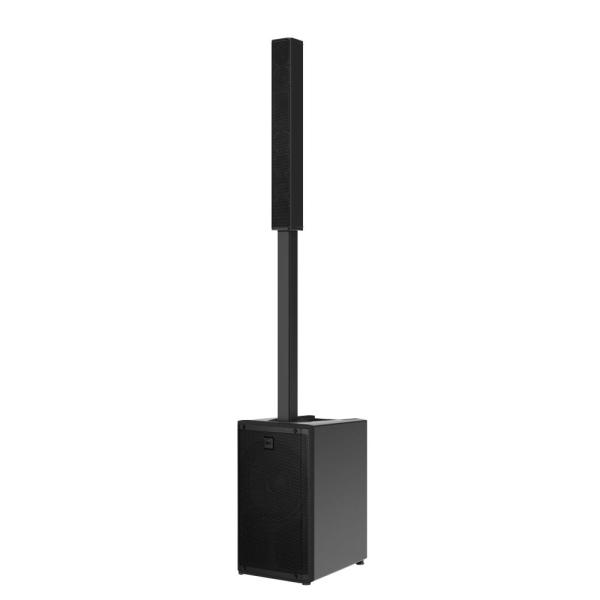

Designed for mobile performances, the RCF EVOX JMIX9 combines PA, amplification, and mixing in a single compact system, eliminating the need for external racks or consoles.

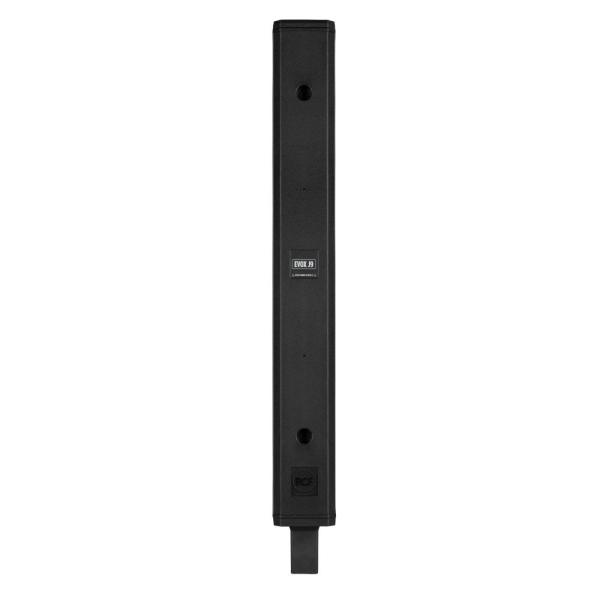

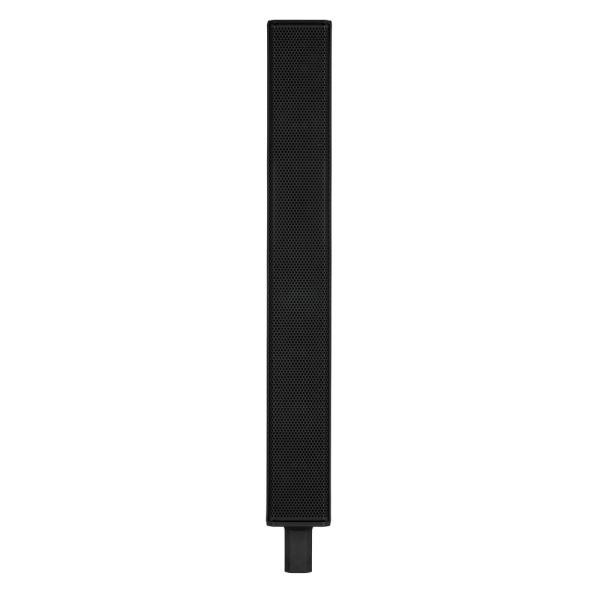

The column mounts quickly to the subwoofer via a robust aluminum spacer, and a padded cover is included to protect the column components during transport.

Its durable PP composite construction ensures lightness, reliability, and resistance to the rigors of touring and live events.
