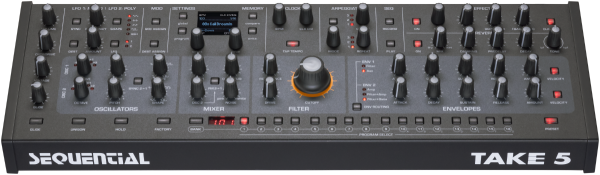

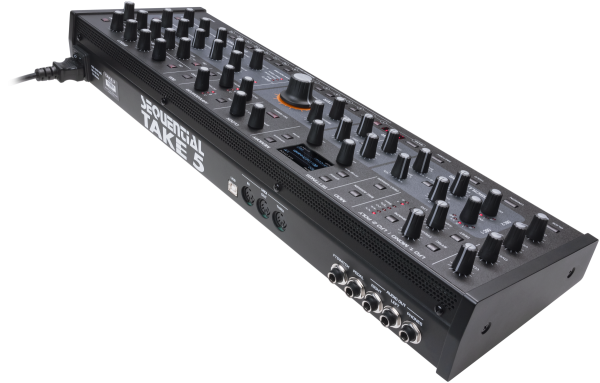

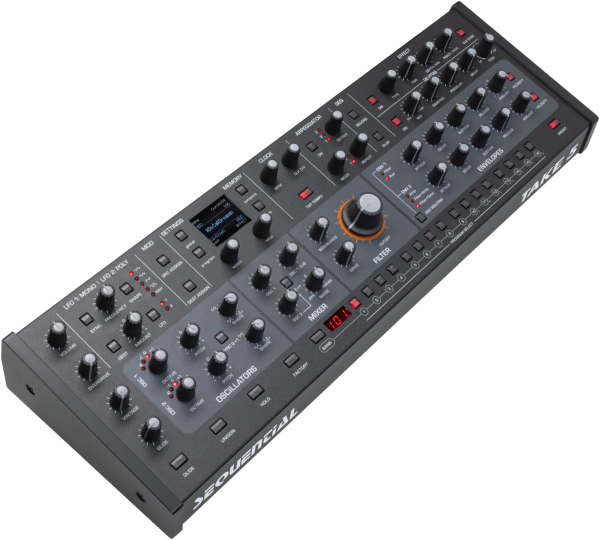

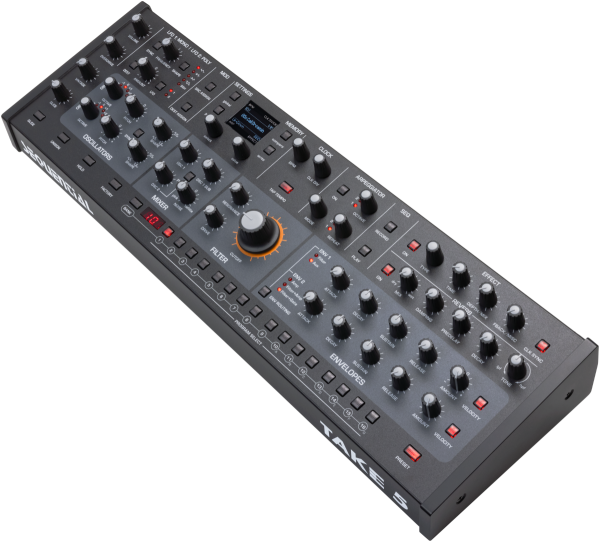

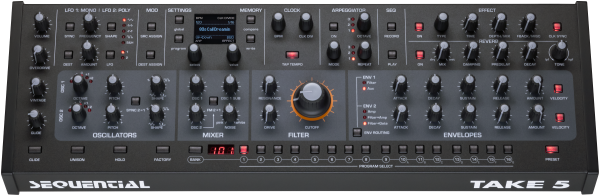

Sequential Take 5 MODULE
The Take 5 is a 5-voice polyphonic synthesizer from Sequential.
Building on the success of the keyboard version, the Take 5 desktop module features the same powerful analog oscillators and filters that capture the iconic warmth and depth of the Prophet-5, enhanced with modern digital effects and modulations.
The module delivers this highly sought-after sound in a compact, space-saving format, perfect for studio setups and live performances where portability and efficiency are essential.
The Take 5 is the ideal tool for getting started with subtractive synthesis, with everything you need to get started at your fingertips. It's easy to learn and powerful enough to grow with you. Don't be fooled by its size: with its modern modulations, effects, and powerful sound creation tools, the Take 5 lets you create exceptional sounds and offers great freedom of exploration.
The same features and legendary Prophet-5 sound as the keyboard version of the Take 5.
The convenience of a user interface with knobs and the same synthesis parameters accessible on the front panel.
Even more compact and easily portable - Take your Take 5 anywhere!
Oscillators
Two analog VCOs and one sub-oscillator per voice.
Continuously variable waveform (sine, sawtooth, variable-width pulse) per oscillator.
Oscillator sync and exponential FM.
Filter
Four-pole resonant low-pass filter per voice, inspired by the Prophet-5 Rev. 4.
Self-oscillation with resonance control.
Modulation
Two 5-stage loopable envelopes and two synced LFOs.
Full modulation matrix with 19 slots, 19 sources, and 64 destinations.
Vintage Potentiometer
Reproduces the characteristics of vintage synths by adding variations in component behavior between voices.
Effects
Dedicated reverb with damping, pre-delay, decay, and timbre.
Multi-effects with stereo delay, BBD delay, tape delay, chorus, flanger, phaser, ring mod, vintage rotary speaker cabinet, distortion, high-pass filter, and Lo-Fi.
Dedicated overdrive.
Performance Controls
Arpeggiator and polyphonic step sequencer.
Polyphonic portamento (glide).
Unison (monodic) mode with adjustable number of voices, from one to five.
Memories
256 user and 256 factory memories in 32 banks of 16 programs each.
Inputs/Outputs
Left and right audio output (2 x 1/4" jack).
Headphone output (stereo, 1/4" phone jack).
MIDI in, out, and thru ports.
USB port for bidirectional MIDI communication.
Expression pedal input.
Sustain pedal/footswitch input.
Power Supply
IEC AC inlet for internal power supply.
Universal operation at voltages between 100 and 240 volts, 50 and 60 Hz; 14 watts maximum power consumption.
Physical Specifications
53.3 cm x 17.8 cm x 8.9 cm (21" L x 7" W x 3.5" H)
Weight: 3.08 kg (6.8 lbs)
