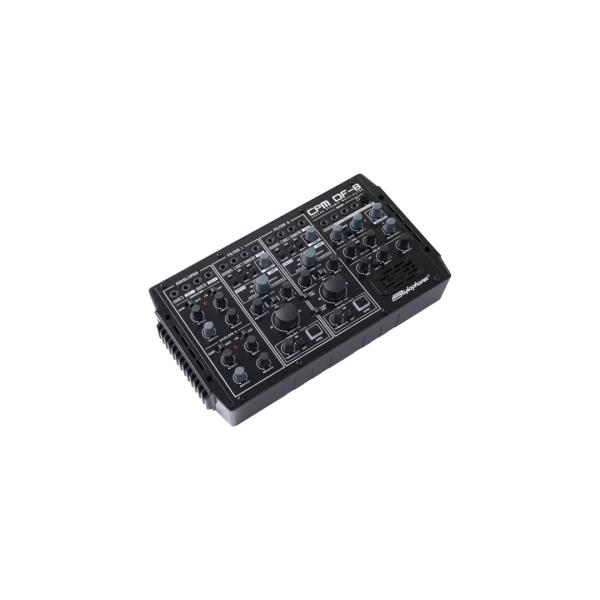

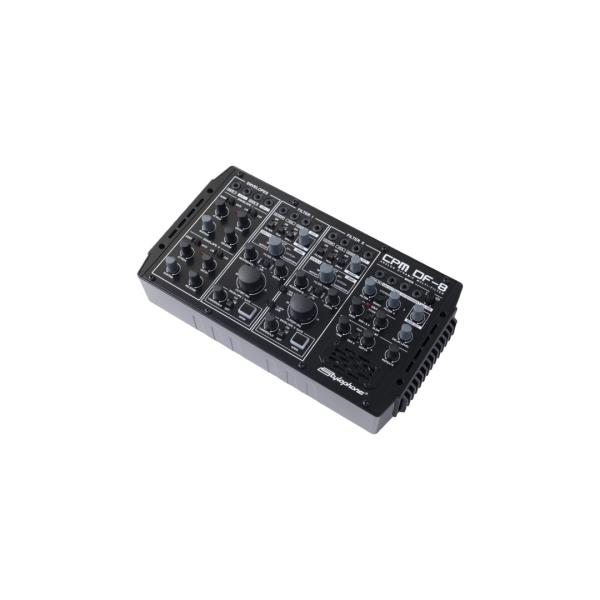

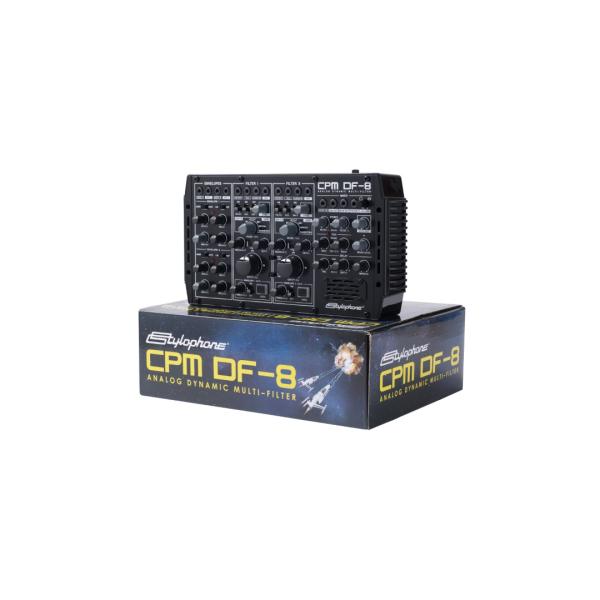

Stylophone DF-8

The Stylophone DF-8 is a next-generation analog filter unit, combining the finesse of a classic 24 dB/octave 2045 Lowpass filter with the wild personality of Stylophone's exclusive GEN R-8 filter. Nicknamed “Beauty and the Beast,” it offers an exceptionally rich sonic palette.

The DF-8 is more than just a filter box: it's a true sound design tool. It combines two independent filter channels, each featuring eight filter types, full ADSR envelopes, and multiple trigger modes.
With its white noise sources, adjustable slew sample-and-hold module, and PT2399 analog delay, the DF-8 can go from the smoothest atmospheric textures to the most extreme experimental distortions.

Designed in Stylophone's typical CPM format, it's portable, stackable, and modular, perfect for both studio and stage use.

Key Features

Two analog filter channels:

2045 Lowpass (24 dB/octave) for smooth and precise sounds.

GEN R-8 (12 dB/octave) for aggressive and dynamic textures.

Eight filter types per channel, including: Lowpass, Bandpass, Highpass, Notch, Bandpass+, Band Reject+, and Notch+.

Full ADSR envelopes with multiple trigger modes: CV gate, audio signal, manual button, or auto-repeat loop (LFO mode).

Integrated sound sources:

Two white noise generators with adjustable volume.

A modulable sample-and-hold with adjustable slew.

A PT2399 analog delay with modulation.

Flexible power supply:
Runs on AA batteries, external power supply, or via Eurorack bus.

Stereo audio outputs + integrated 2W speaker for immediate listening.

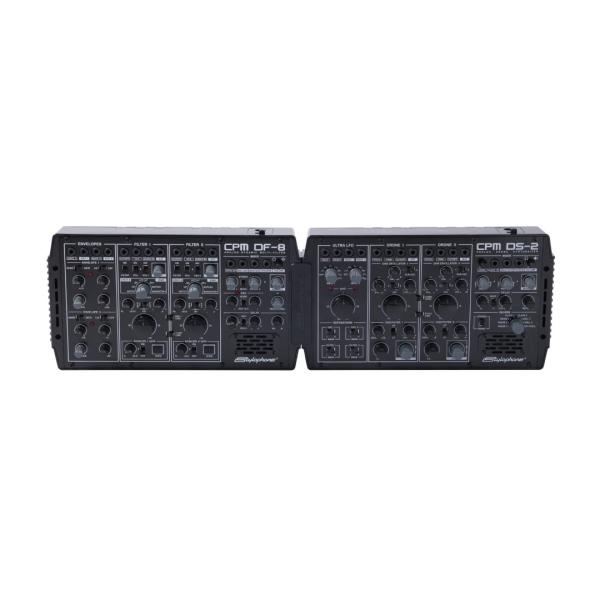

Stylophone CPM enclosure with side ribs:
Allows multiple units to be stacked together to create a true modular system.
