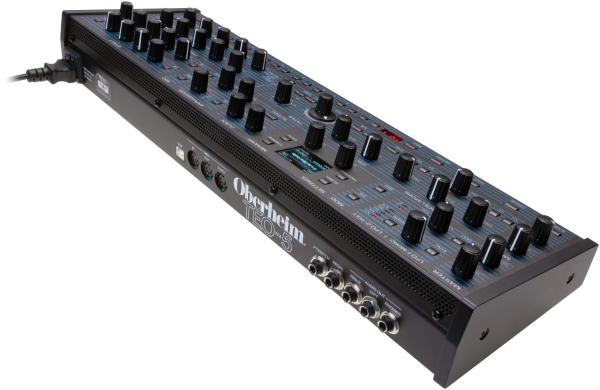

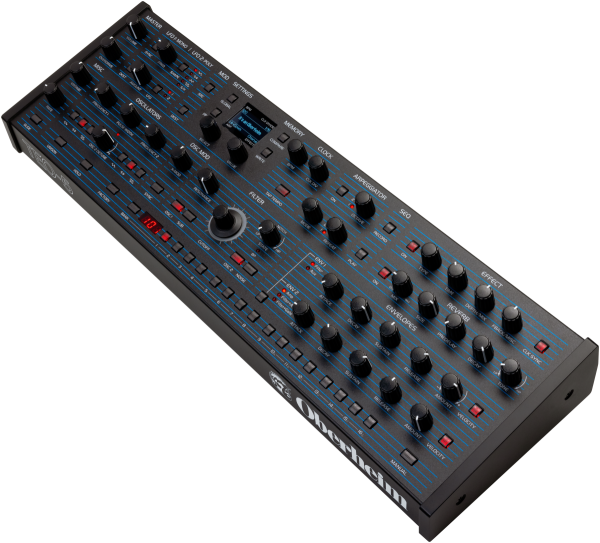

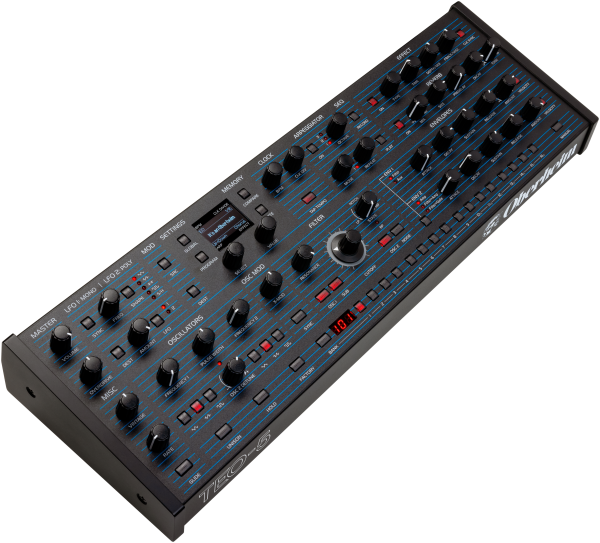

Tom oberheim TEO-5 MODULE
Creativity in a Compact Format: Reinvent Your Studio with the TEO-5 Desktop
The TEO-5 Desktop Module is a powerhouse for musicians and producers seeking the iconic Oberheim sound in a compact format. This new addition to the Oberheim synthesizer line features the same sounds and synthesis functions as the renowned TEO-5 keyboard.
The TEO-5 features true analog oscillators and the legendary SEM™ multi-mode filter, allowing users to recreate classic Oberheim sounds that have influenced music for decades. With numerous modulation options, including linear FM, Through-Zero, and modern effects, the TEO-5 Desktop Module opens up new sonic horizons to explore.

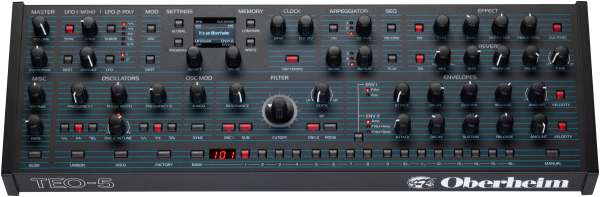

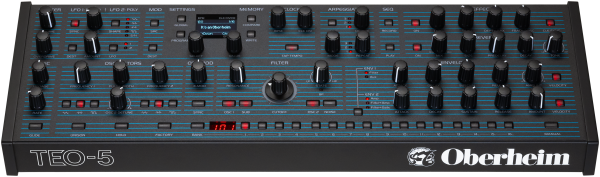

The intuitive knob-and-tap experience of its keyboard counterpart is replicated in the TEO-5 Desktop Module. All synthesis functions remain easily accessible on the front panel, allowing users to easily modify their sound in real time. This practical approach ensures that musicians can quickly achieve the perfect Oberheim sound for their music.
Ideal for synthesizers with limited studio space, the TEO-5 Desktop Module offers all the exceptional presets and synthesis controls of the keyboard version in half the size. This compact design allows the TEO-5 Desktop Module to fit seamlessly into any creative work environment, making it a versatile addition to any setup.
5-voice polyphonic synthesizer with VCO/VCF
Two analog VCOs per voice
Stackable waveforms per oscillator: triangle, sawtooth, variable pulse
Oscillator 1 syncable to oscillator 2
Dedicated X-Mod control on the front panel for linear FM synthesis
Keyboard tracking can be disabled per oscillator
White noise generator integrated into the mixer before the filter
STATE VARIABLE FILTER
Classic SEM filter with bandpass mode
Continuous morphing potentiometer between lowpass, notch, and highpass
Bipolar filter envelope level
Velocity-sensitive envelope modulation
Keyboard tracking
FILTER ENVELOPE
5-segment envelope generator (DADSR)
Envelope level Velocity-modulated
Freely assignable modulation destinations
AMPLIFIER ENVELOPE
5-segment envelope generator (DADSR)
Velocity-modulated envelope level
LOW-FREQUENCY OSCILLATORS (LFOs)
Five waveforms: triangle, sawtooth, reverse sawtooth, square, random (sample & hold)
Break-time sync
Initial modulation level control
Freely assignable modulation destinations
MODULATION MATRIX
19 slots, 19 sources, 64 destinations
Flexible architecture allows almost any modulation path, including audio frequency
VINTAGE POTENTIOMETER
Simulation of the random behavior of components in classic analog synths for each voice
AFTERTOUCH
Mono aftertouch with bipolar control
Modulation destinations assignable
CLOCK
Internal clock with tap tempo function
Tempo display
MIDI sync
ARPEGIATOR
Available rhythmic divisions: sixteenth note, eighth note triplet, eighth note, dotted eighth note, quarter note
Adjustable range: 1, 2, or 3 octaves
Modes: ascending, descending, forward and backward, random, playing order
SEQUENCER
Polyphonic step sequencer, up to 64 steps, with ties and rests
EFFECTS
Dedicated reverb with size, pre-delay, decay, and timbre controls
Multi-effects: stereo delay, BBD delay, tape delay, chorus, flanger, vintage rotary speaker, distortion, high-pass filter, lo-fi effect, Oberheim phase shifter emulations, and ring modulator
Dedicated overdrive
PERFORMANCE CONTROLS
Hold switch for sustaining notes
Polyphonic glide (portamento)
Monodic unison mode with selection of 1 to 5 voices and multiple playing modes
Factory mode can be disabled for direct access to panel settings
PATCH MEMORY
256 user and 256 factory locations, organized into 32 banks of 16 programs
Direct access to programs, including a dedicated button for the 16 active programs

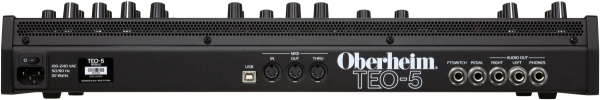

CONNECTIONS
Left and right audio outputs (1/4" jacks)
Stereo headphone output (1/4" jack)
MIDI In, MIDI Out, MIDI Thru port
USB port for bidirectional MIDI communication
Expression pedal input
Sustain pedal or footswitch input
POWER SUPPLY
IEC power connector for internal power supply
Universal voltage 100–240 V, 50/60 Hz
Maximum power consumption: 14 watts
DIMENSIONS AND WEIGHT
Dimensions: 53.3 × 17.8 × 8.9 cm (21? × 7? × 3.5?)
Weight: 3.08 kg (6.8 lbs)
