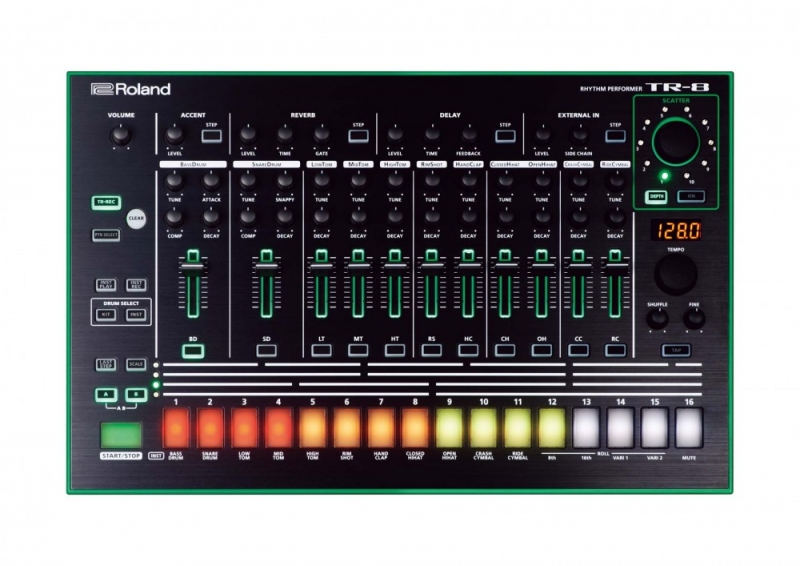

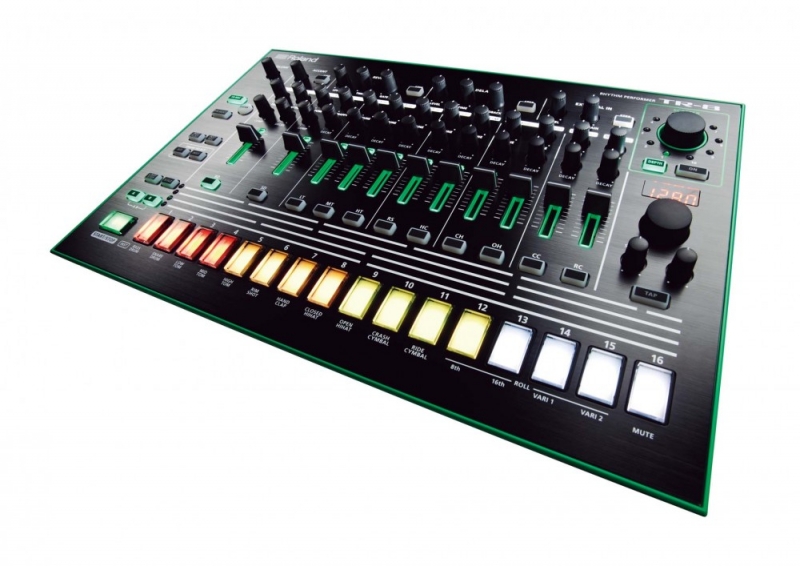

Roland Aira TR-8
This product is not available anymore
ABOUT THE PRODUCT
The Roland TR-8 is a performance rhythm machine that melds the legendary sound and vibe of the TR-808 and TR-909 with features and functions for the modern age.
FEATURES
- User Drum Kits: 16
- User Patterns: 16
- Steps per 1 measure: 1 – 16 steps x 2 (Variation A/B)
- Tempo: 40 – 300
Instruments & Controls
- BASS DRUM: LEVEL, TUNE, ATTACK, COMP, DECAY, INST SELECT
- SNARE DRUM: LEVEL, TUNE, SNAPPY, COMP, DECAY, INST SELECT
- LOW TOM, MID TOM, HIGH TOM, RIM SHOT, HAND CLAP, CLOSED HIHAT, OPEN HIHAT, CRASH CYMBAL, RIDE CYMBAL: LEVEL, TUNE, DECAY, INST SELECT
Effects and Controls
- ACCENT: LEVEL, STEP
- REVERB: LEVEL, TIME, GATE, STEP
- DELAY: LEVEL, TIME, FEEDBACK, STEP
- EXTERNAL IN: LEVEL, SIDE CHAIN, STEP
- Mode: TR-REC, PATTERN SELECT, INST PLAY, INST REC, DRUM KIT SEL, DRUM INST SEL
Controllers
- VOLUME knob
- SCATTER knob
- TEMPO knob
- FINE knob
- SHUFFLE knob
- PADS: 16
- MODE buttons: 6
- CLEAR button
- VARIATION buttons: A, B
- SCALE button
- LAST STEP button
- START/STOP button
- SCATTER ON button
- SCATTER DEPTH button
- TAP button
- Power Switch (Rear)
- Display: 7 segments, 4 characters (LED)
- Effects: REVERB, DELAY, SIDE CHAIN
- Scatter: Types: 10
- Nominal Input Level: -10 dBu
- Input Impedance: 100 k ohms
- Nominal Output Level: -10/+4 dBu (Selectable)
Output Impedance
- MIX OUT, ASSIGNABLE OUT: 1 k ohm
- PHONES: 130 ohms

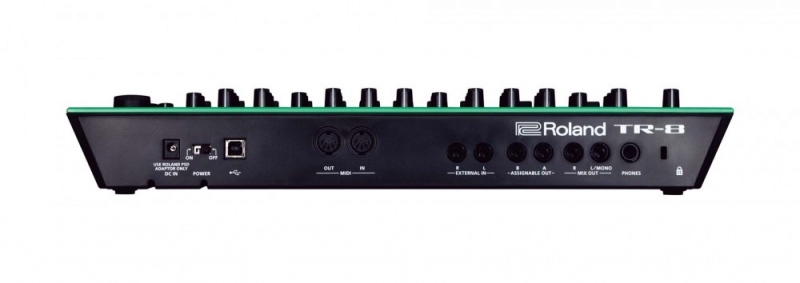

Connectors
- PHONES jack: 1/4-inch stereo phone type
- MIX OUT (L/MONO, R) jacks: 1/4-inch phone type
- ASSIGNABLE OUT (A, B) jacks: 1/4-inch phone type
- EXTERNAL IN (L, R) jacks: 1/4-inch phone type
- USB port: USB type B (Audio, MIDI)
- DC IN jack
- USB: Audio, MIDI
- Power Supply: AC adaptor
- Current Draw: 1,000 mA
Accessories
- Owner's manual
- Leaflet "USING THE UNIT SAFELY"
- AC adaptor
Size and Weight:
Width
- 400 mm
- 15-3/4 inches
Depth
- 260 mm
- 10-1/4 inches
Height
- 65 mm
- 2-9/16 inches
Weight
- 1.9 kg
- 4 lbs. 4 oz.
- Euroguitar Reference : 34986
