Udo audio Super 6 Desktop LTD black
ABOUT THE PRODUCT
The UDO Audio Super 6 Desktop LTD Black is a high-end polyphonic hybrid synthesizer combining digital technology and analog circuitry for a rich, expressive and modern sound palette.
It takes the sonic heart of the famous Super 6 but in a compact desktop format, built entirely in a sturdy metal chassis with black limited-edition finishes.
Designed for demanding musicians and producers, this module offers high expressivity, unique binaural vocal architecture and intuitive control without complex menus.
It can be used on a desk, integrated into a 19" rack (optional brackets) or mounted on a VESA bracket.
FEATURES
Architecture and Synthesis
Hybrid digital/analog synthesizer
Polyphony: 12 voices
Binaural architecture per voice
FPGA (DDS) digital oscillators
Oscillator 1 with Super-DDS and wavetable support
Oscillator 2 with PWM, sync, and cross-modulation
Integrated noise generator
24 dB analog low-pass filter with resonance
Switchable analog drive
Static high-pass filter
Modulation and Control
2 ADSR envelopes
2 LFOs
Assignable modulation matrix
Unison mode
MPE compatibility and polyphonic aftertouch via external controller
Performance and Effects
Integrated arpeggiator
Step sequencer
24-bit digital stereo effects (chorus, delay)
128 user preset memories

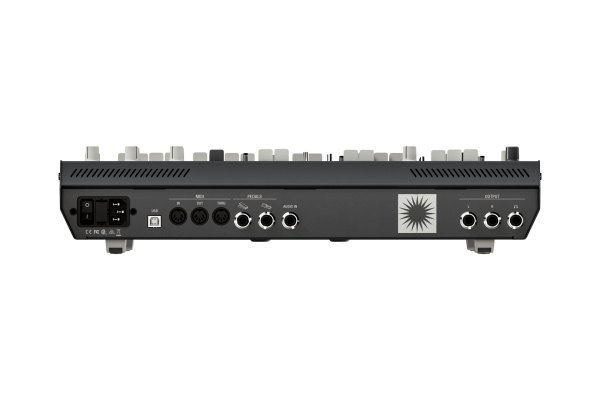

Connectivity
Left/right stereo audio outputs
Headphone jack output 6.35 mm
Audio input with envelope triggering
MIDI In / Out / Thru
USB-B port (MIDI, updates, preset management)
Inputs for sustain and expression pedals
Construction and ergonomics
Robust metal chassis
Compact desktop form factor
Integrated tilting feet
VESA mount compatible
19" rack mountable (brackets sold separately)
Dedicated interface for physical controls, no screen
Dimensions and weight
Approximate dimensions: 452 × 293.5 × 103 mm
Approximate weight: 5.5 kg
Euroguitar Reference : 120671
