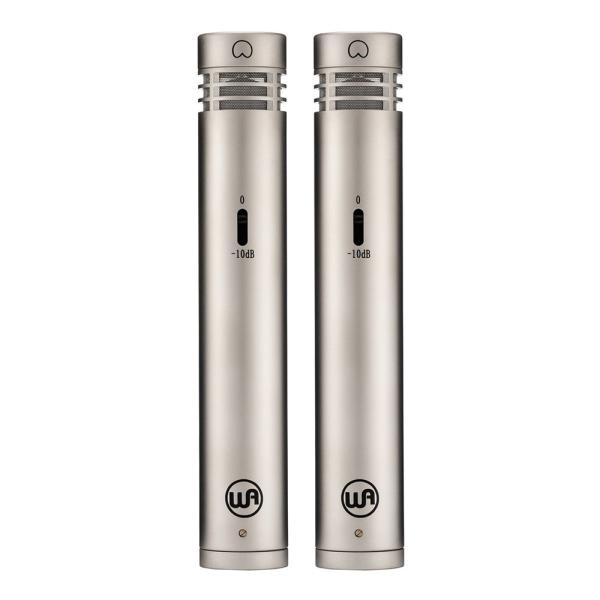

Warm audio WA-84-OC-N-ST Nickel
The Warm Audio WA-84-OC-N-ST Nickel is a matched pair of small-diaphragm condenser microphones with transformers and an elegant nickel-plated finish. Supplied with two cardioid and two omnidirectional capsules, they offer great flexibility for recording and miking.
Designed around custom vintage capsules, the WA-84s respect classic design techniques and use carefully selected components to deliver warm, detailed and natural sound. Their fully discrete Class A architecture incorporates CineMag USA transformers, Wima capacitors and Fairchild transistors, ensuring a rich, stable and musical signal.
Designed to meet the demands of professional and home studios, as well as live and broadcast environments, the WA-84 is at home on a wide range of sources: acoustic and electric guitars, bass, drums, piano, strings, brass and wind instruments, with excellent definition and stereo coherence.
Interchangeable capsules: cardioid and omnidirectional
Custom vintage capsules
Class A design, fully discrete signal path
CineMag USA transformers
Fairchild transistors
Wima capacitors
Pattern patterns: cardioid / omnidirectional
Power supply: 48V phantom power
Frequency response: 20 Hz – 20 kHz
Sensitivity: -39 dB (11 mV/Pa at 1 kHz)
Output impedance: 200 Ω
Attenuation: 0 dB / -10 dB
Maximum SPL: 123 / 133 dB (0 / -10 dB, 0.5% THD)
Signal-to-noise ratio: 78 dBA
Equivalent noise level: 16 dBA
Dynamic range: 107 dBA
Connectivity: Gold-plated 3-pin XLR connectors
Included accessories
2 microphone clips
2 shock mounts
2 windscreens
1 carrying case
Dimensions & weight
Dimensions (per microphone): Ø 22 mm x 132 mm
Weight of the pair (microphones only): 244 g
Euroguitar Reference : 109452
