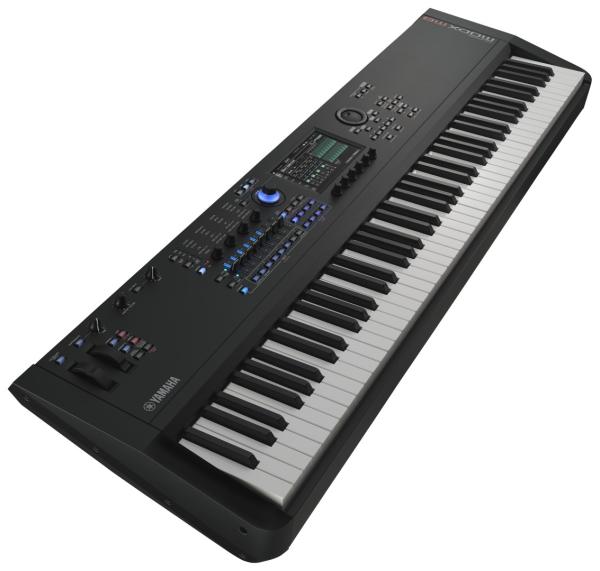

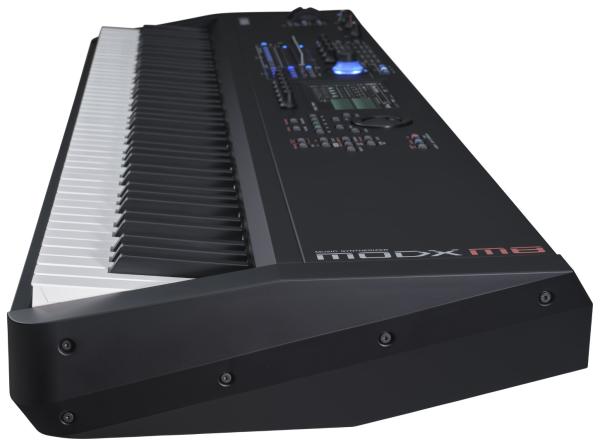

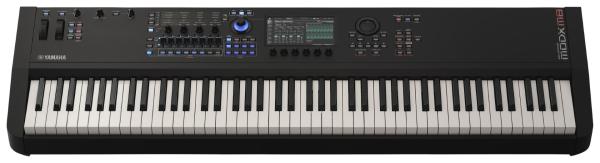

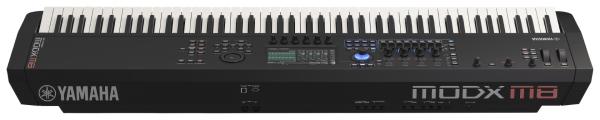

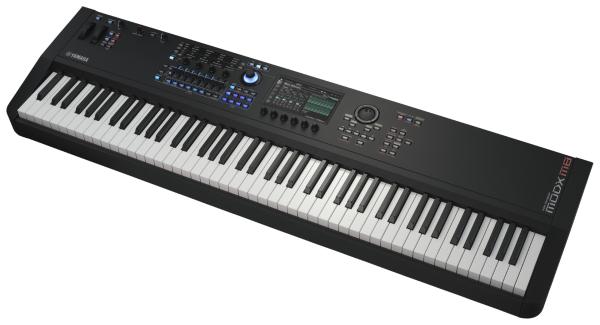

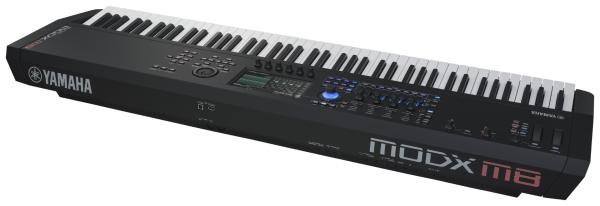

Yamaha MODX M8
The Yamaha MODX M8 is the flagship model of the MODX M series. Designed for pianists, composers, and performers, it combines power, expressiveness, and durability in a high-end stage instrument.
Thanks to its GHS (Graded Hammer Standard) action, each key reproduces the natural feel of an acoustic piano: the bass notes offer firm resistance, while the treble notes remain light and responsive. This balanced touch allows for nuanced and fluid playing, ideal for demanding pianists. Its robust chassis and metal sides ensure exemplary durability, ready for both the stage and the studio.
Under the hood, the MODX M8 features three complementary sound engines:
AWM2, for detailed and realistic acoustic sounds, with 128 voices of polyphony and 10.7 GB of internal waveforms.
FM-X, which leverages 8-operator FM synthesis for rich and complex harmonic textures.
AN-X, which recreates the warmth and power of analog synthesizers thanks to three oscillators and a noise generator.
These three engines work in perfect synergy thanks to the Motion Control Synthesis Engine, which synchronizes filters, envelopes, and modulations for highly precise real-time control.
The MODX M8 features a 7-inch TFT color touchscreen, a clear and intuitive interface, and expressive physical controllers: Super Knob, eight illuminated faders, assignable potentiometers, and eight Scene Switches. This seamless design allows for instant navigation and total control over the sound.
With its 3,427 built-in performances, 10,922 arpeggios, and 256 pre-programmed Live Sets, the MODX M8 offers a huge, ready-to-use sound library. The 16-track sequencer and multiple built-in effects (reverb, EQ, inserts, masters) make it a true mobile studio.
The MODX M8 integrates seamlessly into your digital environment via multi-channel USB and MIDI 2.0. The included Cubase AI software lets you record, edit, and mix your compositions, while the ESP (Expanded Softsynth Plugin) replicates the synthesizer as a full software version in your DAW, for seamless performance between stage and studio.
Sensitivity: Yes (Initial Touch, precise dynamic response)
Polyphony: Up to 268 voices (AWM2: 128, FM-X: 128, AN-X: 12)
Sound engines:
AWM2: 128 voices, 128 elements per part, 10.7 GB of internal waves, 1.9 GB of user samples
FM-X: 8 operators, 88 advanced FM synthesis algorithms
AN-X: 3 oscillators, noise generator, vintage analog sounds
Motion Control Synthesis Engine: Ultra-expressive real-time control
Performance: 3,427 presets, 256 Live Sets, 2,048 user Live Sets
Sequencer: 16 tracks, 128 patterns, 128 songs
Arpeggiator : up to 8 simultaneous parts, 10,922 presets, 256 users
Built-in effects: 13 reverbs, 91 variations, 91 inserts (A & B), 28 masters
EQs: 5-band master, 2 or 3-band part EQ
Physical controls:
8 faders with LEDs
4 assignable potentiometers
1 Super Knob
2 assignable switches
8 Scene Switches
Pitch bend and modulation wheel
Portamento buttons (Switch and Time)
Display: 7" (178 mm) TFT color touchscreen
Connections:
Audio outputs L/Mono & R: 2x 6.35 mm TRS jacks
Audio inputs A/D L/Mono & R: 2x 6.35 mm TRS jacks
Headphone output: 6.35 mm TRS jack
MIDI In/Out: 2x 5-pin DIN
Pedal Inputs: 4x 6.35 mm TRS jacks (Volume, Sustain, Footswitch, Expression)
USB Ports: Type A and B (USB to Device / USB to Host)
Software Compatibility: Cubase AI (included), Expanded Softsynth Plugin (ESP)
Dimensions: 1310 × 391 × 152 mm
Weight: 13.6 kg
Color: Black
Power Supply: AC adapter (included)
Included Accessories: Quick Start Guide, AC adapter, Cubase AI & ESP download code
Euroguitar Reference : 119539
